Group 8W-33 (Vehicle Speed Control System)
Group 8W-33 (Vehicle Speed Control System)

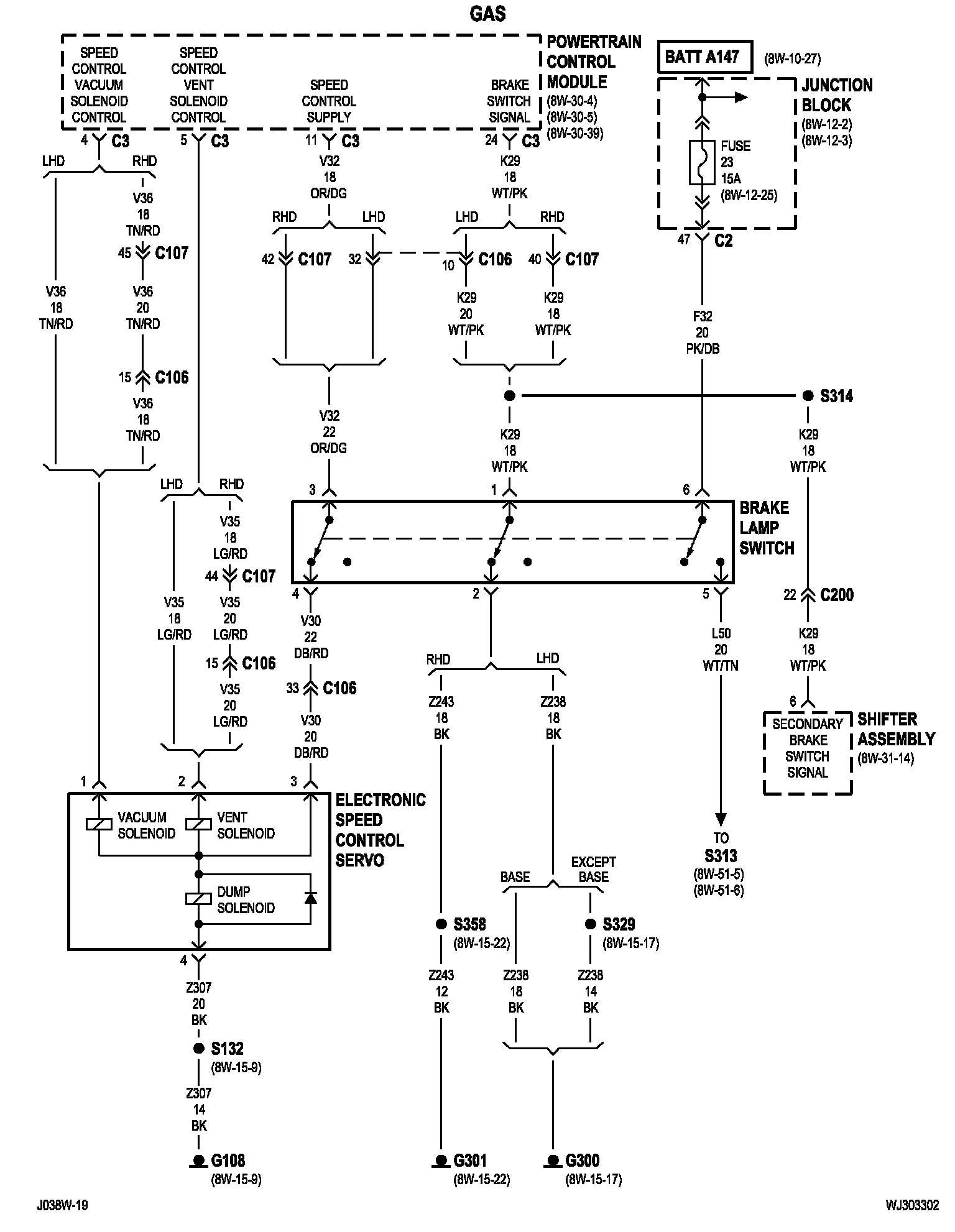

8w-33-2:

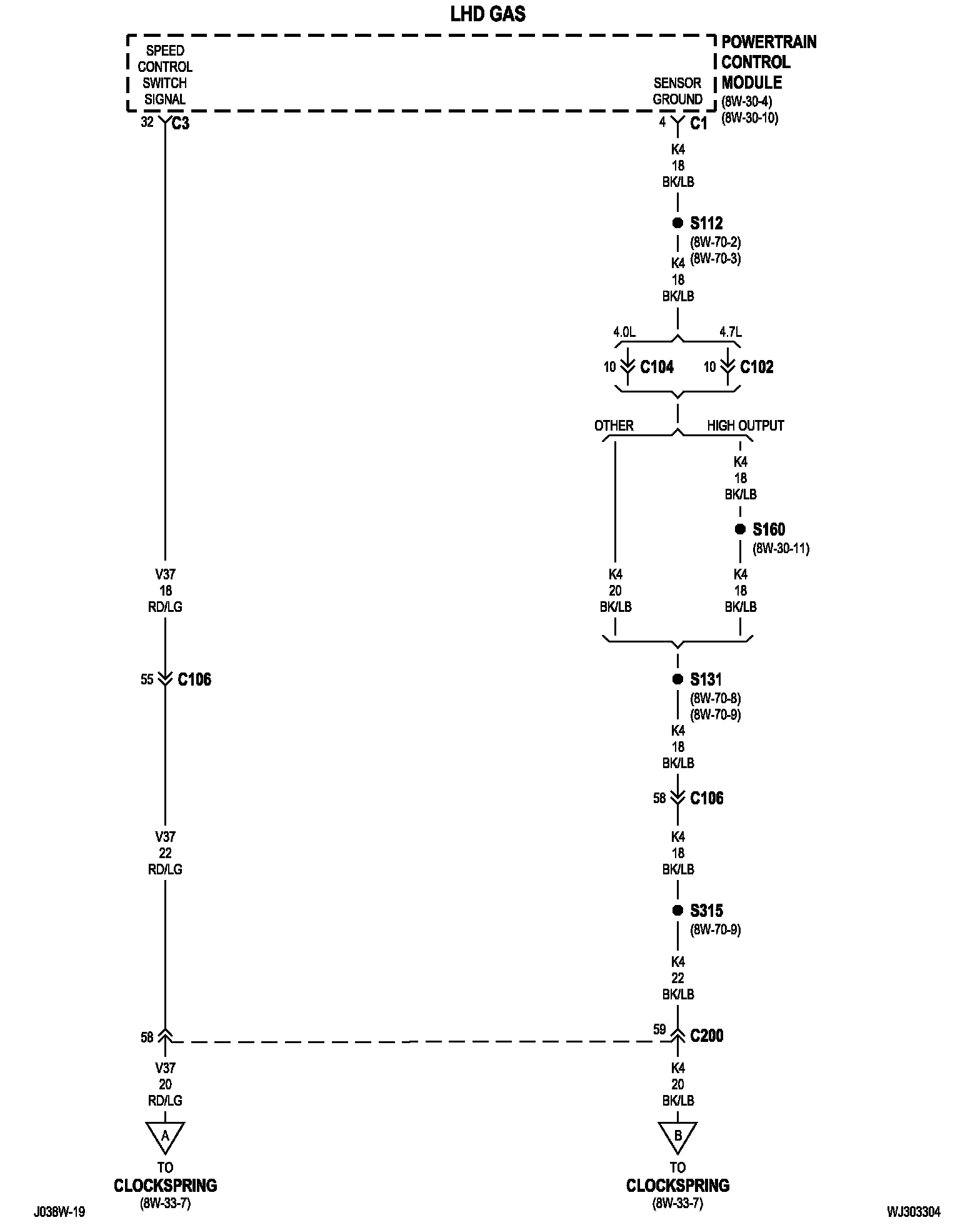

8w-33-4 (LHD):

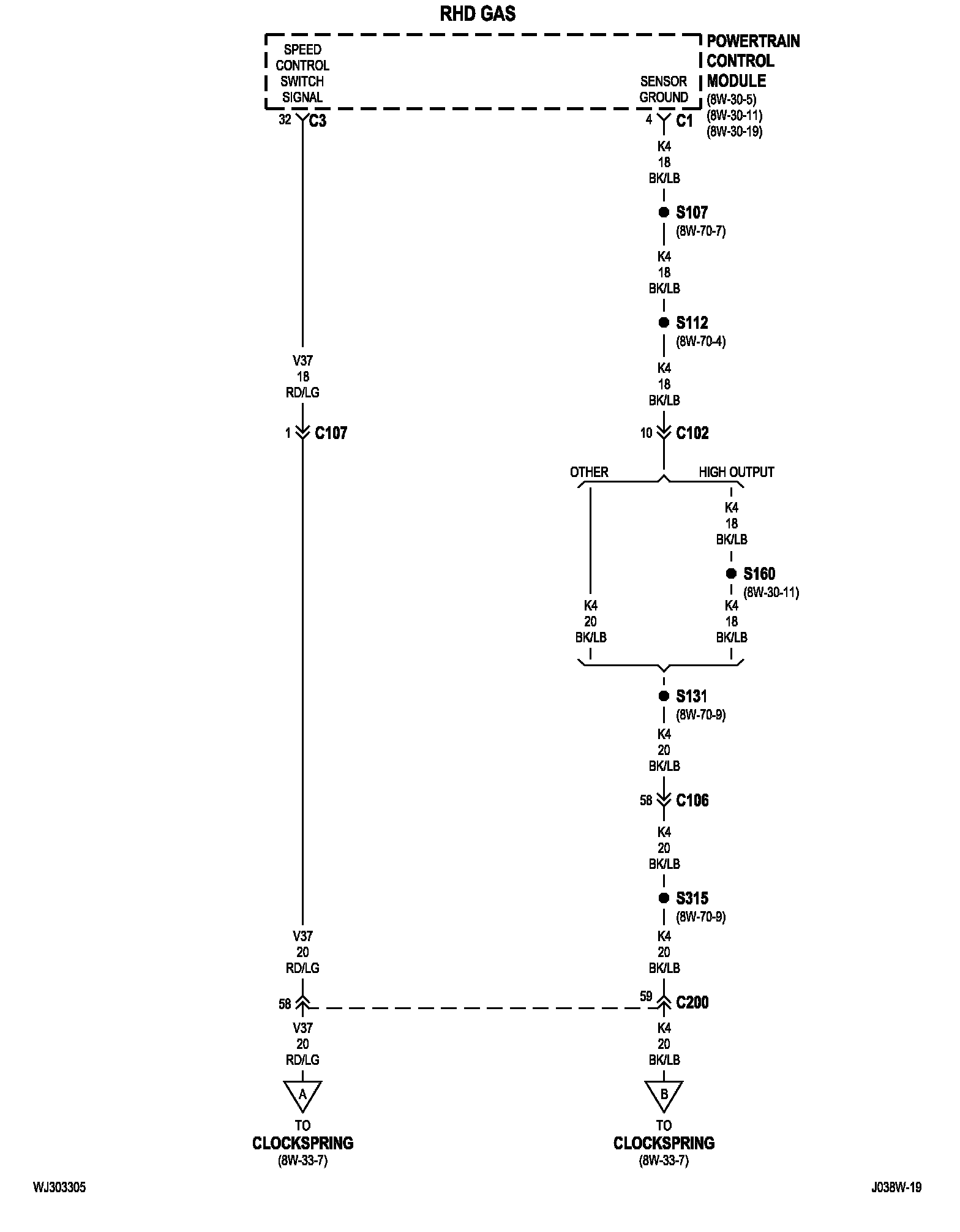

8w-33-5 (RHD):

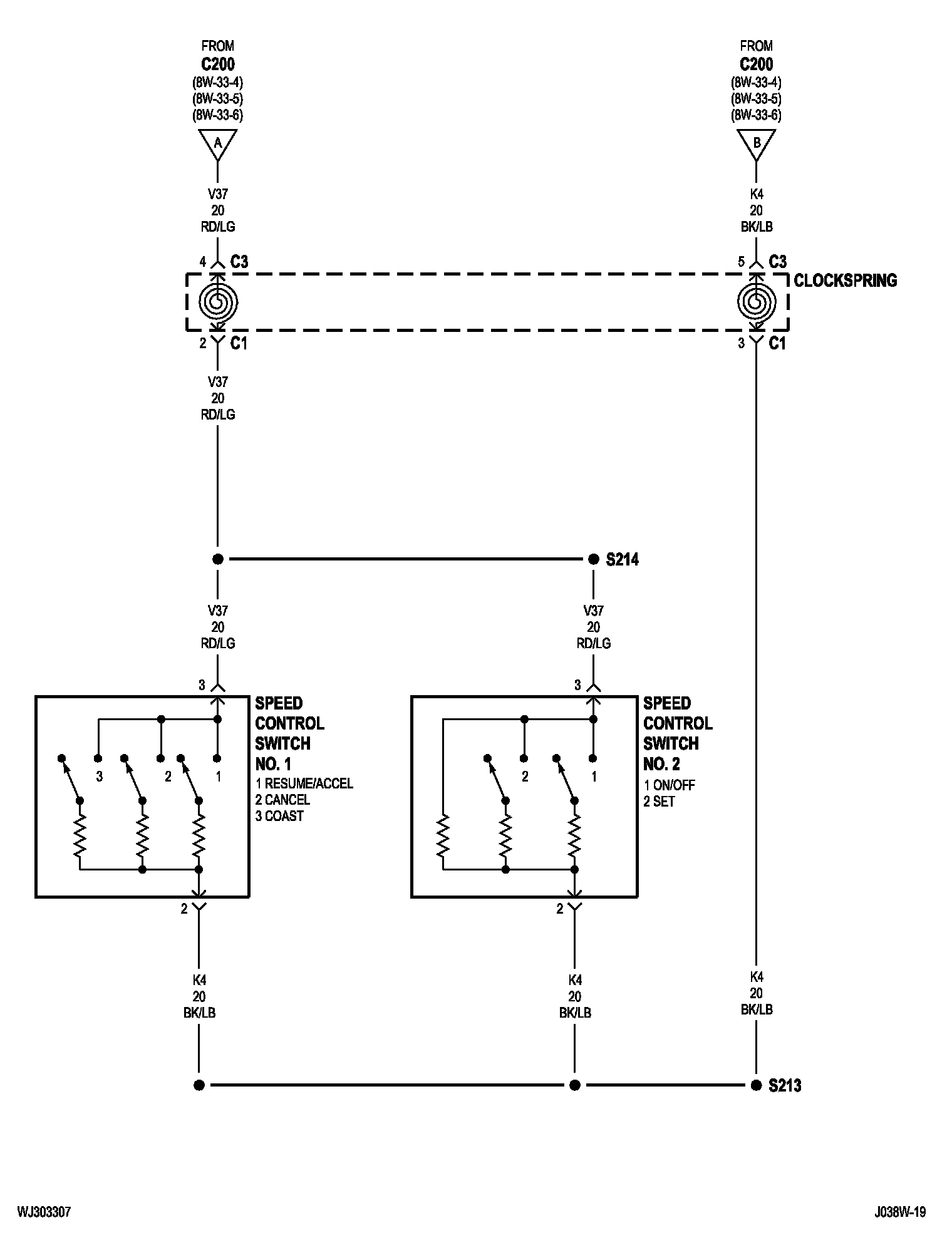

8w-33-7:
