Group 8W-18 (Bus Communications)
Group 8W-18 (Bus Communications)

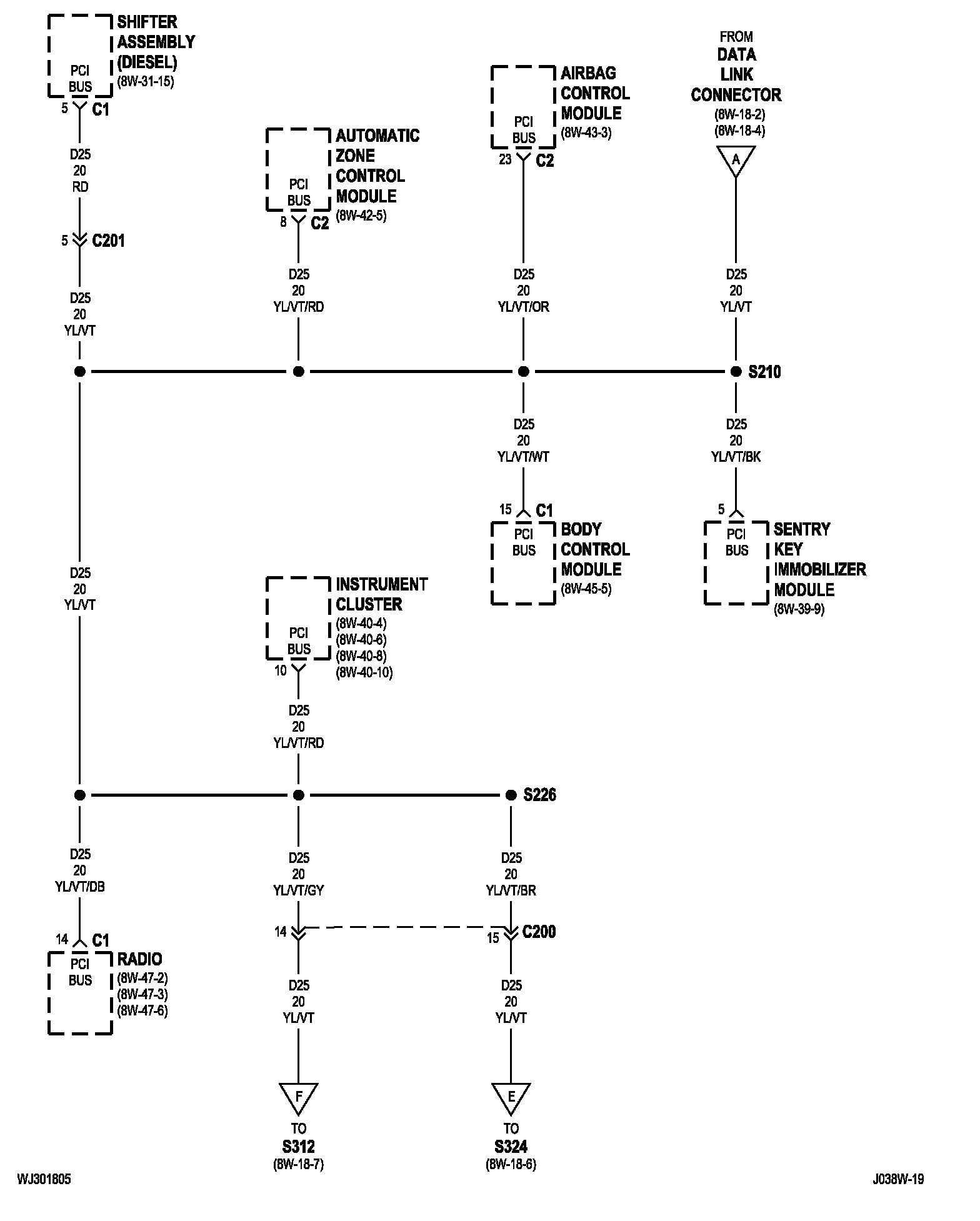

8w-18-2 (LHD):

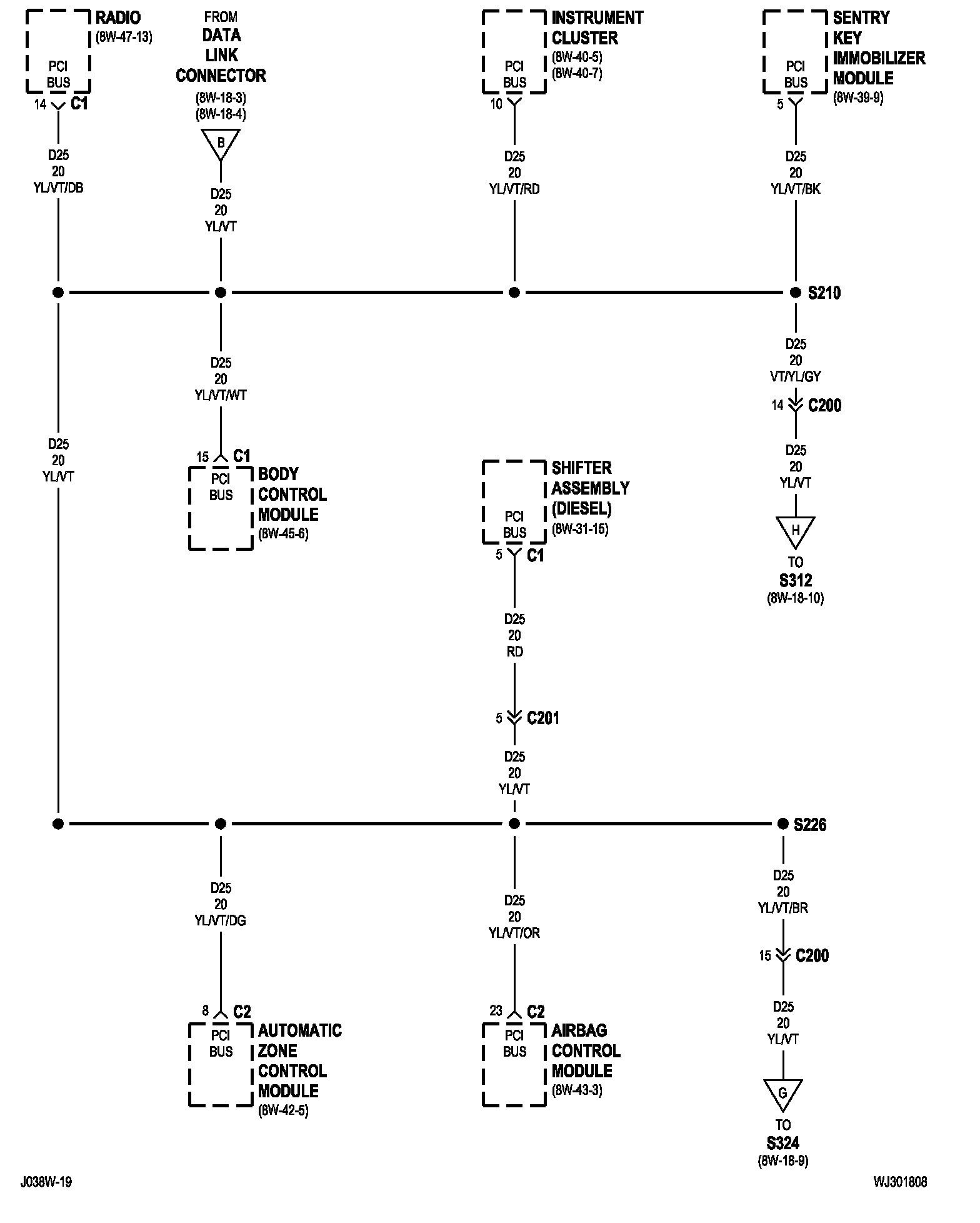

8w-18-3 (RHD):

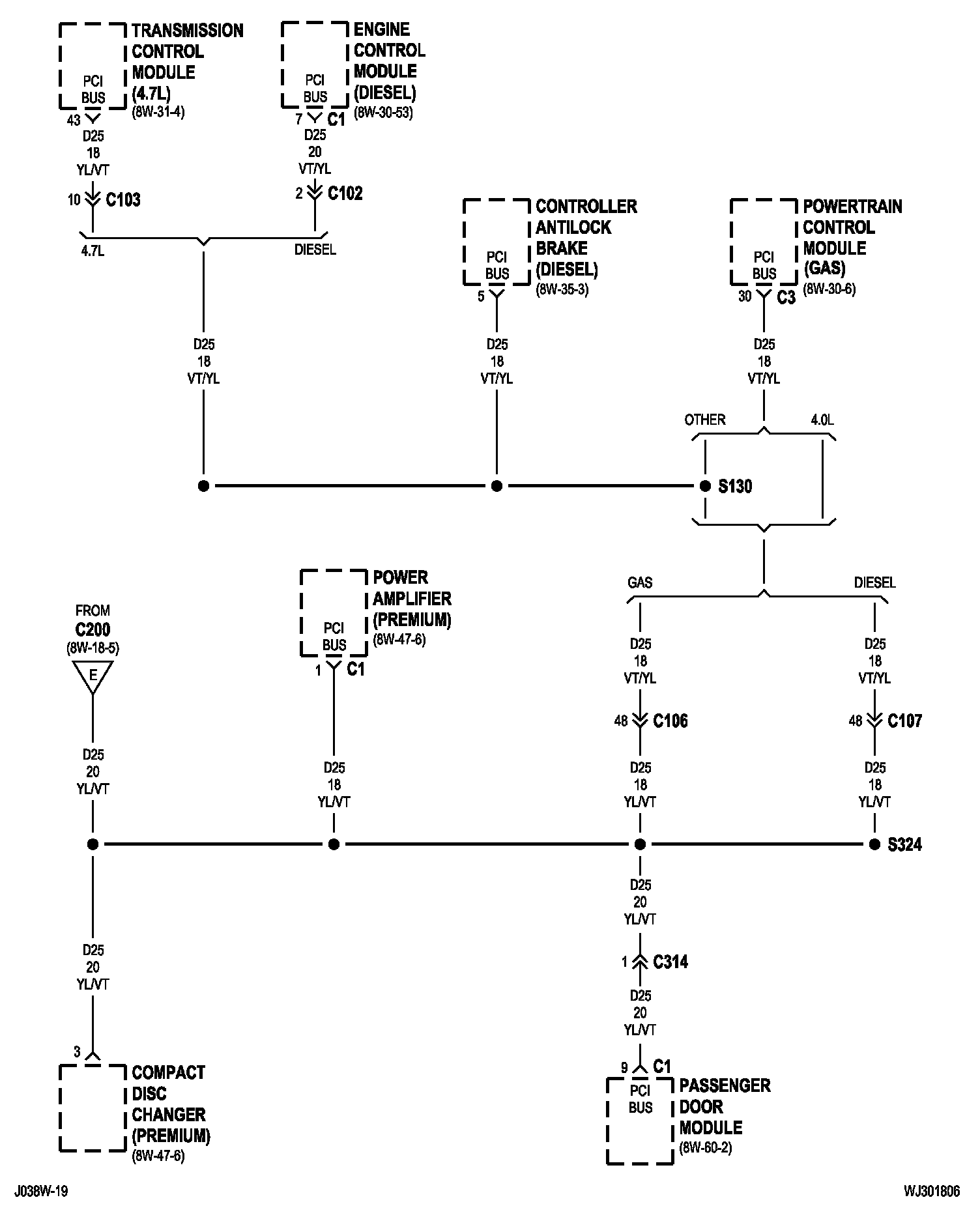

8w-18-5 (LHD):

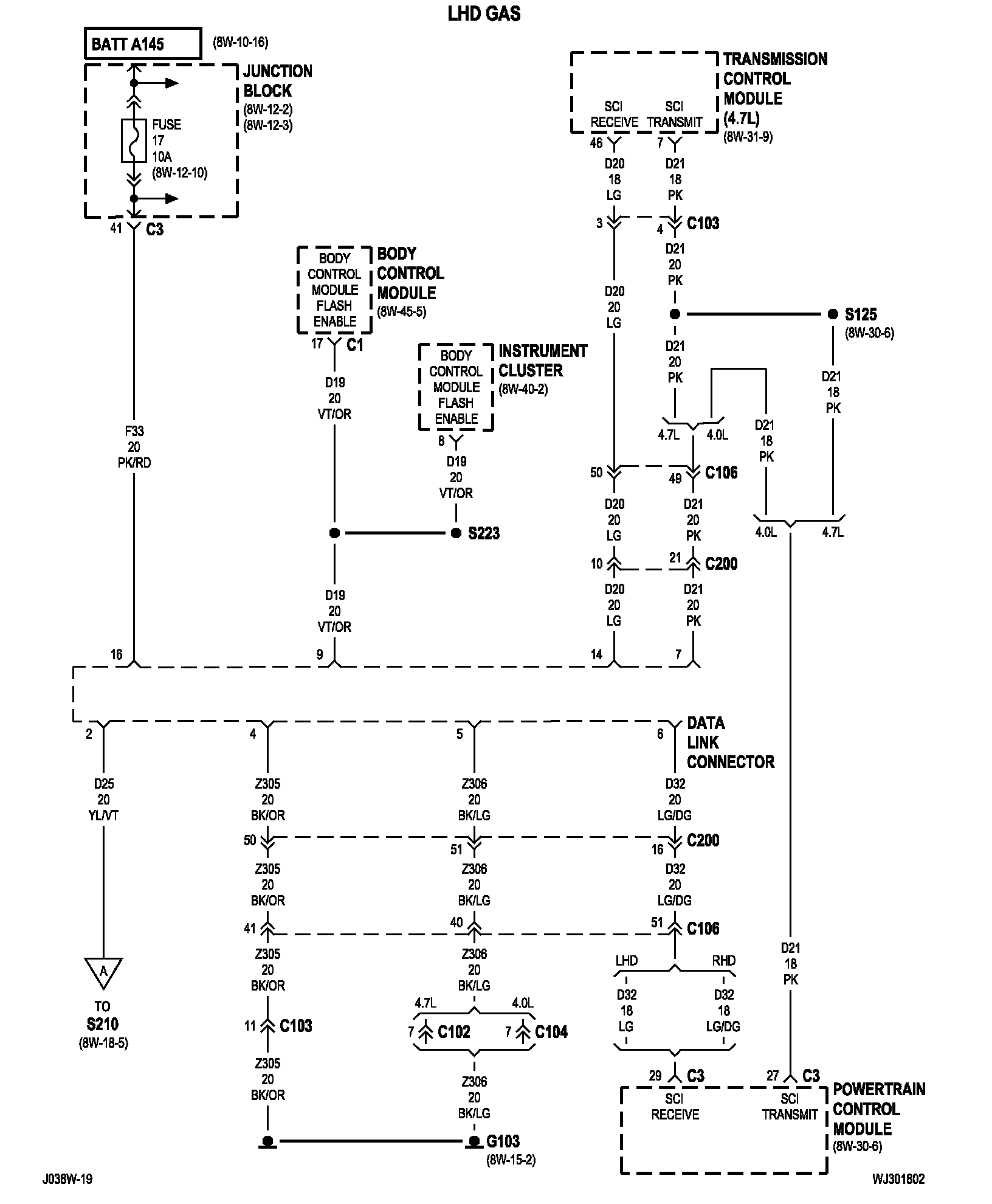

8w-18-6 (LHD):

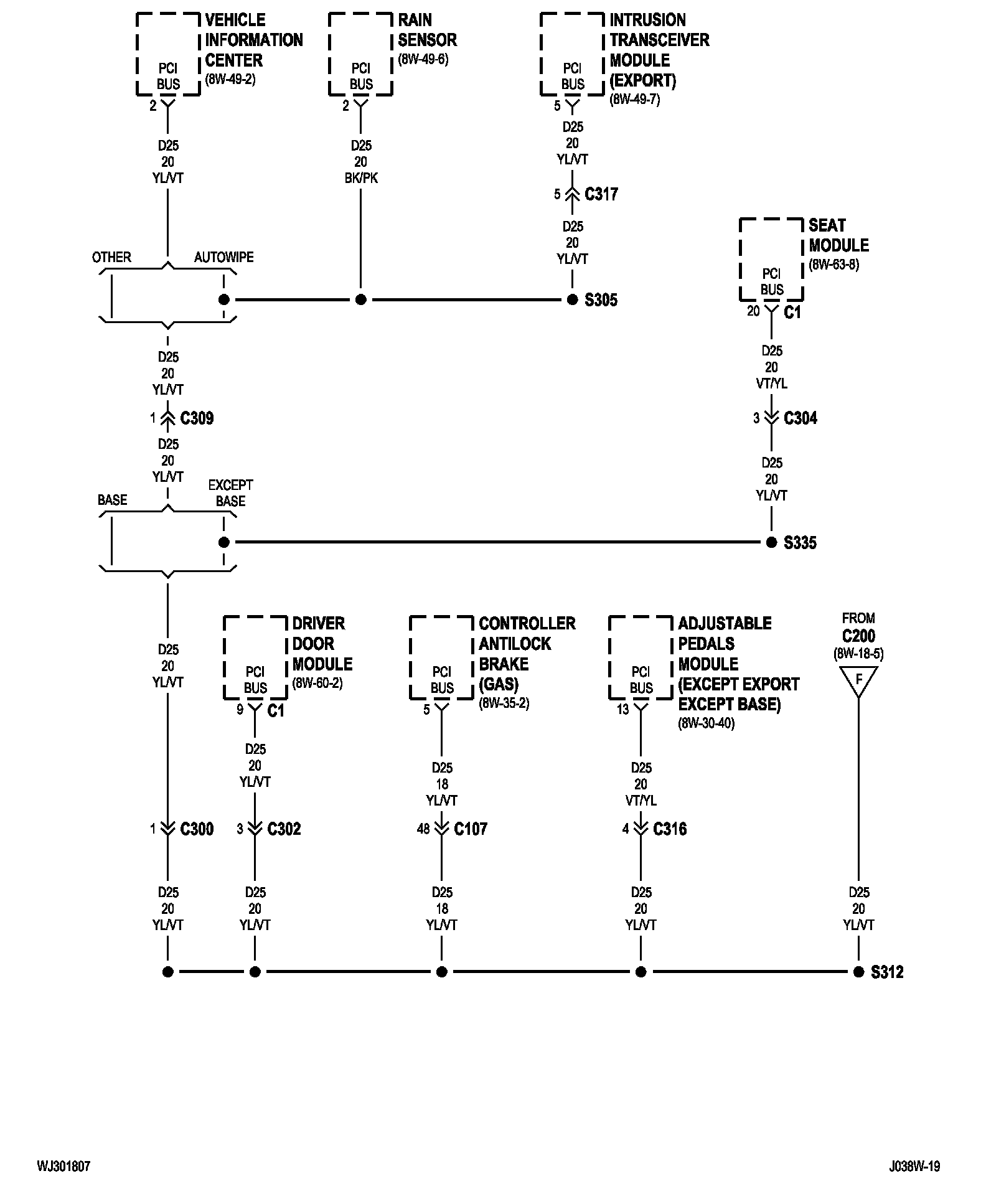

8w-18-7 (LHD):

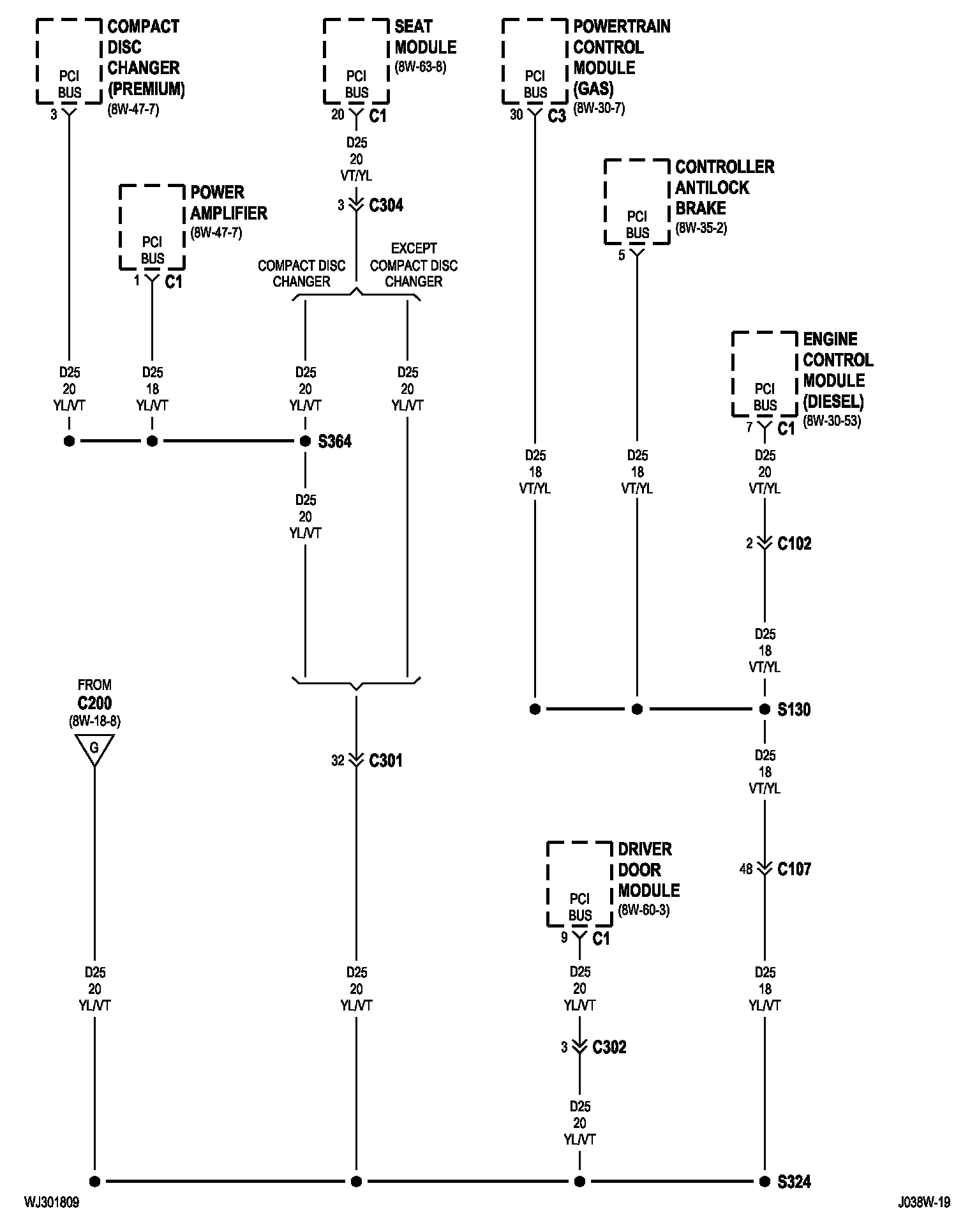

8w-18-8 (RHD):

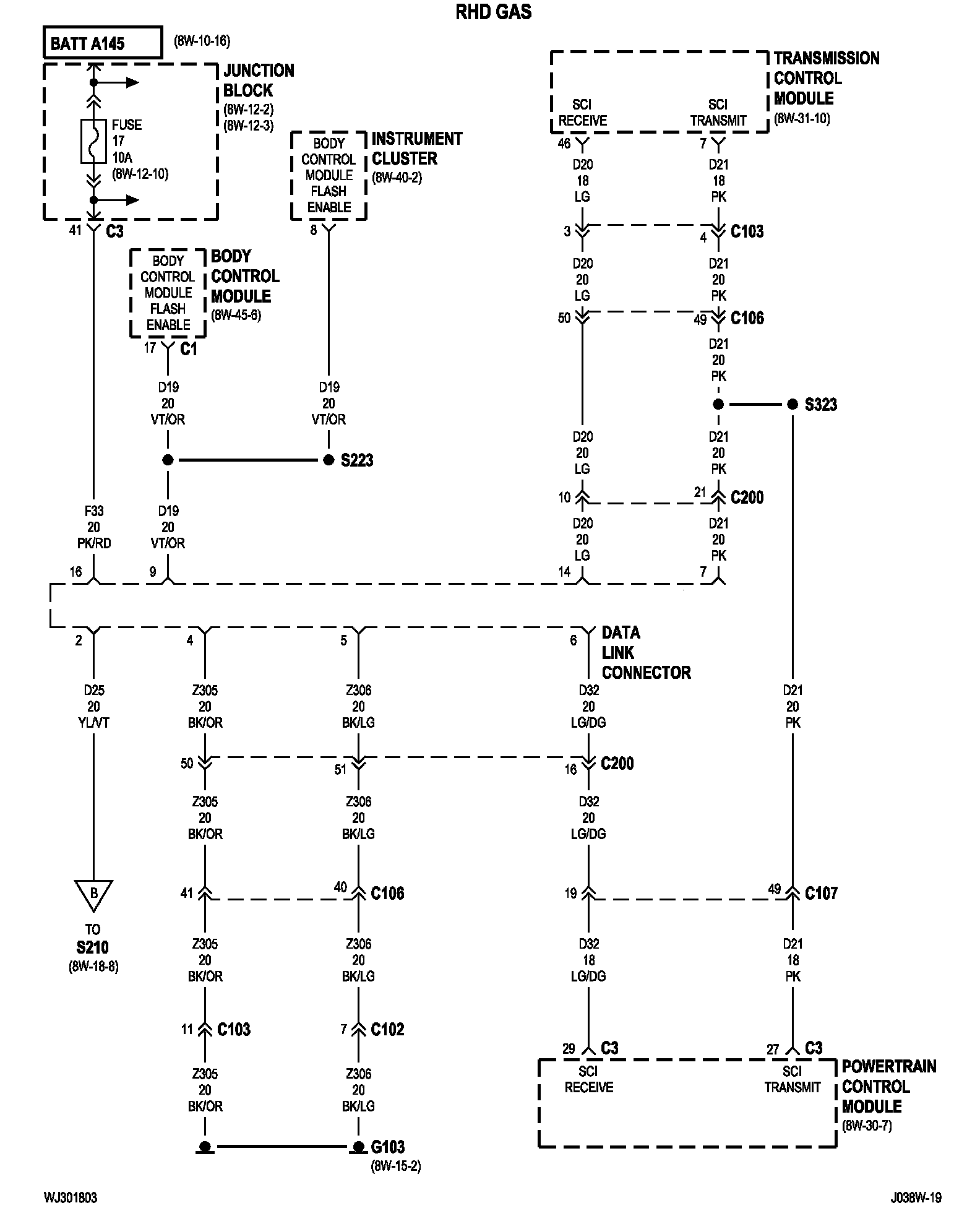

8w-18-9 (RHD):
8w-18-10 (RHD):
