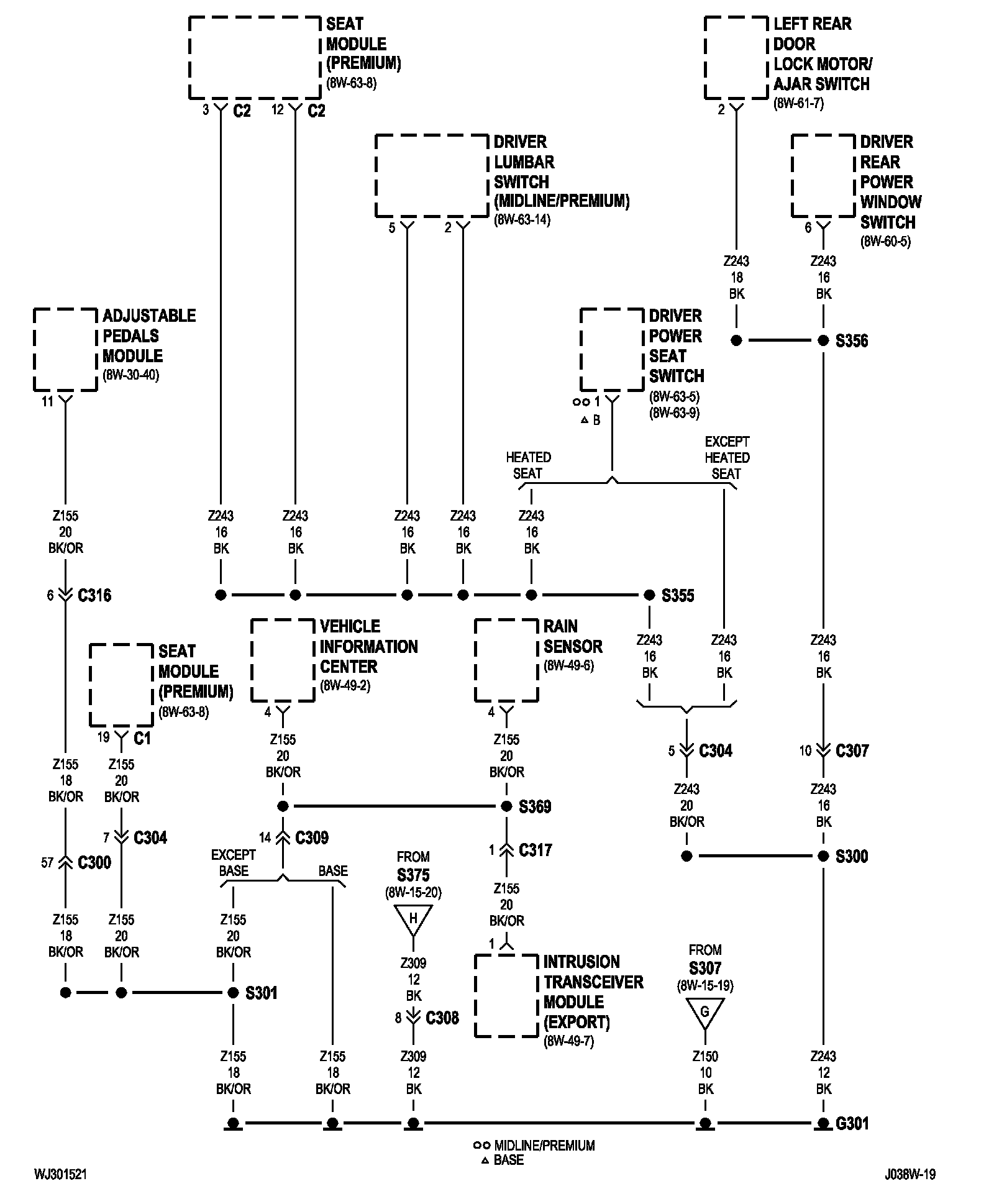

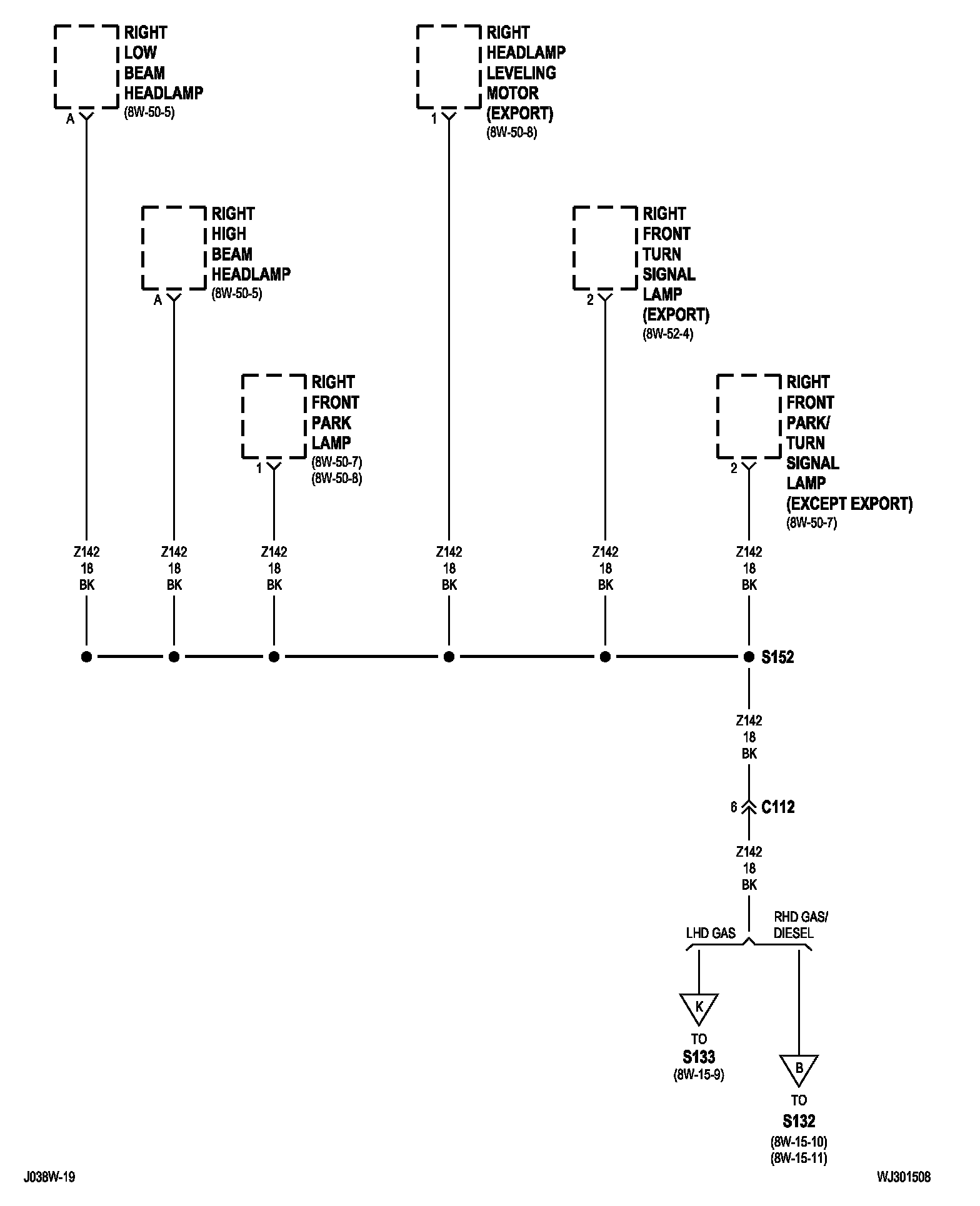

Group 8W-15 (Ground Distribution)

8w-15-2:



8w-15-4:



8w-15-5:



8w-15-6:



8w-15-8:



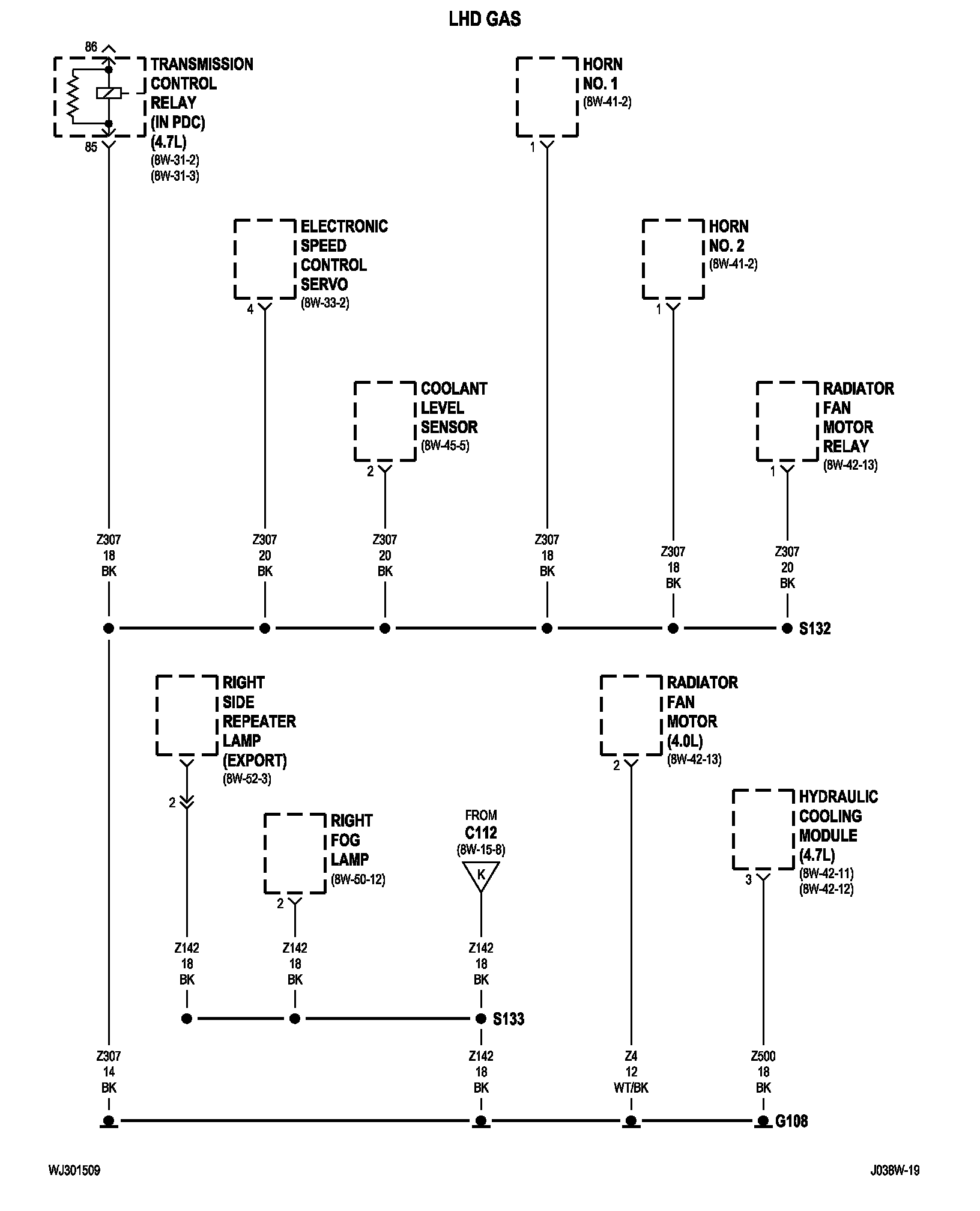

8w-15-9 (LHD):



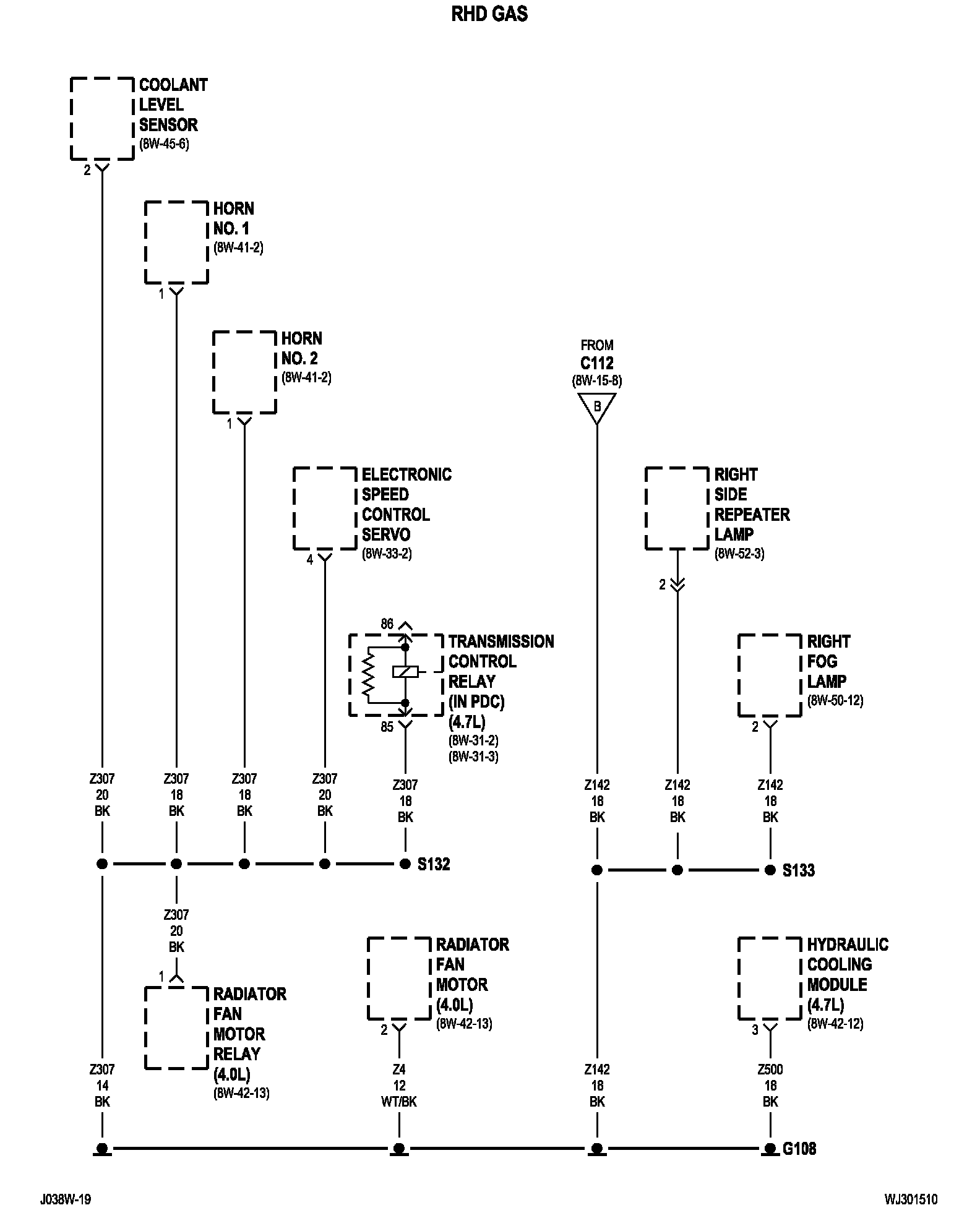

8w-15-10 (RHD):



8w-15-12:



8w-15-13:



8w-15-14:



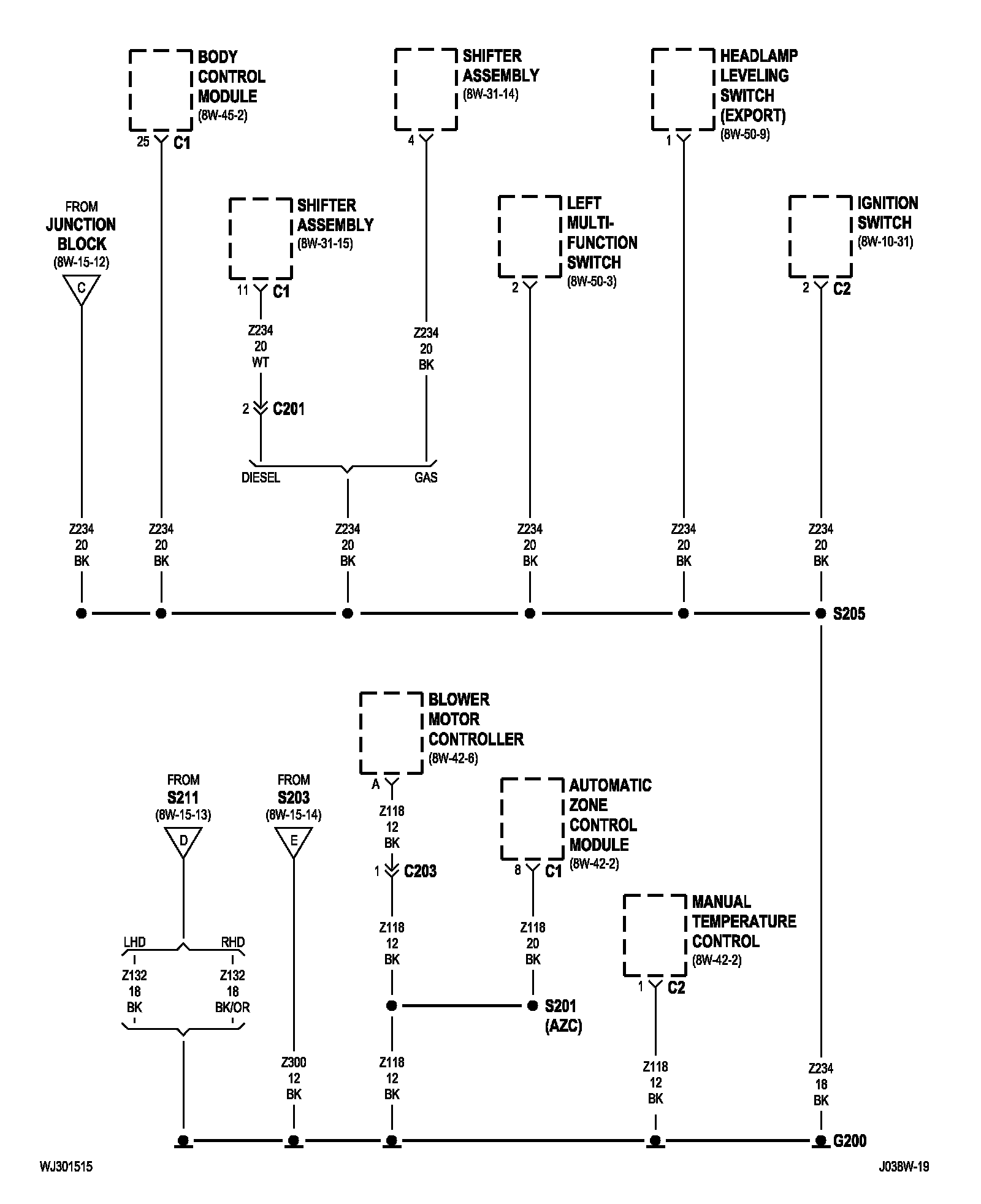

8w-15-15:



8w-15-16:



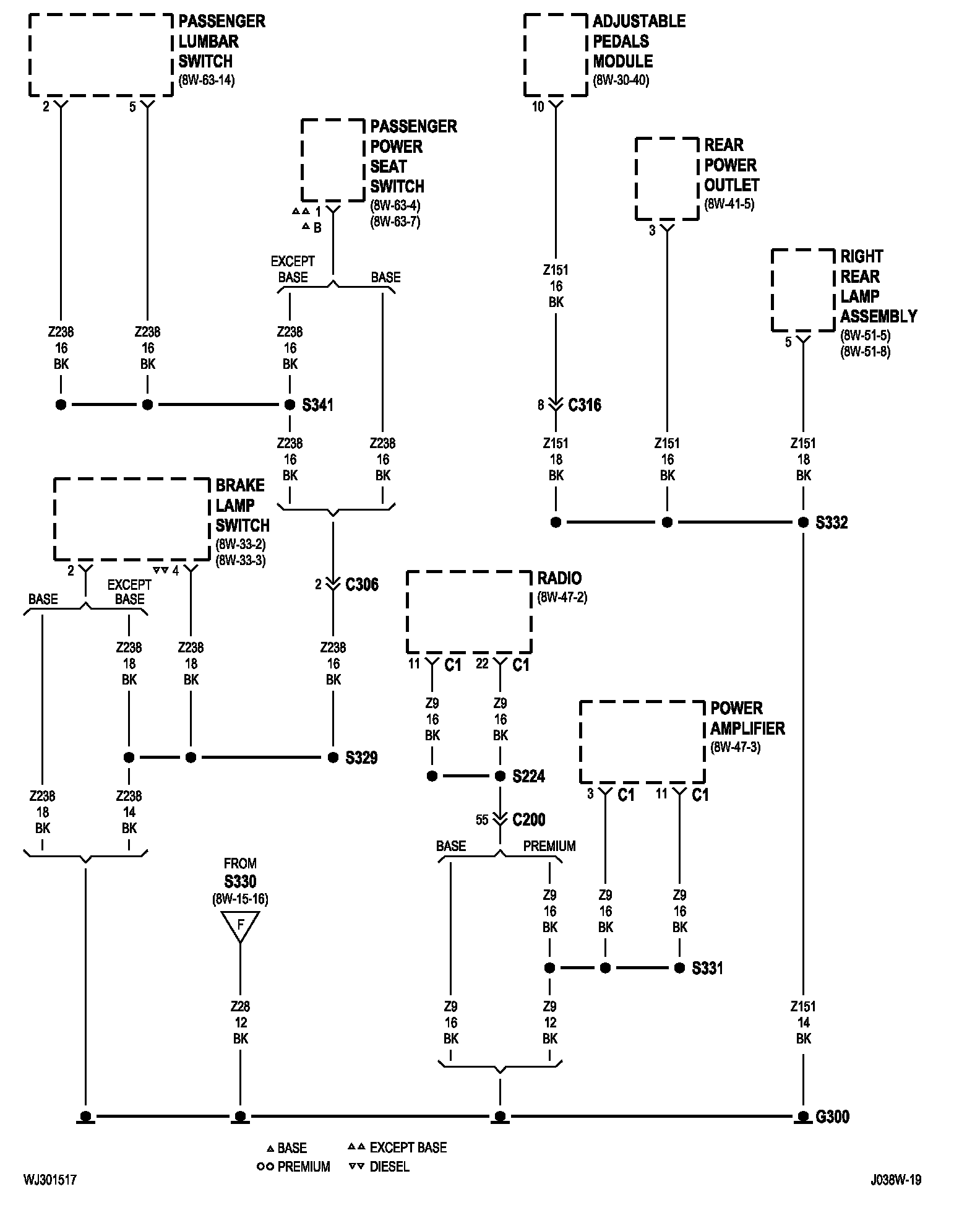

8w-15-17 (LHD):



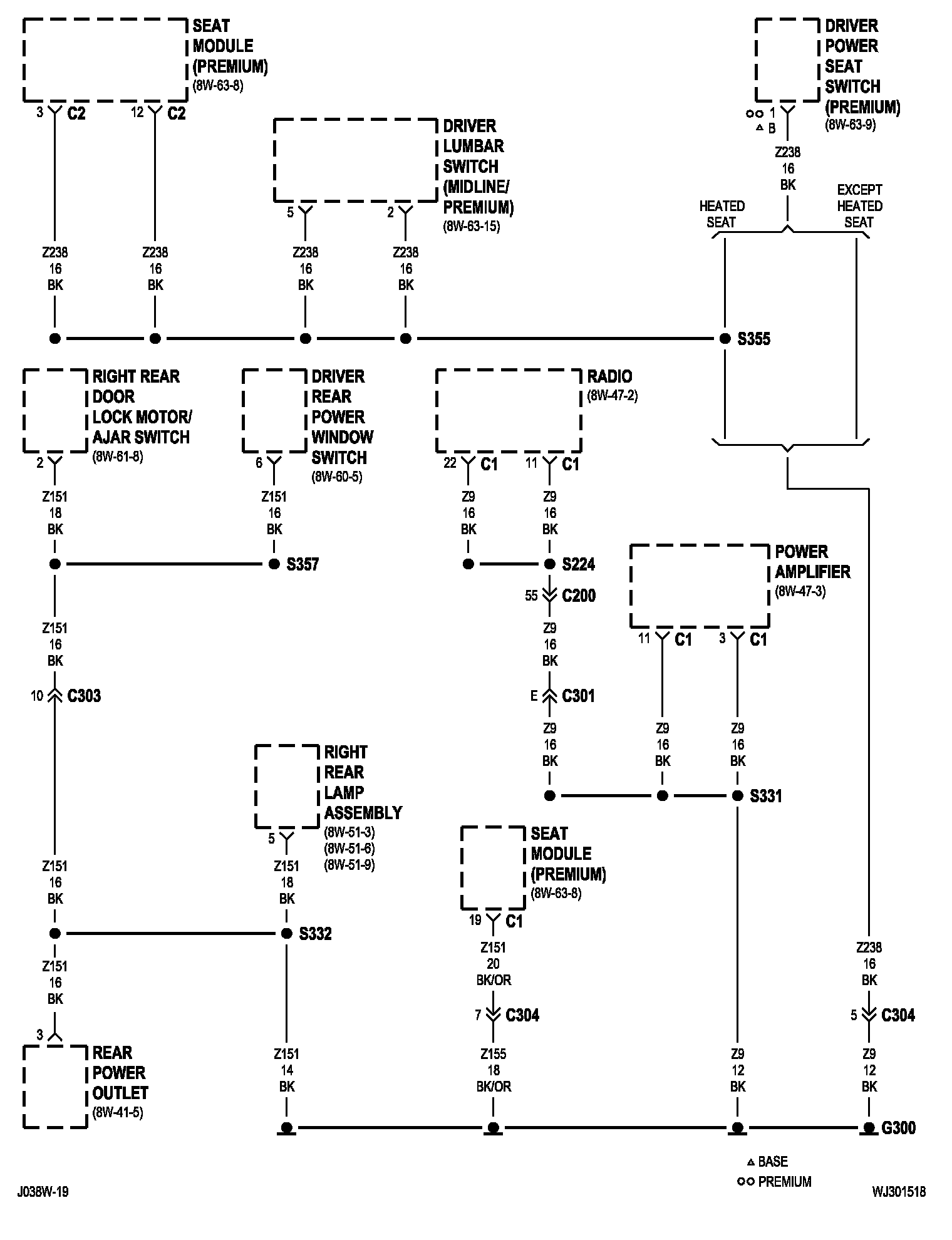

8w-18-18 (RHD):



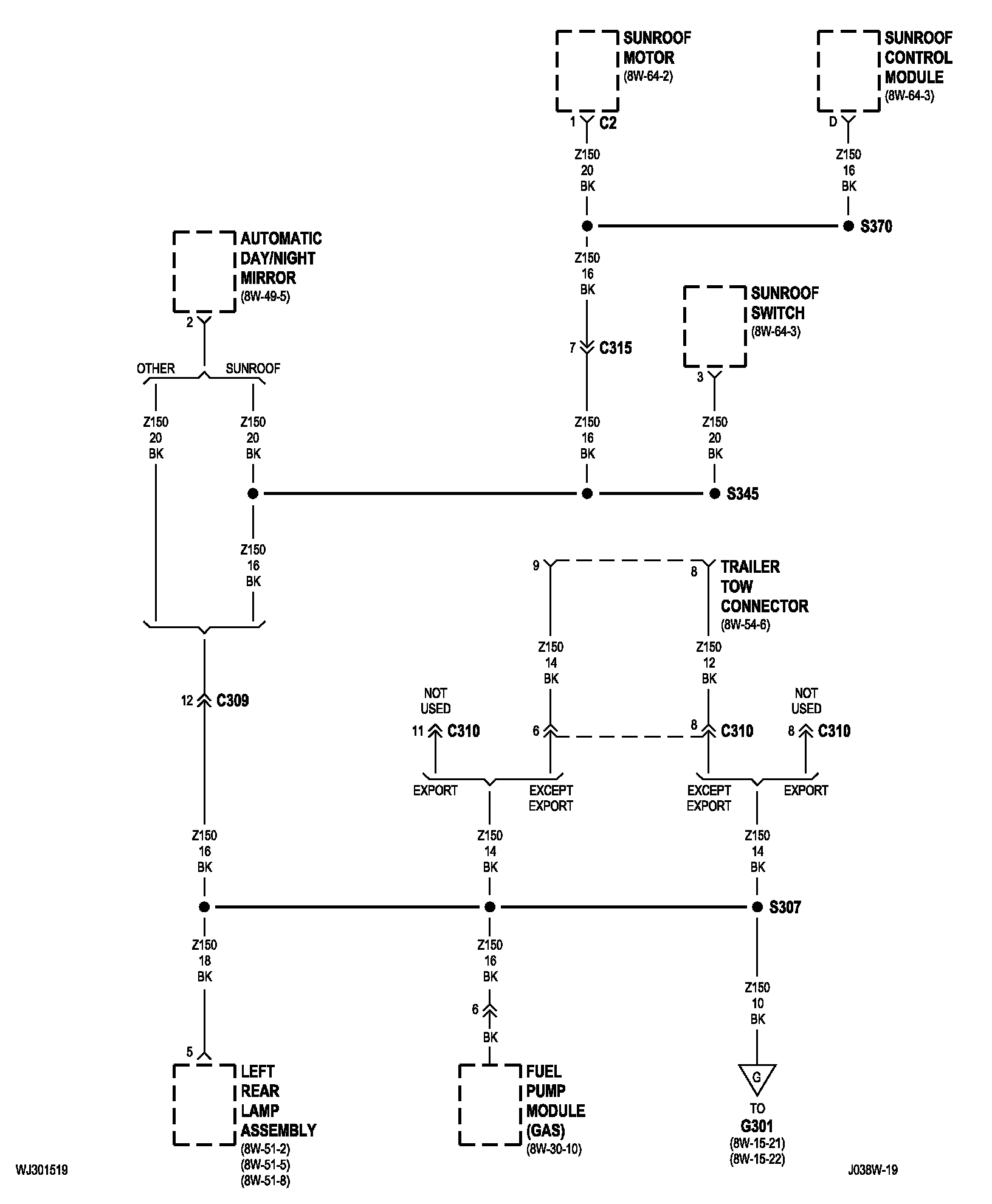

8w-15-19:



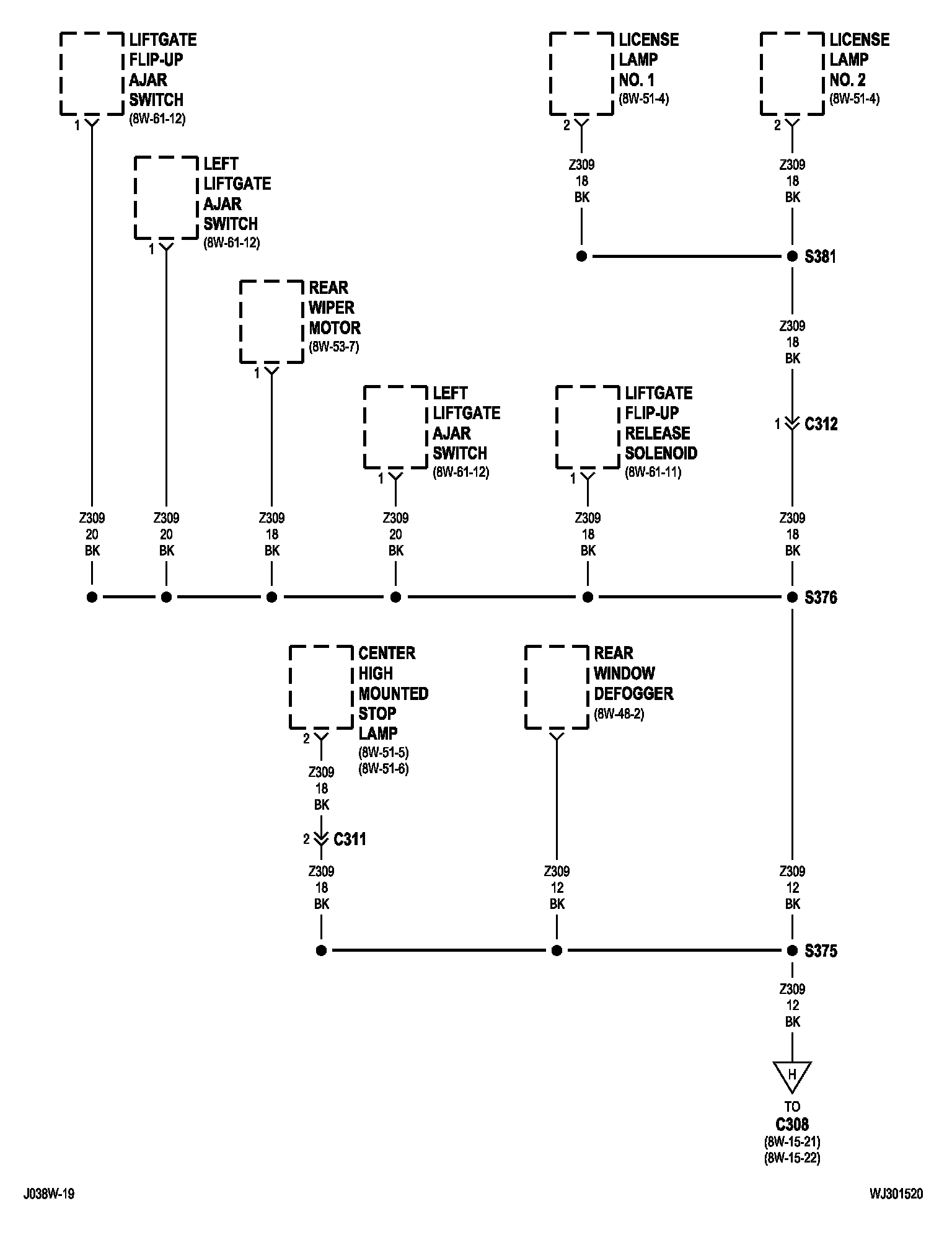

8w-15-20:



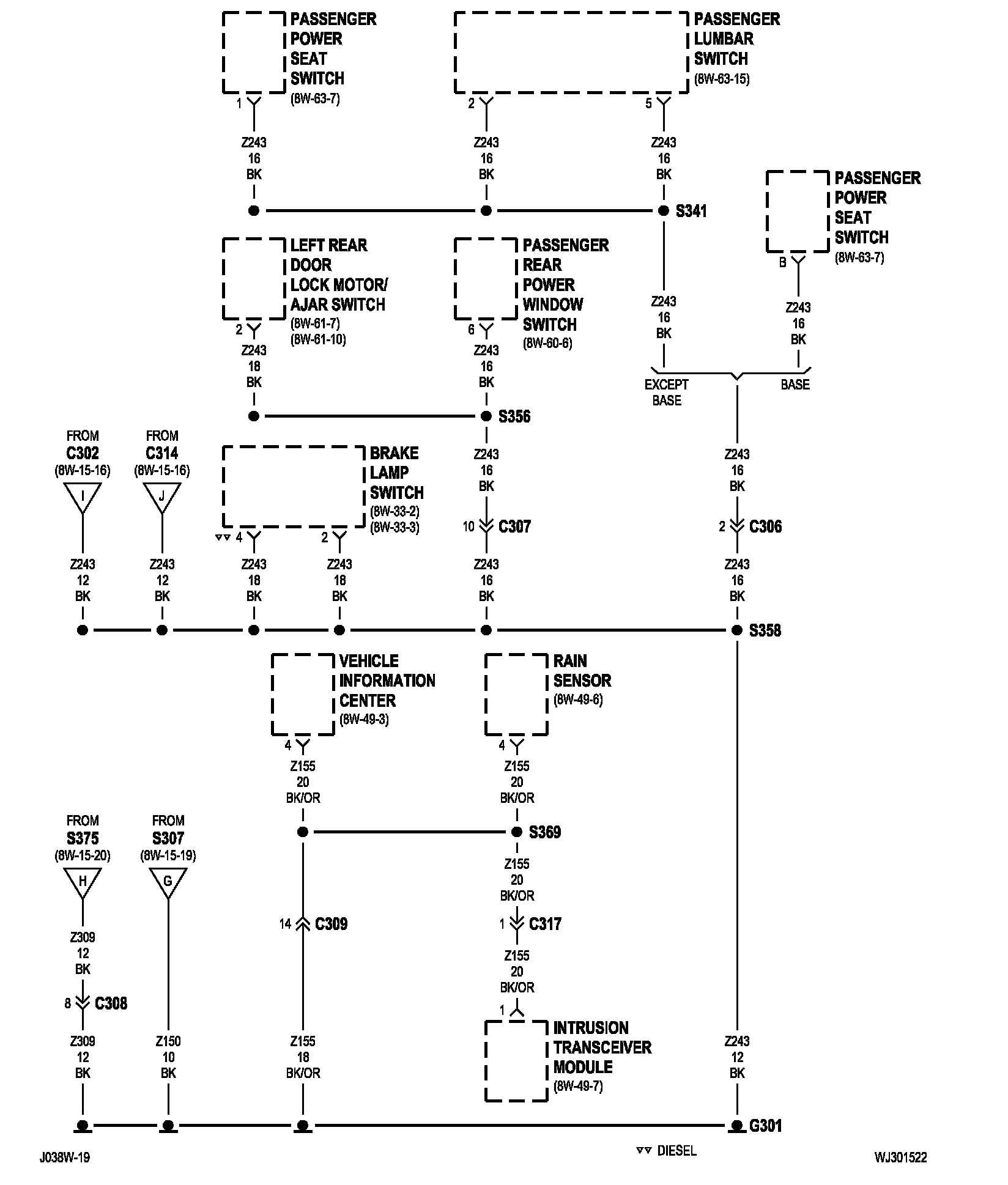

8w-15-21 (LHD):



8w-15-22 (RHD):
