LEMON Manuals
: Even more car manuals for everyone
Home
>>
Jeep
>>
2003
>>
Grand Cherokee 2WD V8-4.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C100 - C112
>>
C106
C106

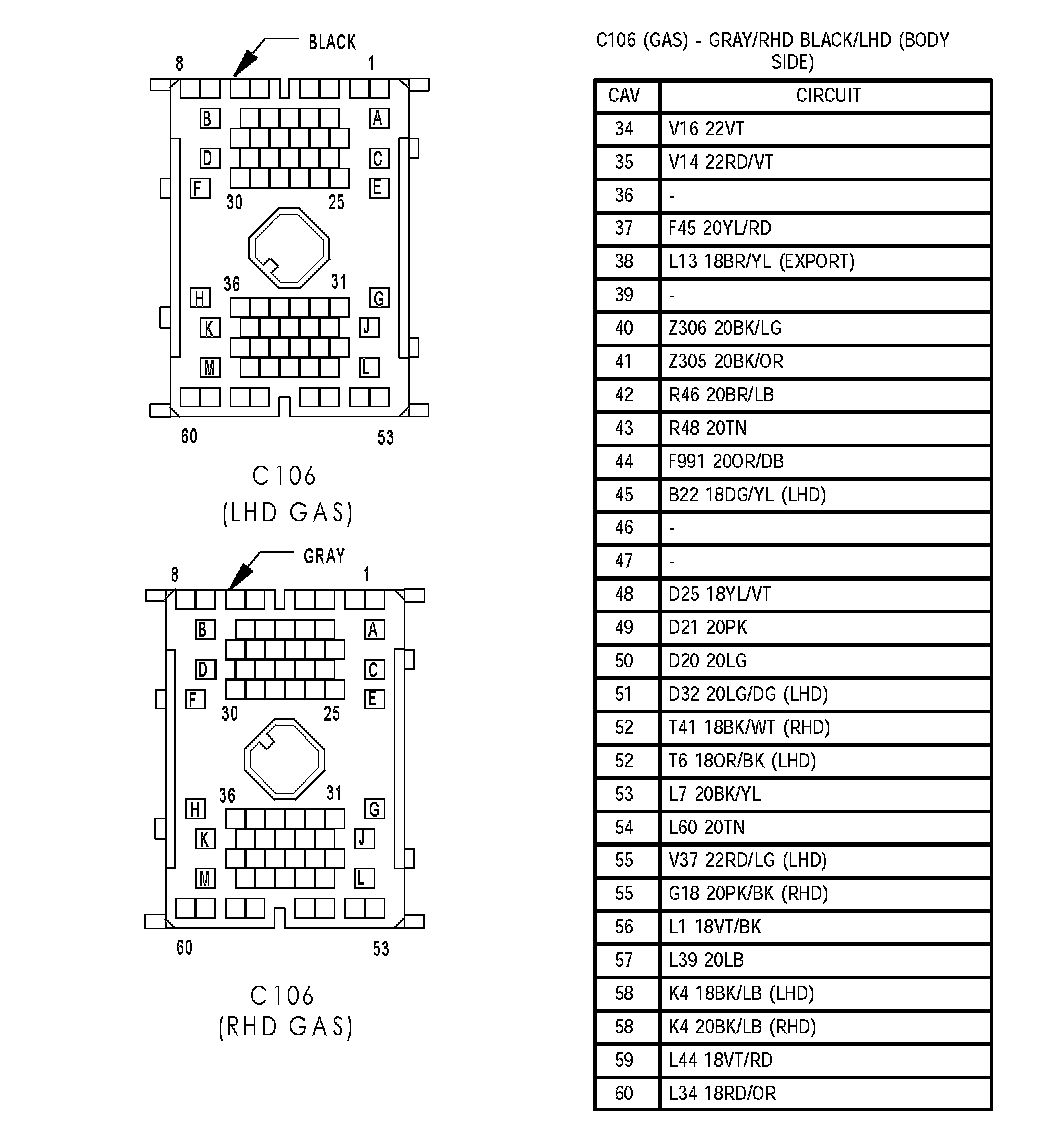

C106 (Part 1 Of 2):

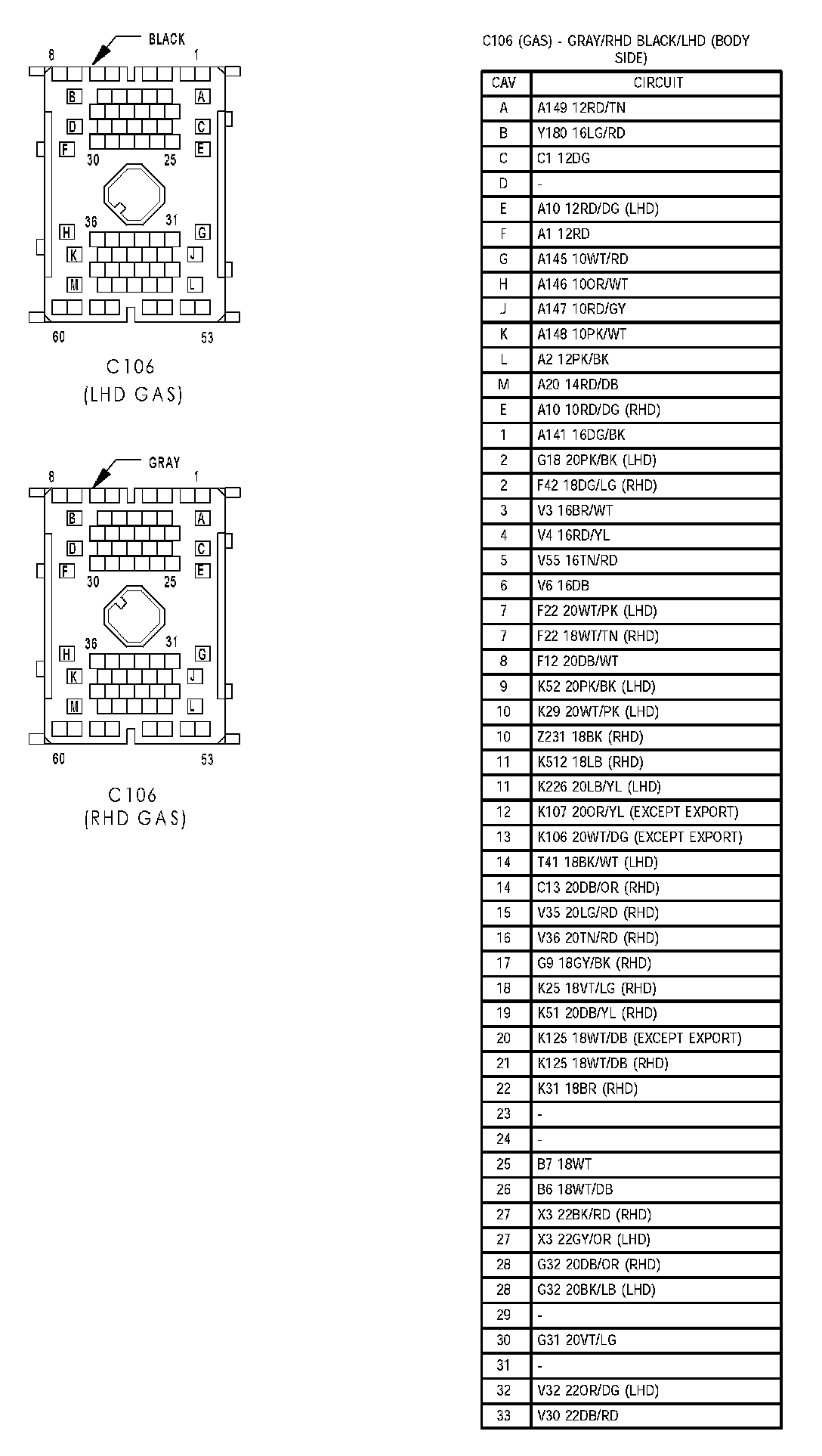

C106 (Part 2 Of 2):

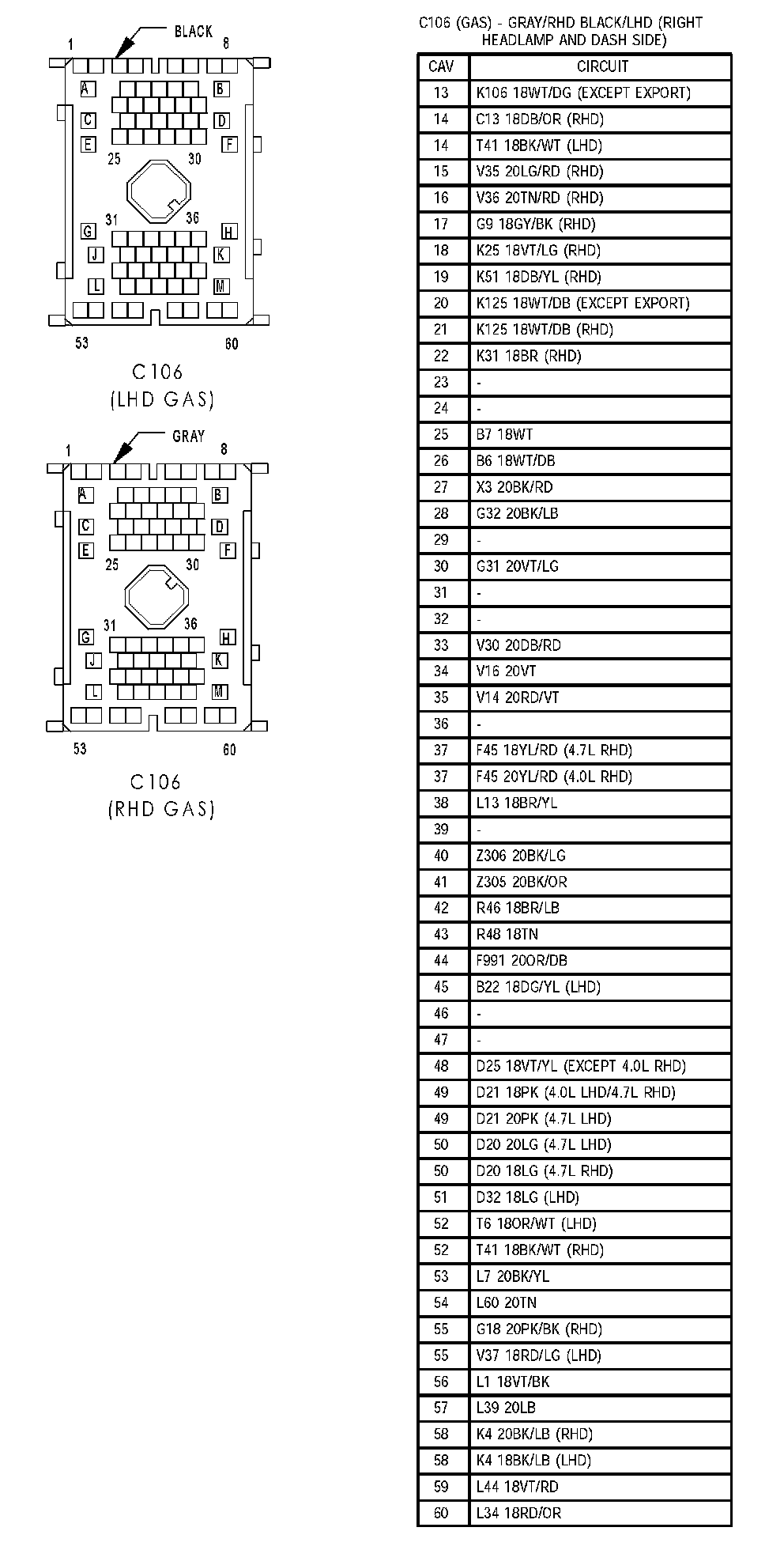

C106 (Part 1 Of 2):

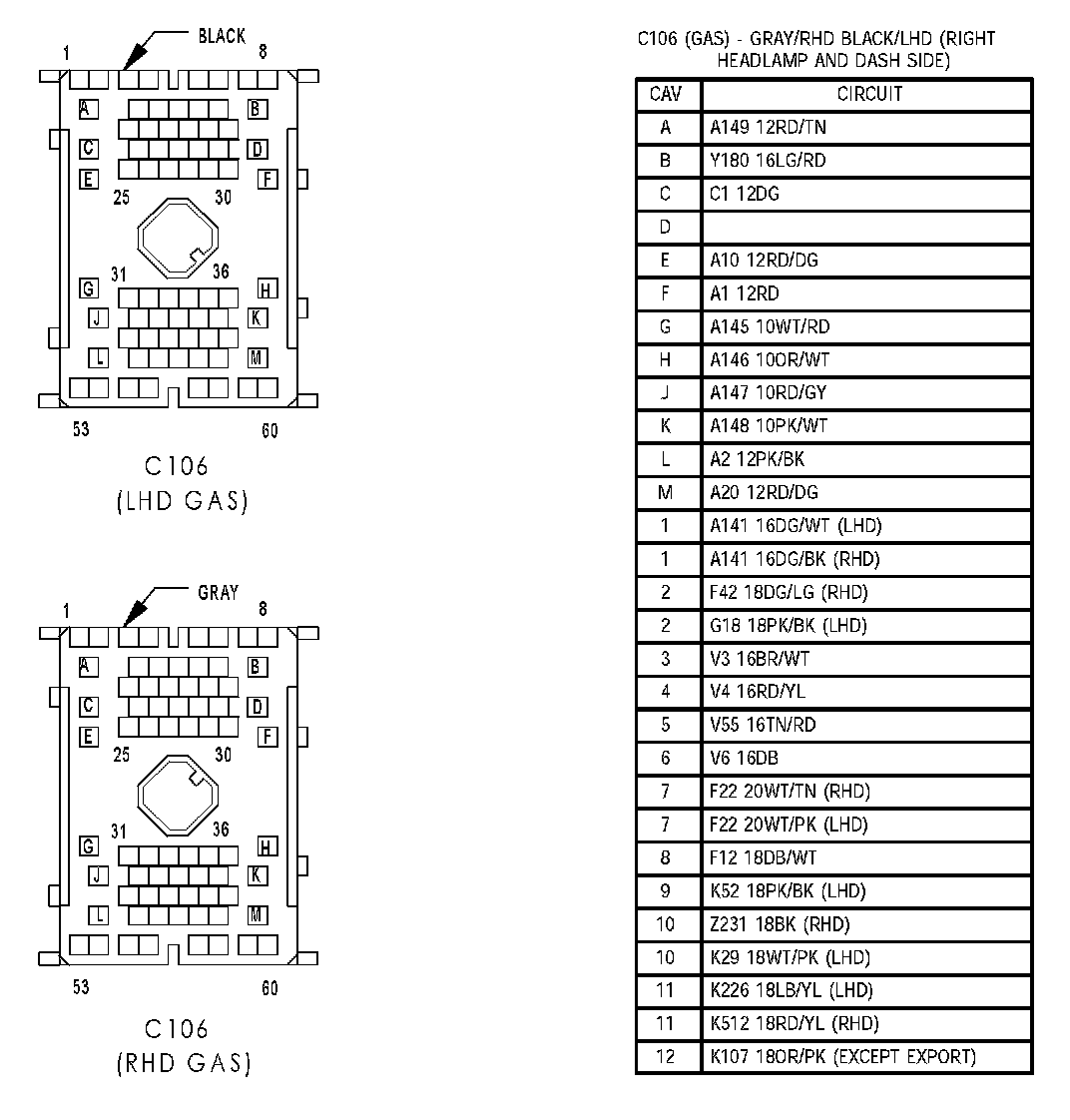

C106 (Part 2 Of 2):
