Rear Parking Brake Cable

REMOVAL - REAR PARKING BRAKE CABLES
1. Remove center console.
2. Lift up rear seat and carpet covering the parking brake cables.

Front Cable Eyelet:

3. Place a screwdriver through the front cable eyelet and pry back on the front cable.





4. Have an assistant pry down the lock out spring through the hole in the side of the park brake lever with a small screwdriver. Then slowly release the front cable.

NOTE: There should be slack in the cable if the lock out spring is engaged.

5. Disengage rear cables ends from the equalizer.





6. Compress the cable retainers with a 13 mm wrench and remove the cable from equalizer bracket.
7. Raise and support the vehicle.
8. Remove the wheel and tire assemblies.
9. Remove the brake calipers, caliper anchors and rotors.





10. Remove the ABS sensor wiring harness from the rear brake cables.

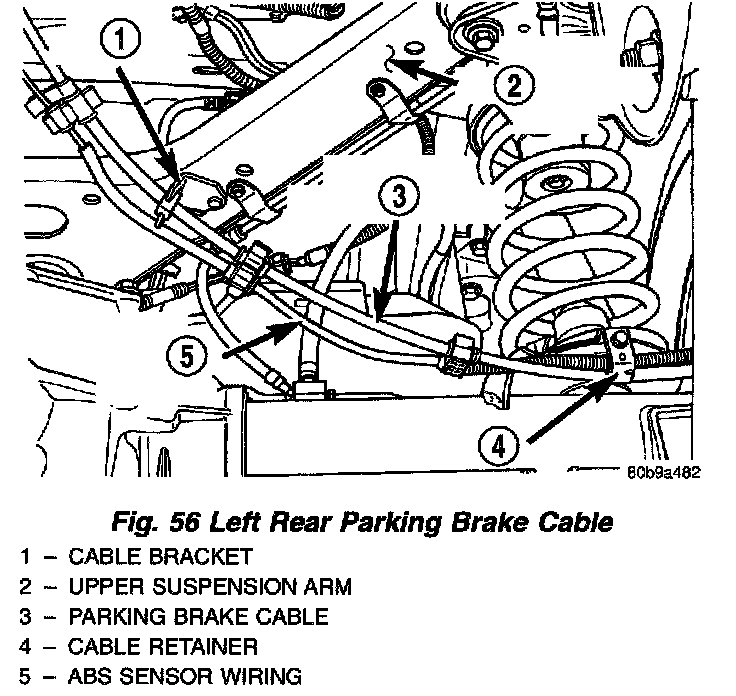

11. Remove the cable retainer bolts from the rear spring pads.
12. Pull the cables out of the upper suspension arm brackets.

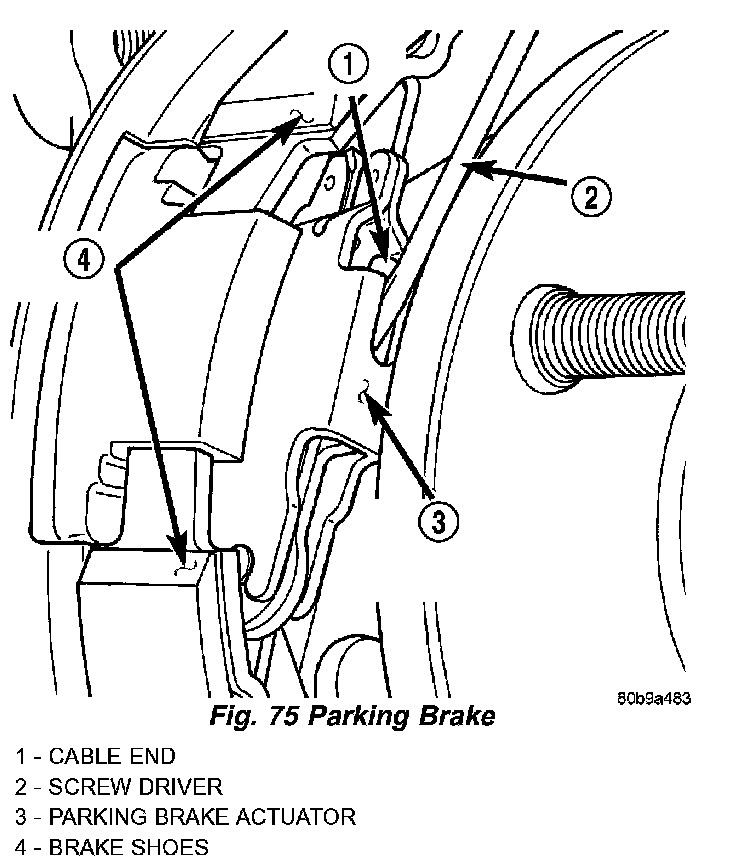

13. Push the cable in and lift up the end of cable with a small screwdriver to disengage the cable from the parking brake actuator.
14. Remove the cable from the vehicle.

INSTALLATION - REAR PARKING BRAKE CABLES
1. Install the cables through the caliper anchor mount. Then push the end of cable strand in to engage the cable end to the parking brake actuator.





2. Feed the other end of the cables through the body and into the equalizer bracket.
3. Push the cables into the upper suspension arm brackets.
4. Install the cable retainer bolts to the rear spring pads.
5. Install the ABS sensor wiring harness to the rear brake cables.
6. Install the rotors, caliper anchors and brake calipers.
7. Install the wheel and tire assemblies.
8. Remove support and lower the vehicle.
9. Engage the cable ends into the parking brake equalizer.
10. Pull on the lever to release the lock out spring.
11. Install center console.
12. Fold down the rear carpet cover and rear seat.
13. Verify parking brake operation.
