Brake Lamp Switch Inoperative

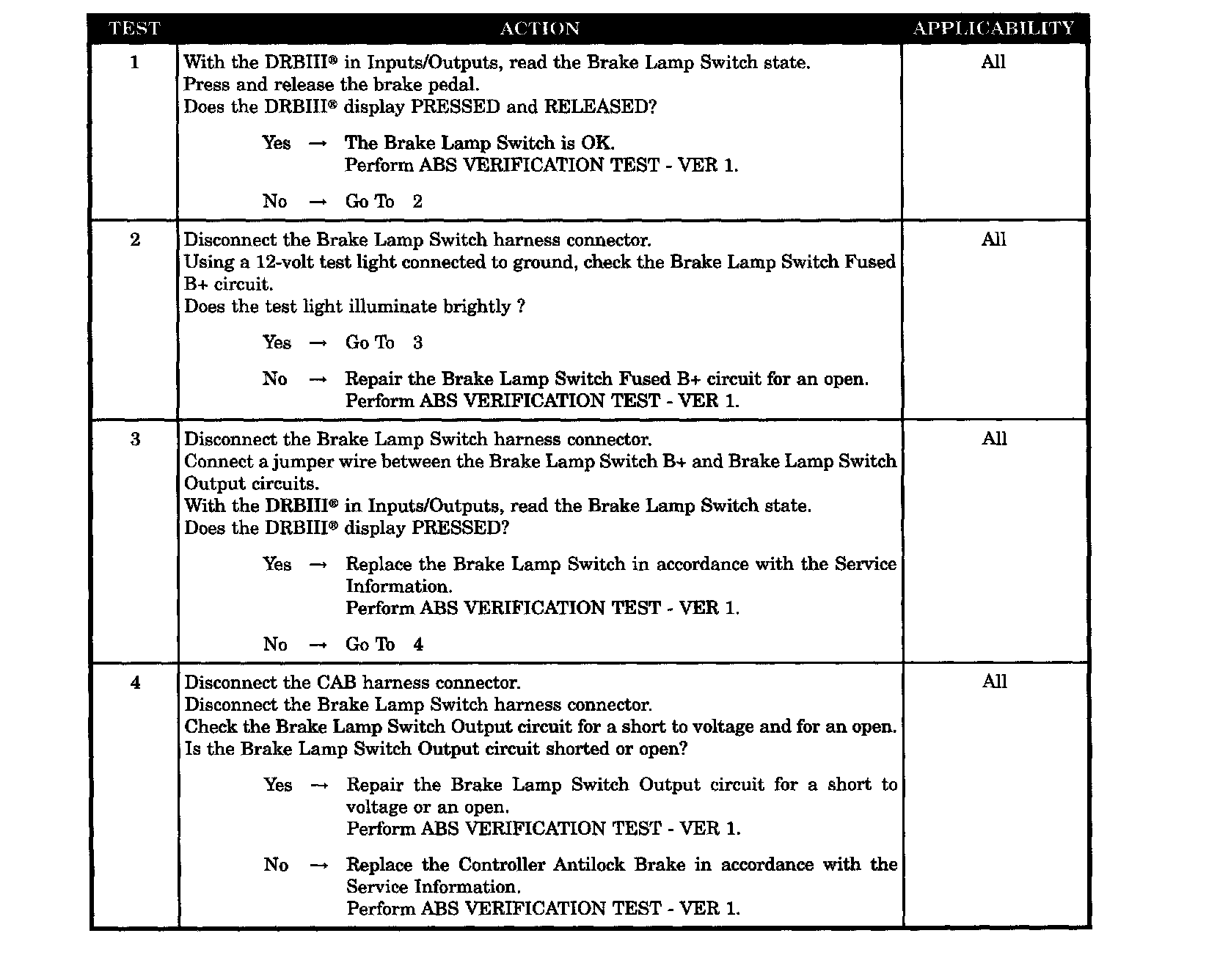

Test 1-4:

Symptom
*BRAKE LAMP SWITCH INOPERATIVE

POSSIBLE CAUSES
- CHECK BRAKE LAMP SWITCH OUTPUT
- BRAKE LAMP SWITCH B+ OPEN
- BRAKE LAMP SWITCH OPEN
- BRAKE LAMP SWITCH OUTPUT CIRCUIT SHORT OR OPEN
- CAB - INTERNAL OPEN
