Can't Set/Recall Memory Positions

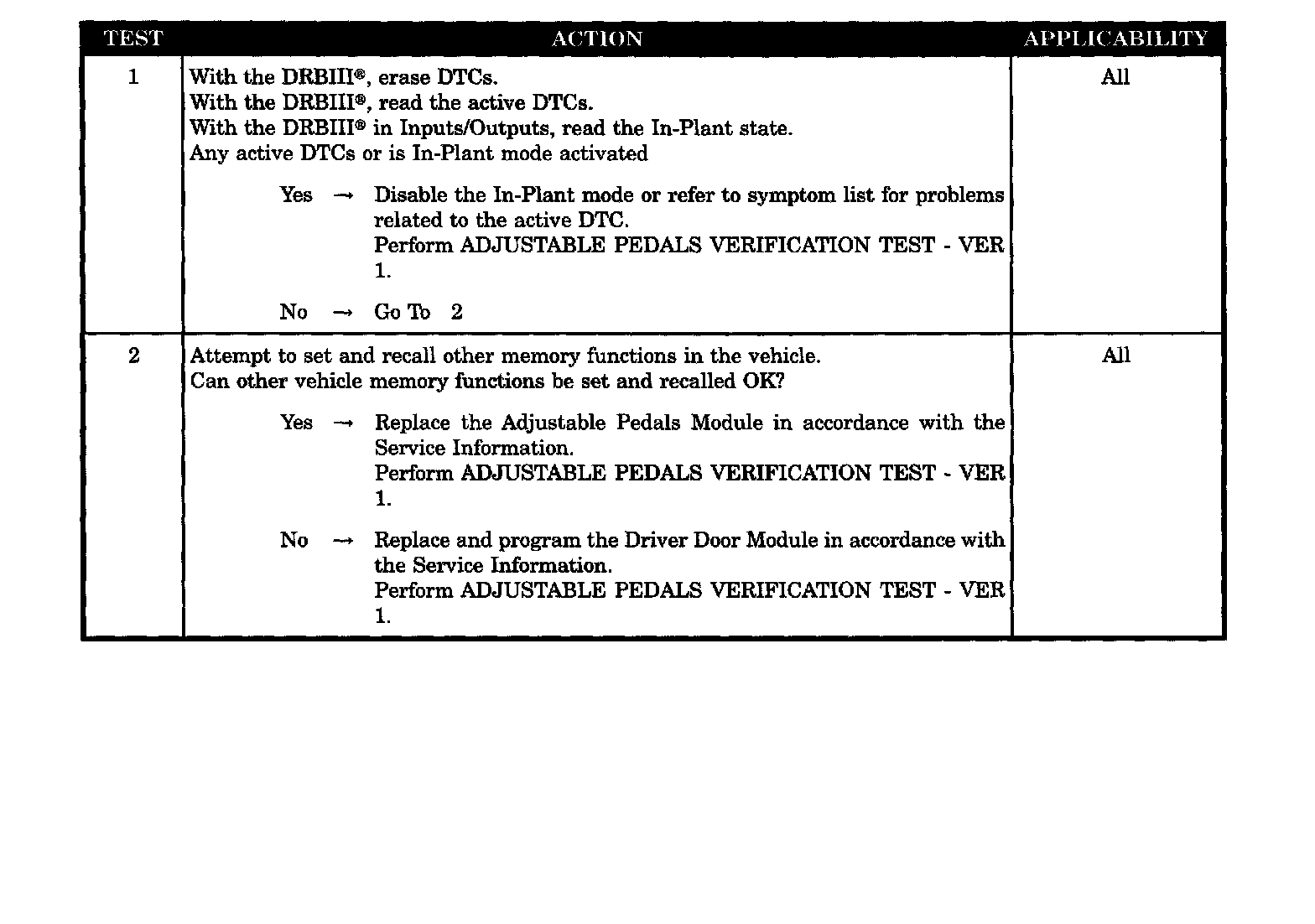

Test 1-2:





Symptom
*CAN'T SET/RECALL MEMORY POSITIONS

POSSIBLE CAUSES
- DTC OR IN-PLANT MODE ACTIVE
- DRIVER DOOR MODULE -- INTERNAL FAULT
- ADJUSTABLE PEDALS MODULE FAULT
