Can't Adjust Pedals

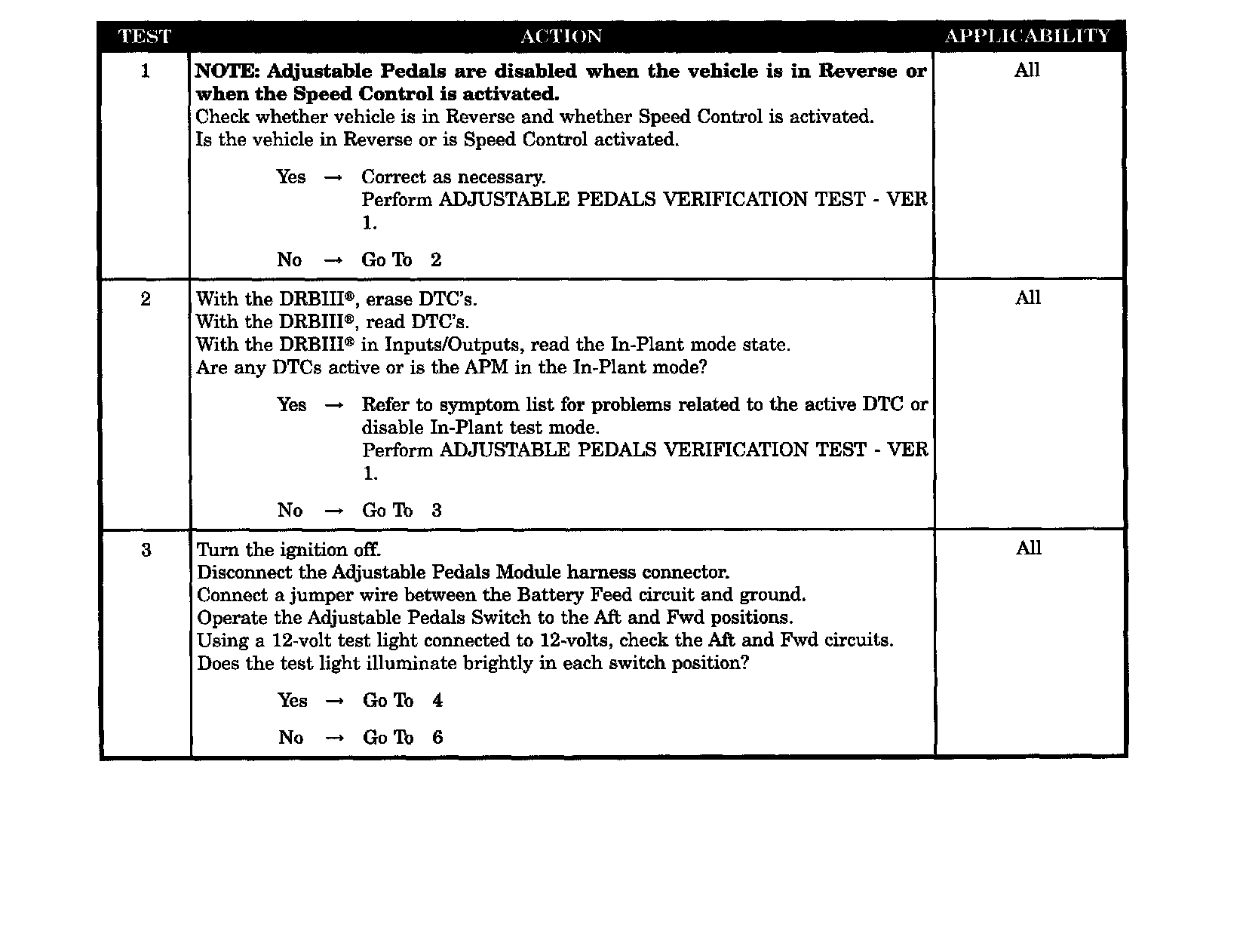

Test 1-3:

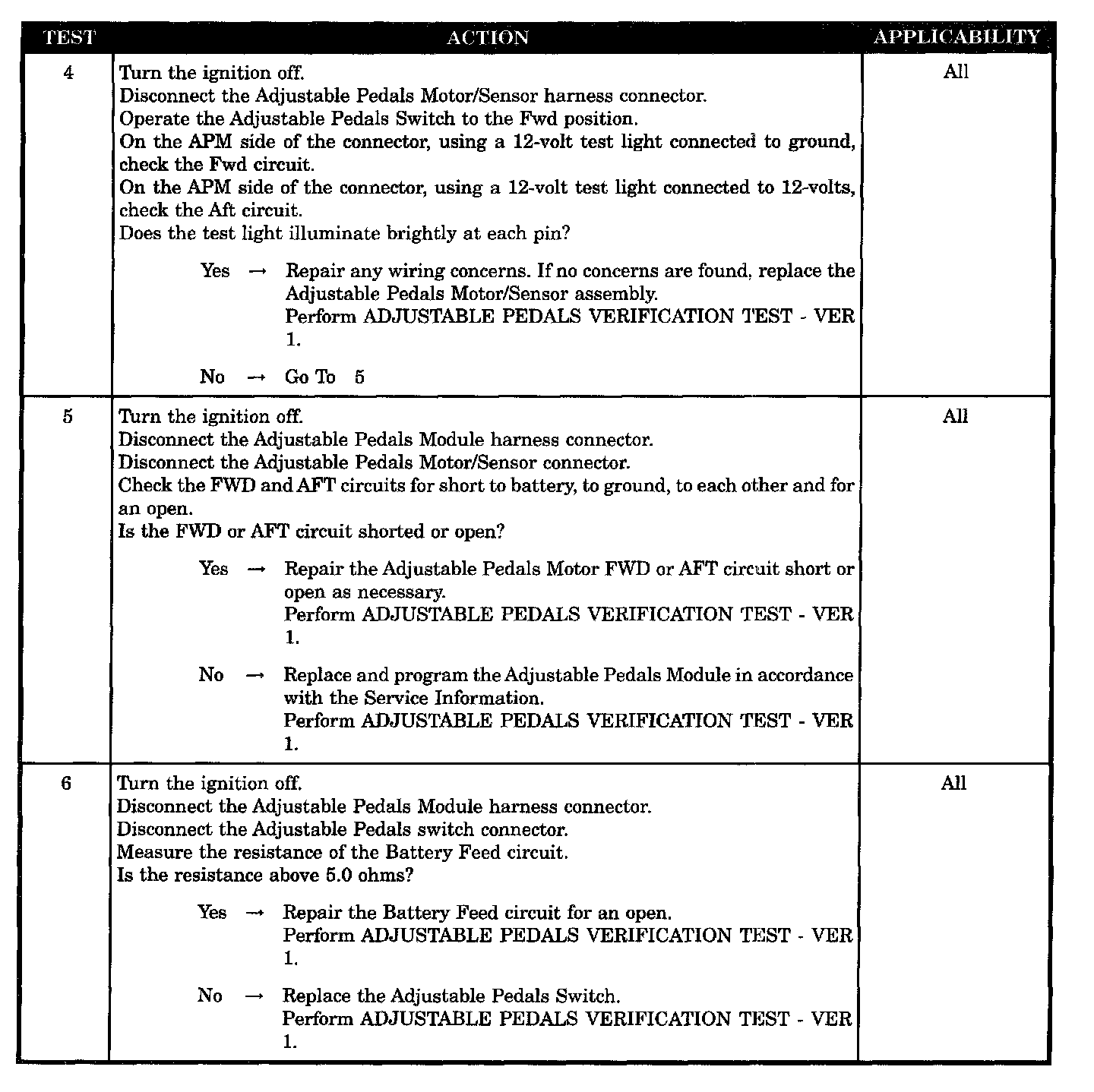

Test 4-6:

Symptom
*CAN'T ADJUST PEDALS


POSSIBLE CAUSES
- VEHICLE IN CRUISE OR REVERSE
- DTC OR IN-PLANT MODE ACTIVE
- MOTOR/SENSOR ASSEMBLY
- MOTOR FWD OR AFT CIRCUIT SHORTED OR OPEN
- BATTERY FEED CIRCUIT OPEN
- ADJUSTABLE PEDALS MODULE INTERNAL FAULT
- ADJ PEDAL SW OPEN
