Pedal Positioning Switch: Service and Repair

ADJUSTABLE PEDAL SWITCH

REMOVAL

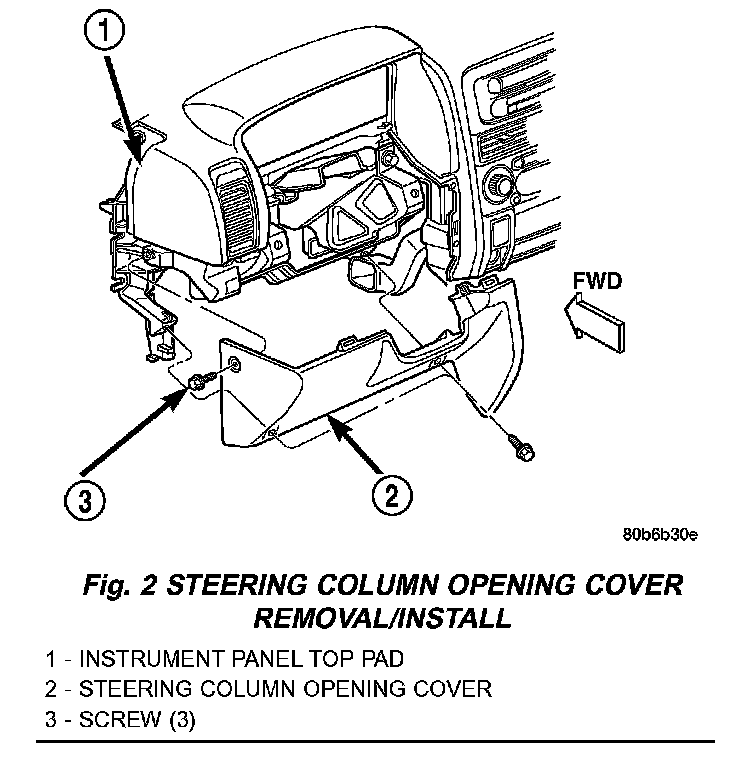

1. Remove the steering column opening cover.
2. Disconnect the electrical connector from the adjustable pedal switch.





3. Remove the switch from the steering column opening cover by squeezing the retaining clips together and pushing the switch outwards.

INSTALLATION
1. Install the switch to the steering column opening cover by pushing the switch inwards seating the retaining clips to the steering column opening cover.
2. Reconnect the electrical connector to the adjustable pedal switch.
3. Install the steering column opening cover.
