Front Seat Track Adjuster
SEAT TRACK ADJUSTERREMOVAL
1. Remove seat.
2. Remove side shield.

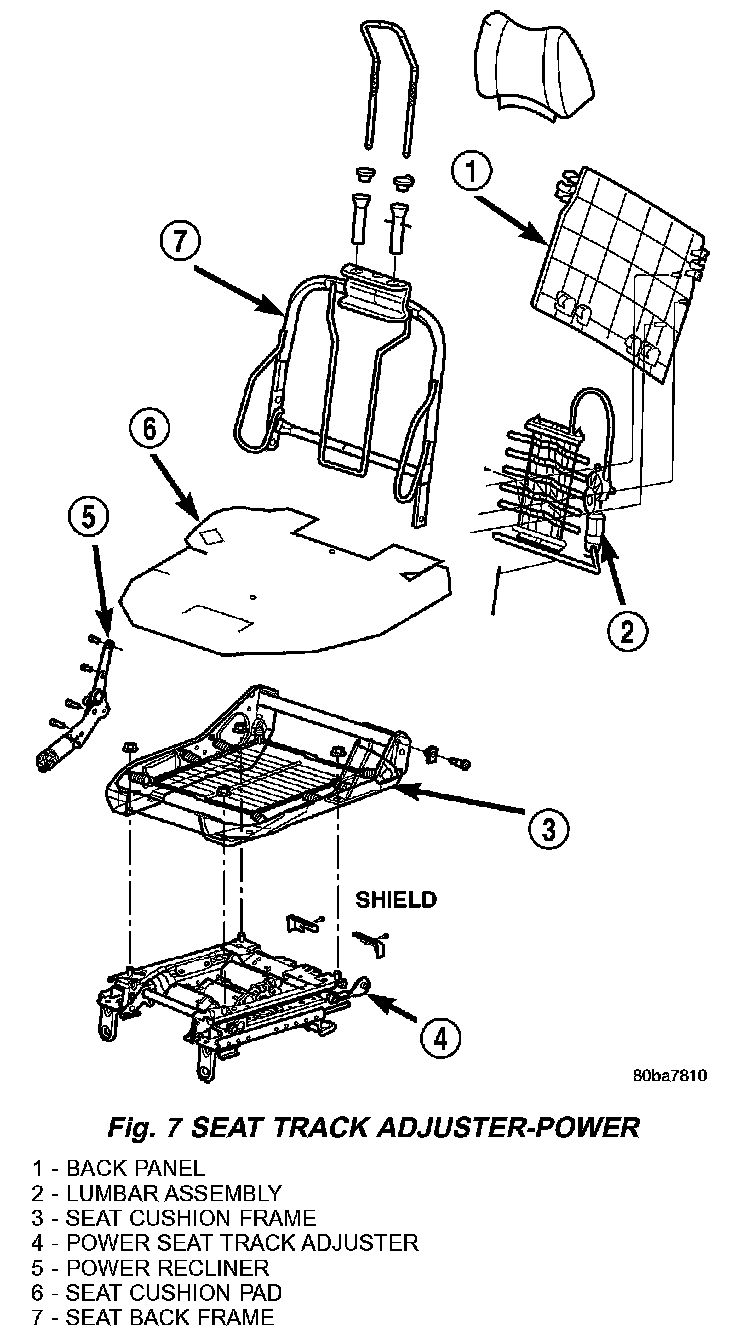

Fig. 7:

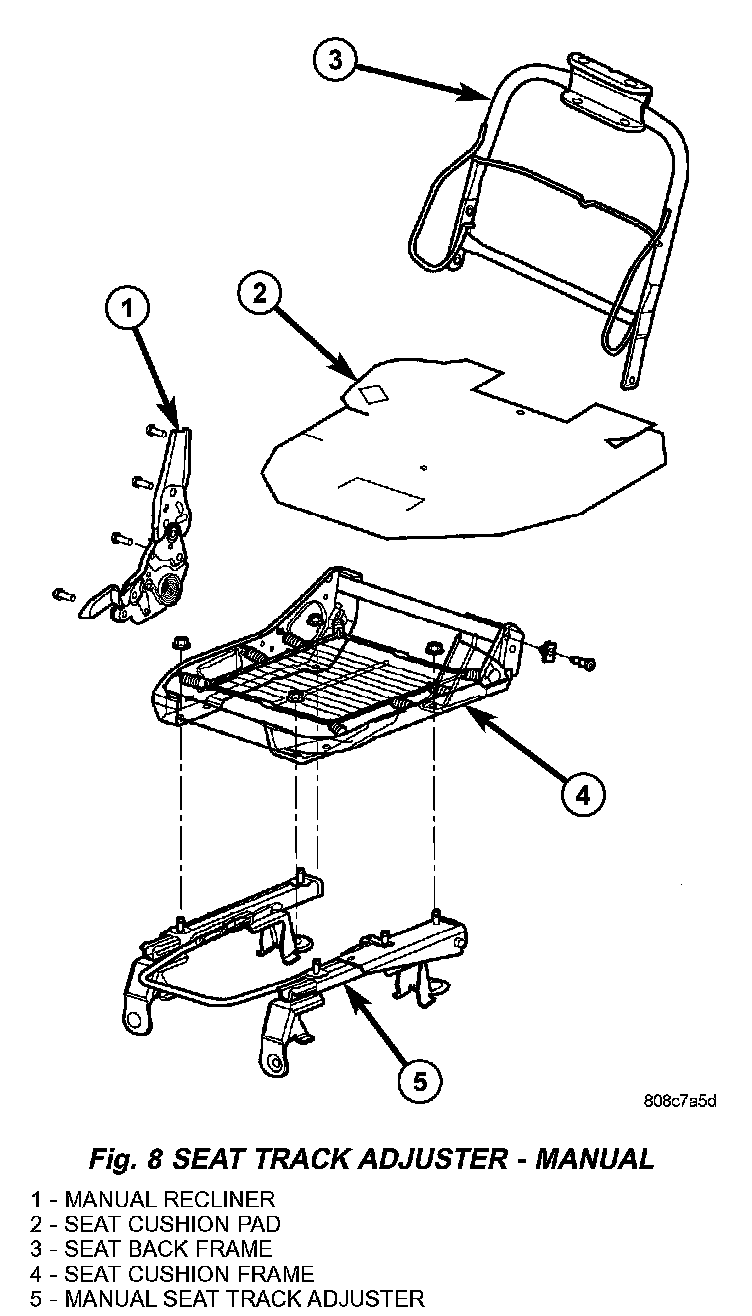

Fig. 8:
3. Remove nuts attaching seat track adjuster to seat cushion frame (Fig. 7) and (Fig. 8). Roll cushion trim cover up to access the two front nuts.
4. Disengage clips attaching wire harness to adjuster.
5. Disengage seat memory module connector, if equipped.
6. Separate seat track from seat cushion frame.
INSTALLATION
1. Transfer seat memory module, if equipped.
2. Position seat track on seat cushion frame.
3. Route harness through frame and engage clips attaching wire harness to adjuster.
4. Engage seat memory module connector, if equipped.
5. Install nuts attaching seat track adjuster to seat cushion frame and tighten to 28 N.m (20 ft.lbs.).
6. Install the side shield.
7. Install seat.
