B-Pillar Upper Trim
B-PILLAR UPPER TRIMREMOVAL
Fig. 2:
1. Using a trim stick or another suitable wide flat-bladed tool, gently pry the top of the turning loop trim cover to unsnap it from the height adjuster and access the screw that secures the front seat belt turning loop to the adjuster on the upper b-pillar. (Fig. 2)

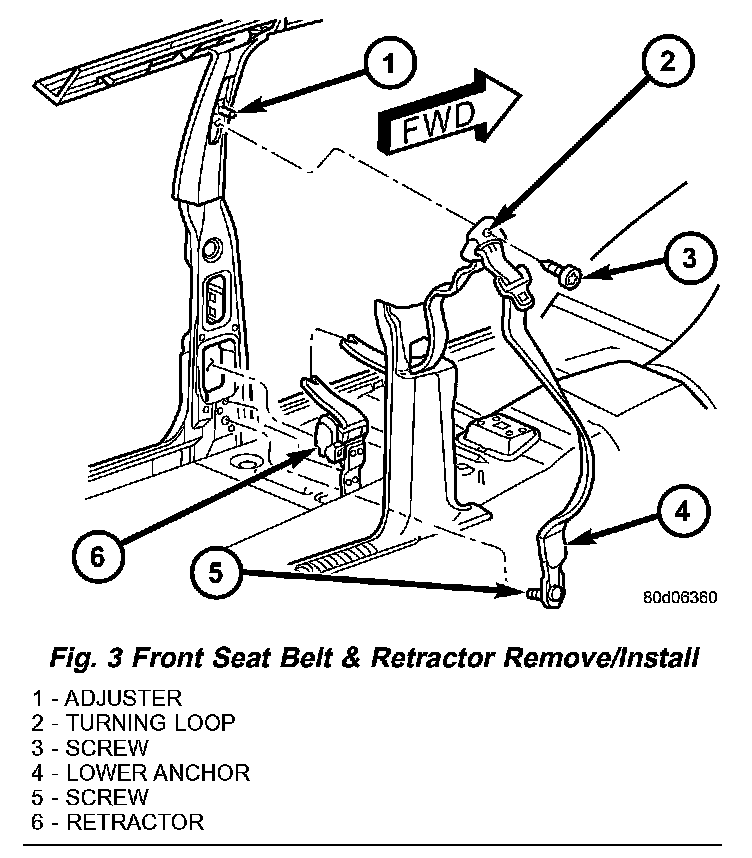

Fig. 3:
2. Remove the screw that secures the seat belt turning loop to the height adjuster on the upper b-pillar. (Fig. 3)
Fig. 1:
3. Remove the seat belt turning loop from the height adjuster.
4. Remove the screw attaching lower b-pillar trim. (Fig. 1)
5. Pull lower b-pillar trim out far enough to remove upper trim panel.
6. Grasp upper b-pillar trim at lower edge and pull outward then down to detach from b-pillar.
INSTALLATION
1. Position b-pillar trim panel on b-pillar. (Fig. 1)
2. Install screw attaching lower b-pillar trim panel.
3. Position the seat belt turning loop onto the height adjuster on the upper B-pillar.
4. Install screw that secures the seat belt turning loop to the height adjuster and tighten to 37 N.m (27 ft. lbs.).
5. Using hand pressure, press the top of the turning loop trim cover to snap it onto the height adjuster and cover the screw that secures the front seat belt turning loop to the adjuster on the upper B-pillar. (Fig. 3)
