Front Door Trim Panel

REMOVAL
1. Remove trim plug from mirror flag bezel.

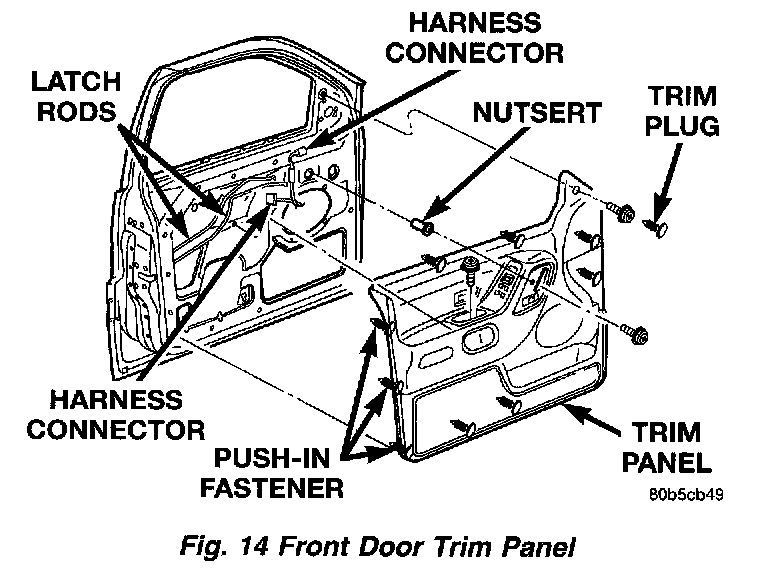

Fig.14 Front Door Trim Panel:

2. Remove three screws attaching trim panel to door.
3. Using trim remover (C-4829 or equivalent), detach trim panel perimeter push-in fasteners from door inner panel.
4. Lift trim panel upward and separate from door.
5. If equipped, disconnect harness connectors for power accessories.
6. Disconnect latch rods from inside handle actuator.
7. Separate trim panel from vehicle.

INSTALLATION
1. Connect latch rods to inside handle actuator.
2. If equipped, connect harness connectors to power accessories.
3. Position trim panel on door inner panel.
4. Press trim panel push-in fasteners inward around perimeter of door.
5. Install screws attaching trim panel to door.
6. Install trim plug in mirror flag bezel.
