Door Sill Trim Panel

DOOR SILL TRIM

REMOVAL

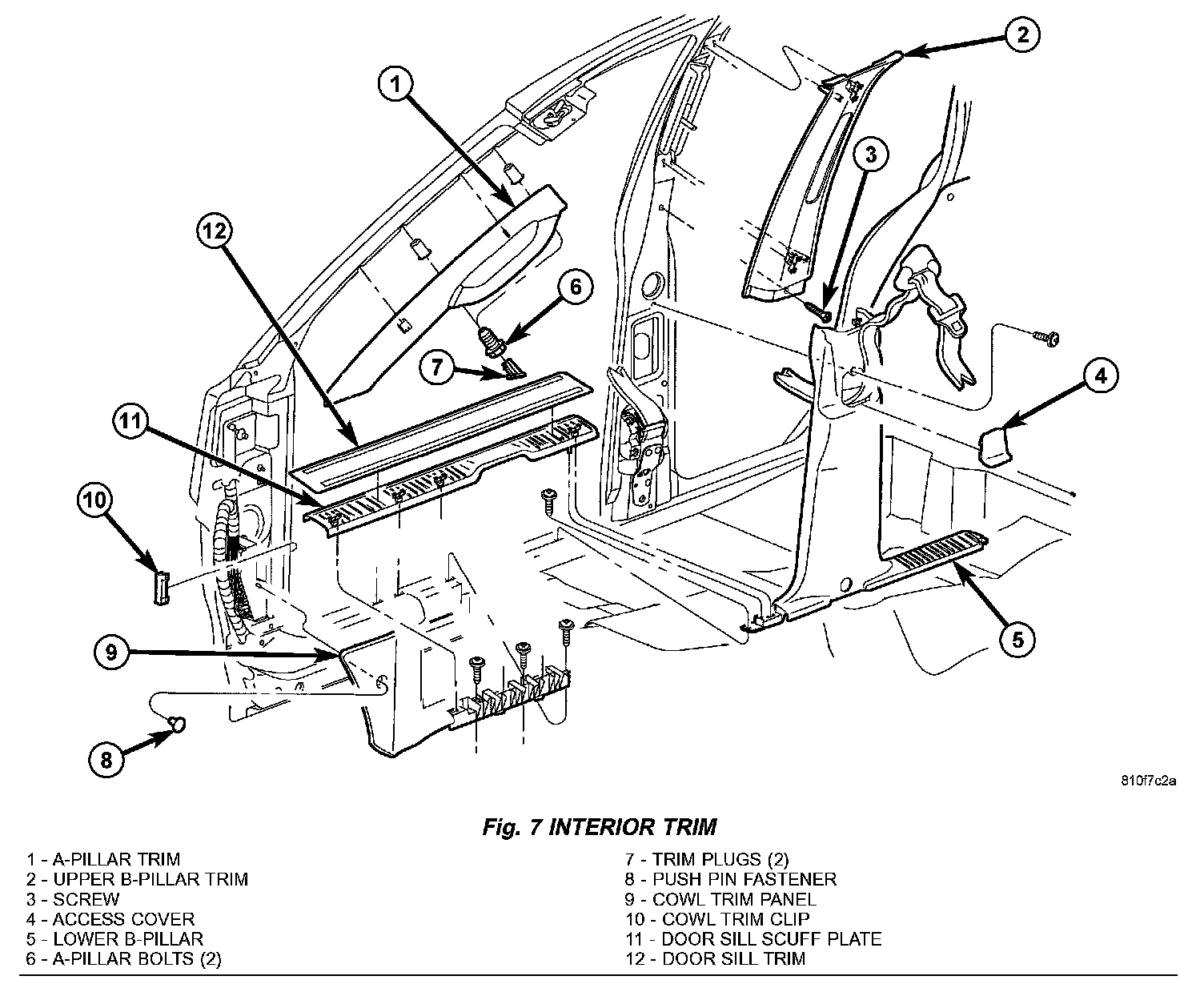

Fig. 7:

The sill trim molding is held in place with molded in snap retainers (Fig. 7).
1. Using a trim stick C-4755 or equivalent, carefully pry up one corner of the sill trim.
2. Grasp the edge of the trim and pull up gently to release the snap retainers.

INSTALLATION
1. Position the sill molding on the door sill.
2. Press the snap retainers into place.
