Trunk / Liftgate Interior Trim Panel: Service and Repair

TRIM PANEL

REMOVAL

NOTE: The liftgate trim panel is attached with screws and clips.

1. Raise the liftgate.

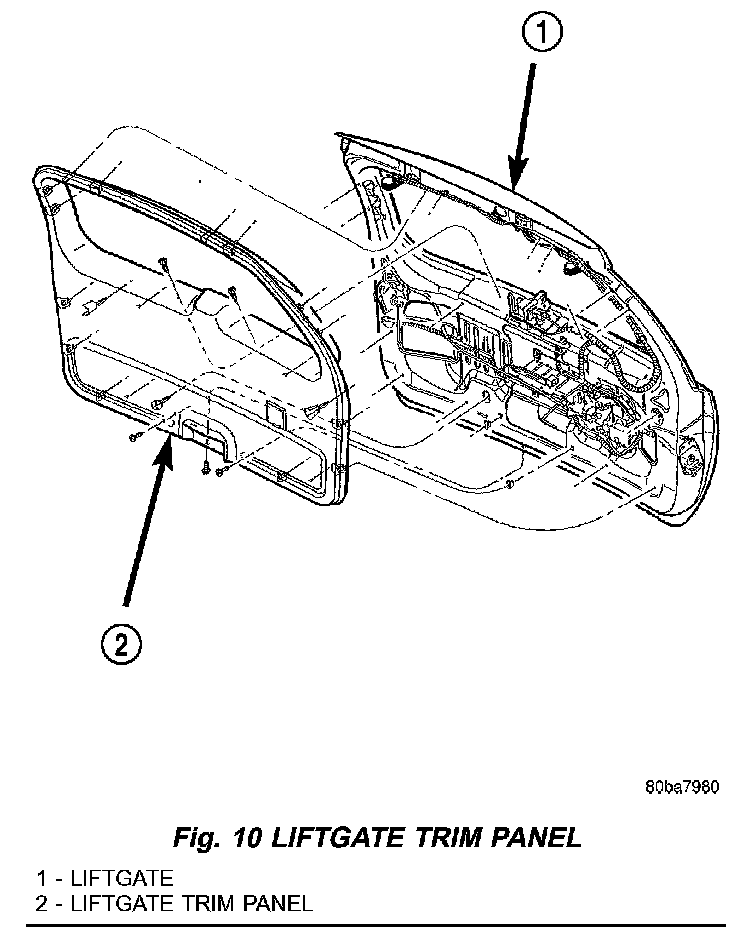

Fig.10:

2. Remove the screws securing the liftgate trim panel to the liftgate (Fig. 10).
3. Disconnect the rear window defroster wires.
4. Using a trim stick C-4755 or equivalent, pry the liftgate trim panel off the liftgate.

INSTALLATION

NOTE: The liftgate trim panel is attached with screws and clips.

1. Align the liftgate trim panel spring clips and press the panel into the liftgate.
2. Install the trim panel screws.
3. Connect the rear defroster wires.
