Rear Door: Service and Repair

DOOR

REMOVAL

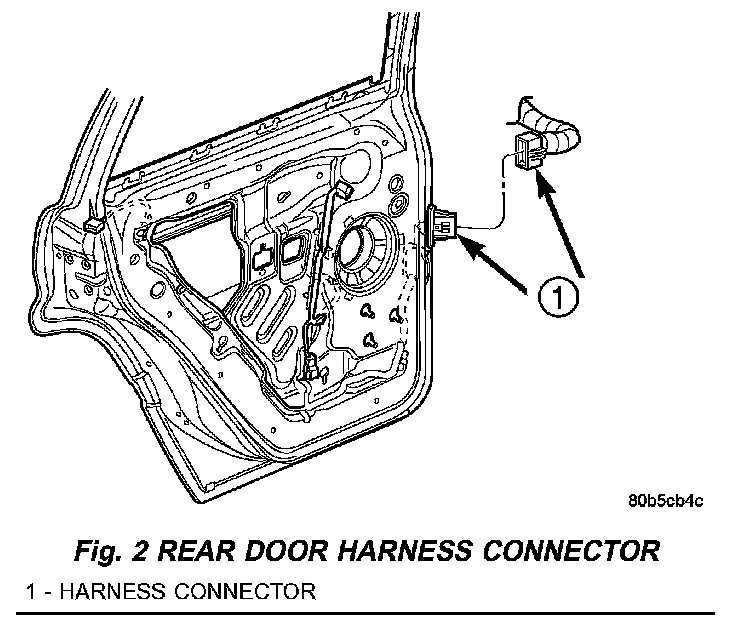

Fig. 2:

1. Disconnect rear door harness connector (Fig. 2).
2. Support door with suitable lifting device.
3. Remove the check strap screws to the b-pillar.
4. Remove the four nuts from the door hinge studs.
5. Separate door from vehicle.

INSTALLATION
1. Position door at vehicle and align hinges.
2. Install the hinge nuts.
3. Install the check strap to body screws.
4. Connect rear door harness connector (Fig. 2).
