Front Door: Service and Repair

DOOR

REMOVAL

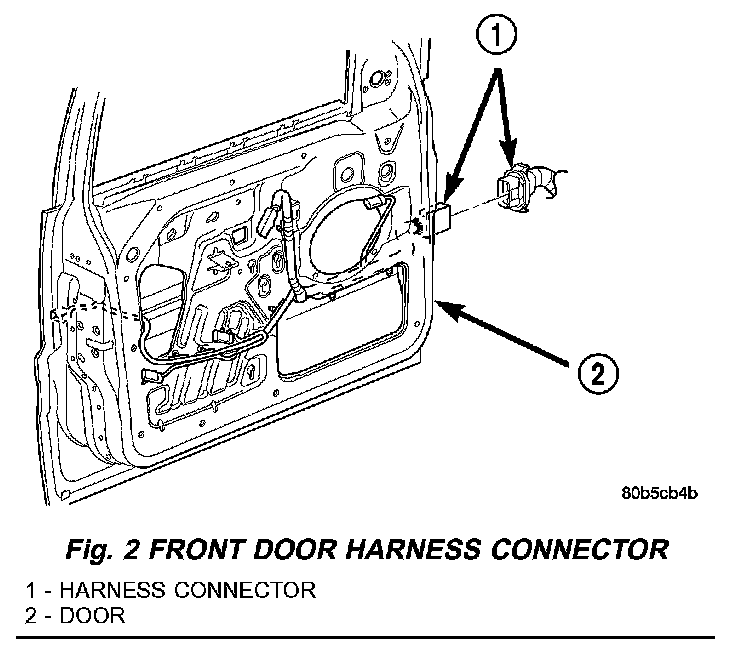

Fig. 2:

1. Disconnect front door harness connector (Fig. 2).
2. Support door with padded floor jack.
3. Remove the check strap to body screws.
4. Remove the four nuts from the door hinge studs.
5. Separate door from vehicle.

INSTALLATION
1. Position door at vehicle and align hinges.
2. Install the hinge nuts.
3. Connect front door harness connector (Fig. 2).
4. Install the check strap to body screws.
