Front Door Latch: Service and Repair

LATCH

REMOVAL
1. Remove glass run channel.

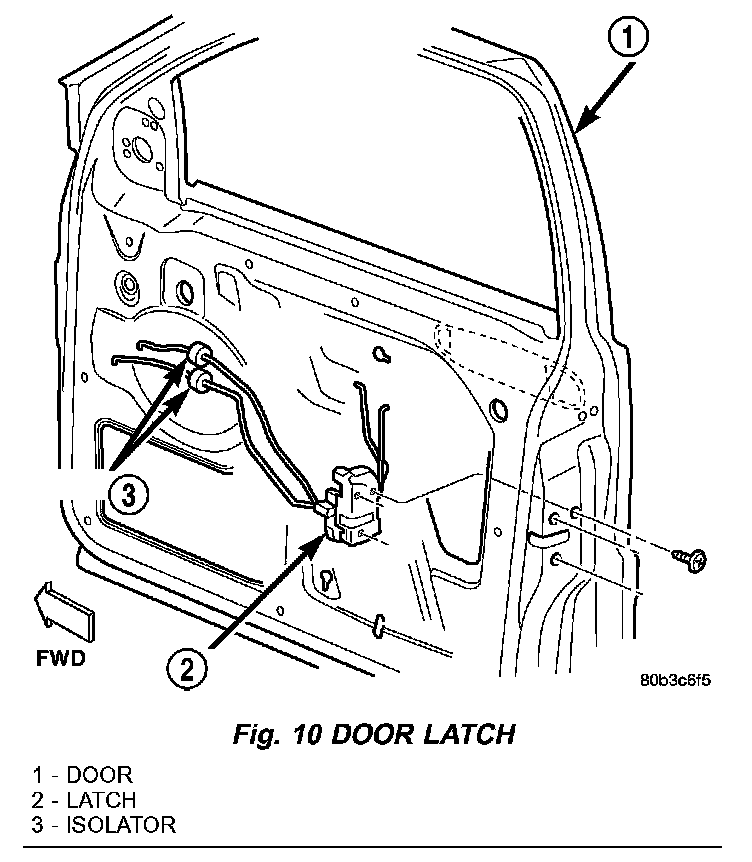

Fig. 10:

2. Remove screws attaching door latch to door (Fig. 10).
3. Disconnect all rods from door latch.
4. Disconnect wire harness connector.
5. Separate door latch from door.

INSTALLATION
1. Position door latch at door.
2. Connect wire harness connector.
3. Connect all rods to door latch.
4. Install screws attaching door latch to door and tighten to 11 N.m (8 ft. lbs.). (Fig. 10)
5. Install glass run channel.
6. Adjust the latch.
