Front Door Latch: Adjustments

ADJUSTMENTS

ADJUSTMENT

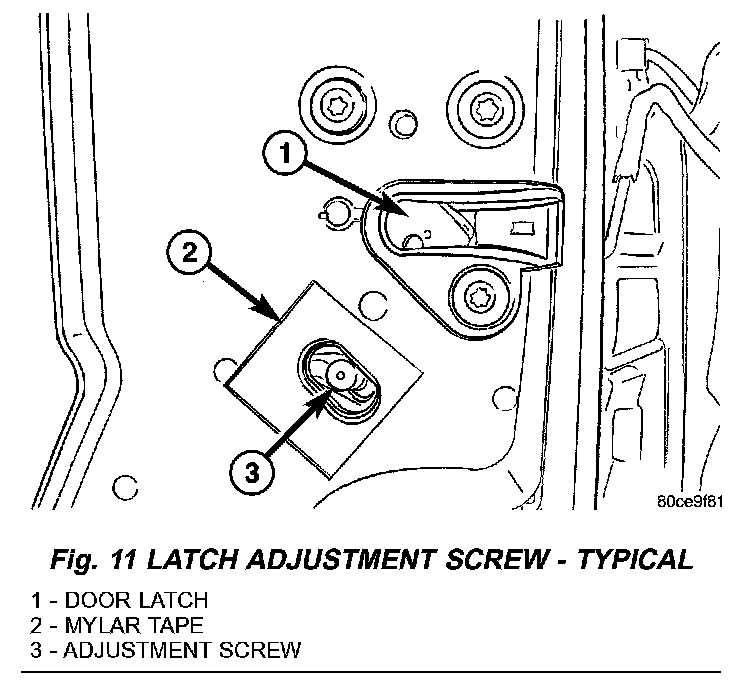

Fig. 11:

1. Locate access hole and remove the Mylar tape covering it. (Fig. 11)
2. Insert a 5/32-inch hex-wrench through hole and into adjustment screw. Loosen screw.
3. Operate outside handle several times to release any restriction because of mis-alignment.
4. Tighten adjustment screw to 3 N.m (30 in. lbs.).
5. Test handle for proper operation.
