Speaker Replacement - Rear Door

REAR DOOR SPEAKER

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the trim panel from the rear door.

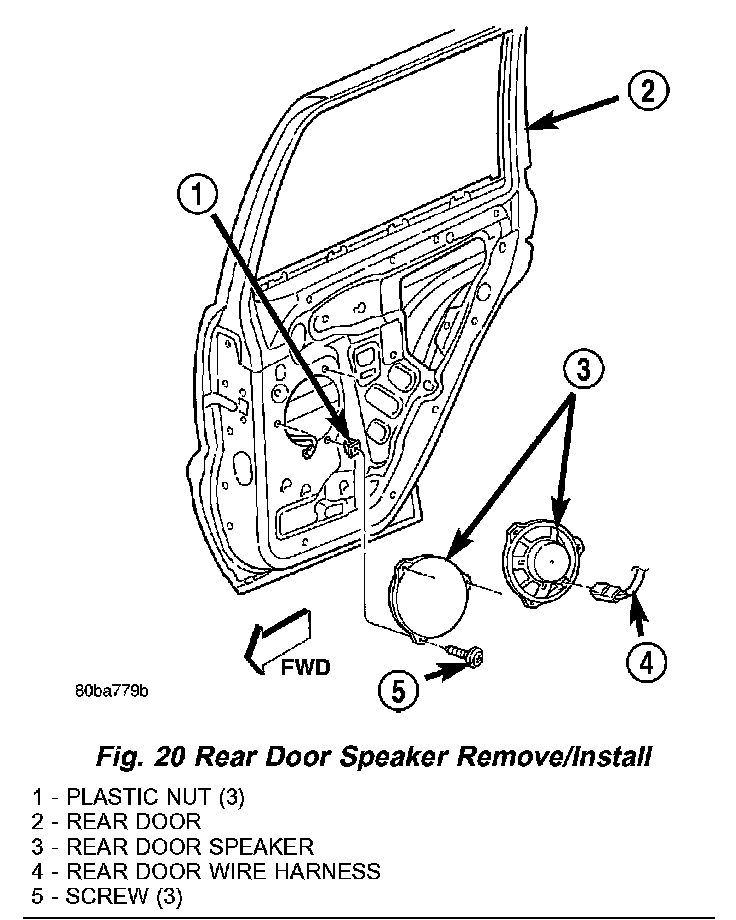

Fig. 20 Rear Door Speaker Remove/Install:

3. Remove the three screws that secure the speaker to the rear door inner panel.
4. Disconnect the rear door wire harness connector from the speaker connector receptacle.
5. Remove the speaker from the rear door inner panel.

INSTALLATION
1. Position the speaker to the rear door inner panel.
2. Reconnect the rear door wire harness connector to the speaker connector receptacle.
3. Position the speaker onto the rear door inner panel.
4. Install and tighten the three screws that secure the speaker to the rear door inner panel. Tighten the screws to 2.2 Nm (20 in. lbs.).
5. Install the trim panel onto the rear door.
6. Reconnect the battery negative cable.
