Speaker Replacement - Front Door

FRONT DOOR SPEAKER

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the trim panel from the front door.

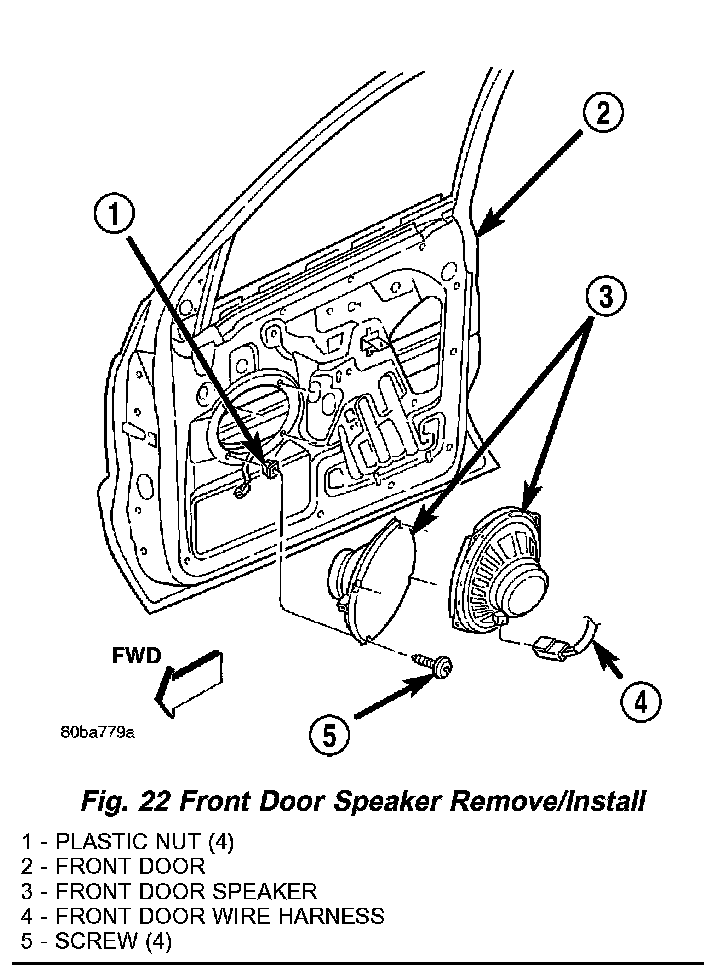

Fig. 22 Front Door Speaker Remove/Install:




3. Remove the four screws that secure the speaker to the front door inner panel.
4. Disconnect the front door wire harness connector from the speaker connector receptacle.
5. Remove the speaker from the front door inner panel.

INSTALLATION
1. Position the speaker to the front door inner panel.
2. Reconnect the front door wire harness connector to the speaker connector receptacle.
3. Position the speaker onto the front door inner door panel.
4. Install and tighten the four screws that secure the speaker to the front door inner panel. Tighten the screws to 2.2 Nm (20 in. lbs.).
5. Install the trim panel onto the front door.
6. Reconnect the battery negative cable.
