Amplifier: Service and Repair

AMPLIFIER

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Unlatch and lift the right rear seat cushion to the upright position.

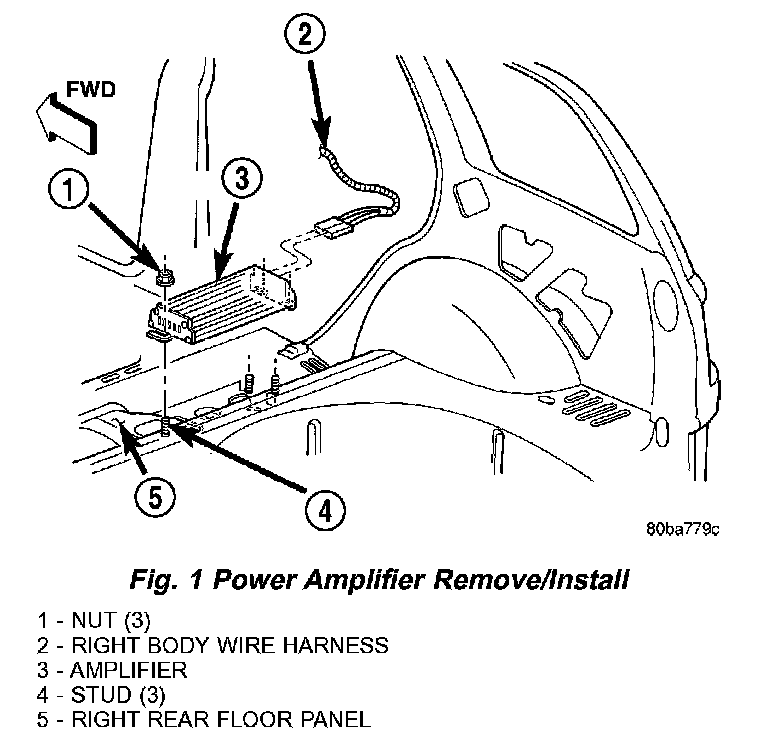

Power Amplifier Remove/Install:

3. Disconnect the two right body wire harness connectors from the amplifier.
4. Remove the three mounting nuts.
5. Remove the power amplifier.

INSTALLATION
1. Position the power amplifier onto the three floor panel studs.
2. Install the mounting nuts. Tighten the nuts to 11.8 Nm (105 in. lbs.).
3. Reconnect the two right body wire harness connectors.
4. Lower the right rear seat cushion to the floor panel.
5. Reconnect the battery negative cable.
