Pedal Positioning System: Service and Repair

REMOVAL - ADJUSTABLE PEDALS

NOTE: If possible put the pedals in the full forward position.

1. Disconnect the negative battery cable.
2. Remove the cluster bezel.
3. Remove the steering column opening cover.
4. Disconnect the module electrical connector.
5. Remove the brake light switch.

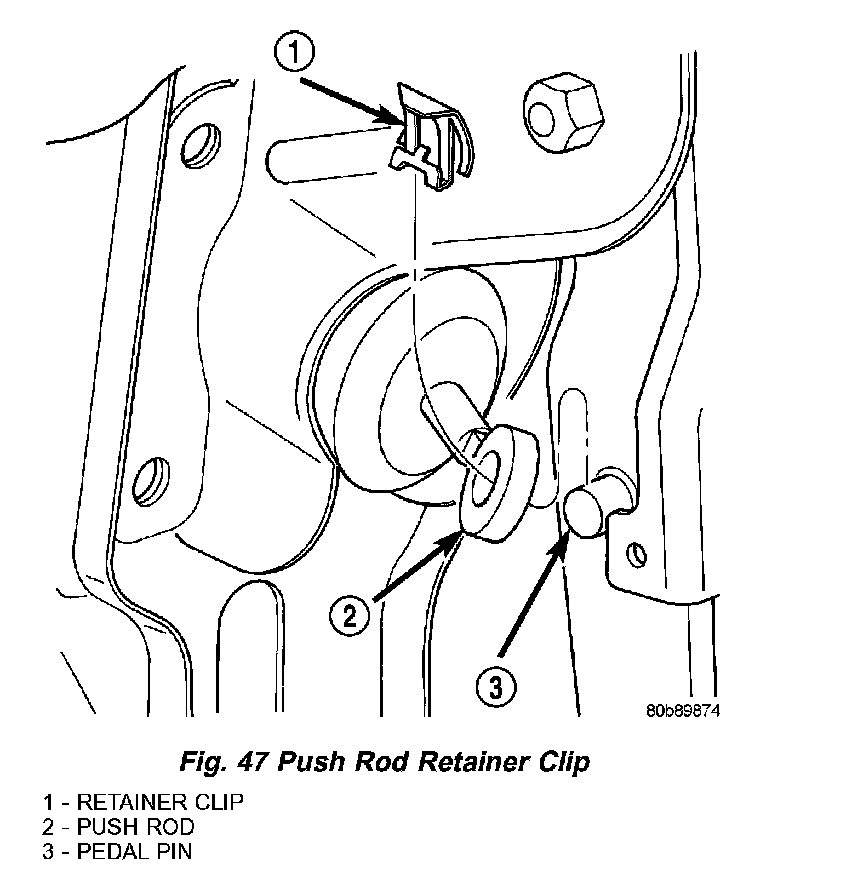

Push Rod Retainer Clip:

6. Disconnect the booster rod clip.
7. Disconnect the accelerator cable from the pedal.
8. Lock the steering wheel into place.

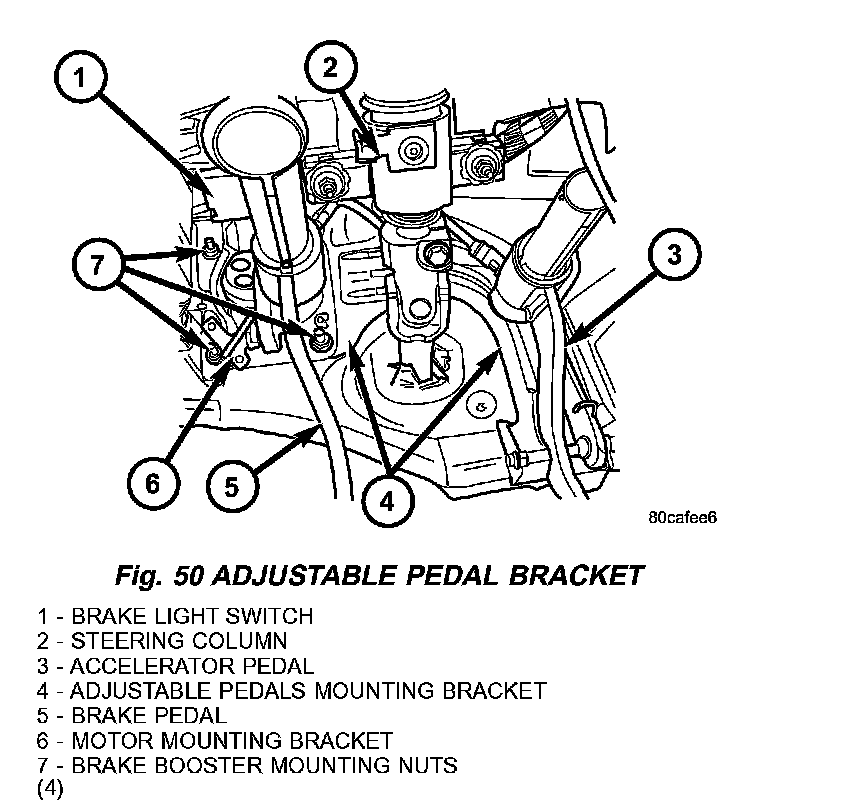

Adjustable Pedal Bracket:

9. Remove the lower steering shaft pinch bolt.
10. Separate the lower shaft coupler and push forward).

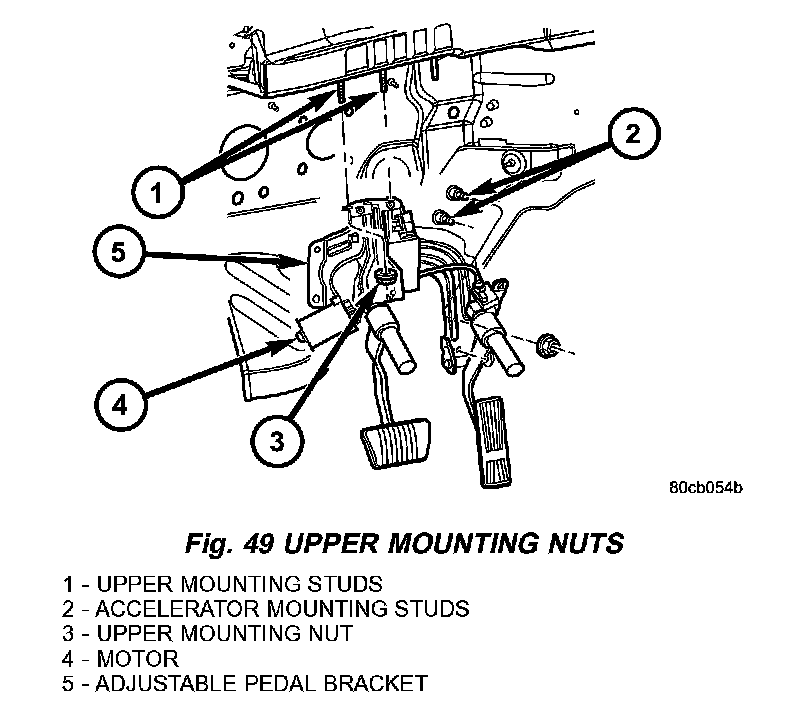

Upper Mounting Nuts:

11. Remove the two pedal bracket upper nuts.
12. Remove the brake booster nuts.

Accelerator Mounting Bracket:

13. Remove the accelerator pedal nuts .
14. Remove the ICU mounting bracket nuts and bolts and move the ICU and booster forward this will allow enough clearance to remove the adjustable pedal bracket from over the booster push rod.
15. Remove the pedal from the vehicle.
16. Transfer the module if needed.

INSTALLATION - ADJUSTABLE PEDALS
1. Install the pedal to the vehicle.
2. Reposition the ICU and booster, Install the ICU mounting bracket nuts and bolts.
3. Install the brake booster nuts. Tighten to 28 Nm (21 ft. lbs.).
4. Install the pedal bracket upper nuts. Tighten to 12 Nm (9 ft. lbs.).
5. Install the accelerator pedal nuts. Tighten to 28 Nm (21 ft. lbs.).
6. Install the lower steering shaft coupler over the shaft.
7. Install the lower steering shaft pinch bolt.
8. Unlock the steering wheel.
9. Reconnect the accelerator cable to the pedal.
10. Reconnect the booster rod clip.
11. Install the brake light switch.
12. Reconnect the module electrical connector.
13. Install the steering column opening cover.
14. Install the cluster bezel.
15. Reconnect the negative battery cable.
