P2702

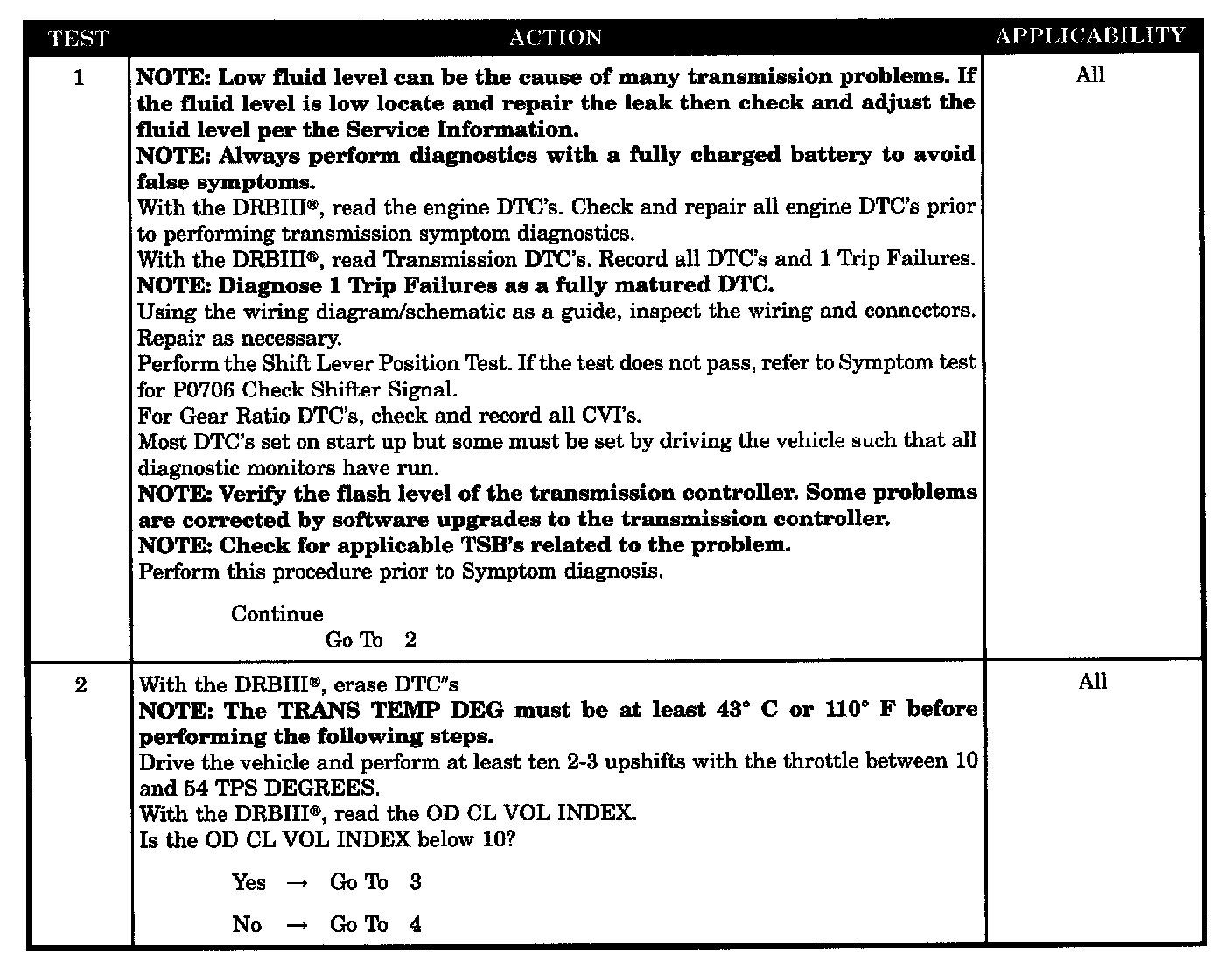

Test 1-2:

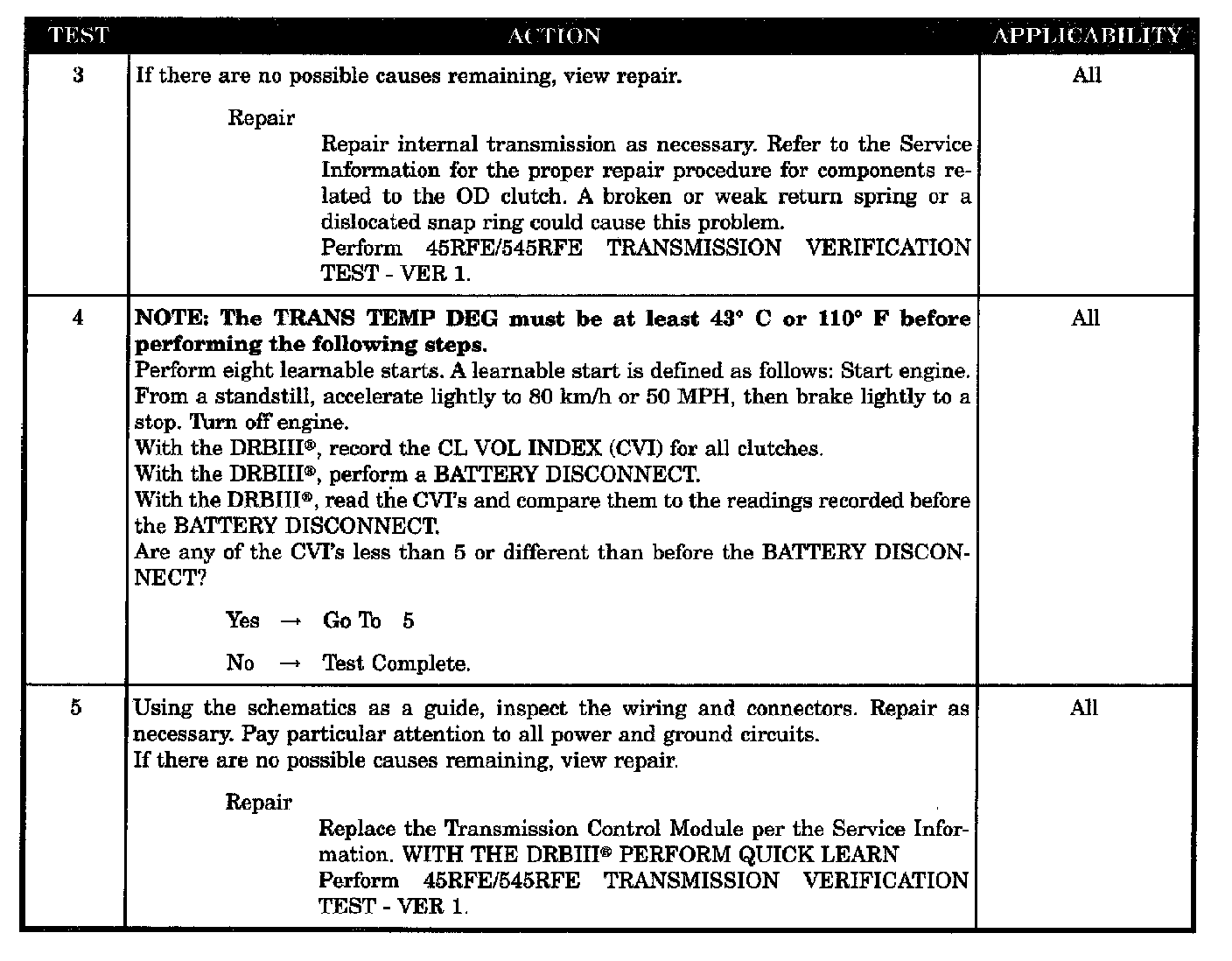

Test 3-5:

SYMPTOM
P2702-INADEQUATE ELEMENT VOLUME OD

WHEN MONITORED
Whenever the engine is running. The OD Clutch Volume is updated during a 2-3 upshift with a throttle angle between 10° and 54°. Transmission temperature must be at least 43° C or 110° F.

SET CONDITION
When the OD Clutch Volume falls below 5.

POSSIBLE CAUSES
- TRANSMISSION CONTROL MODULE
