P2701

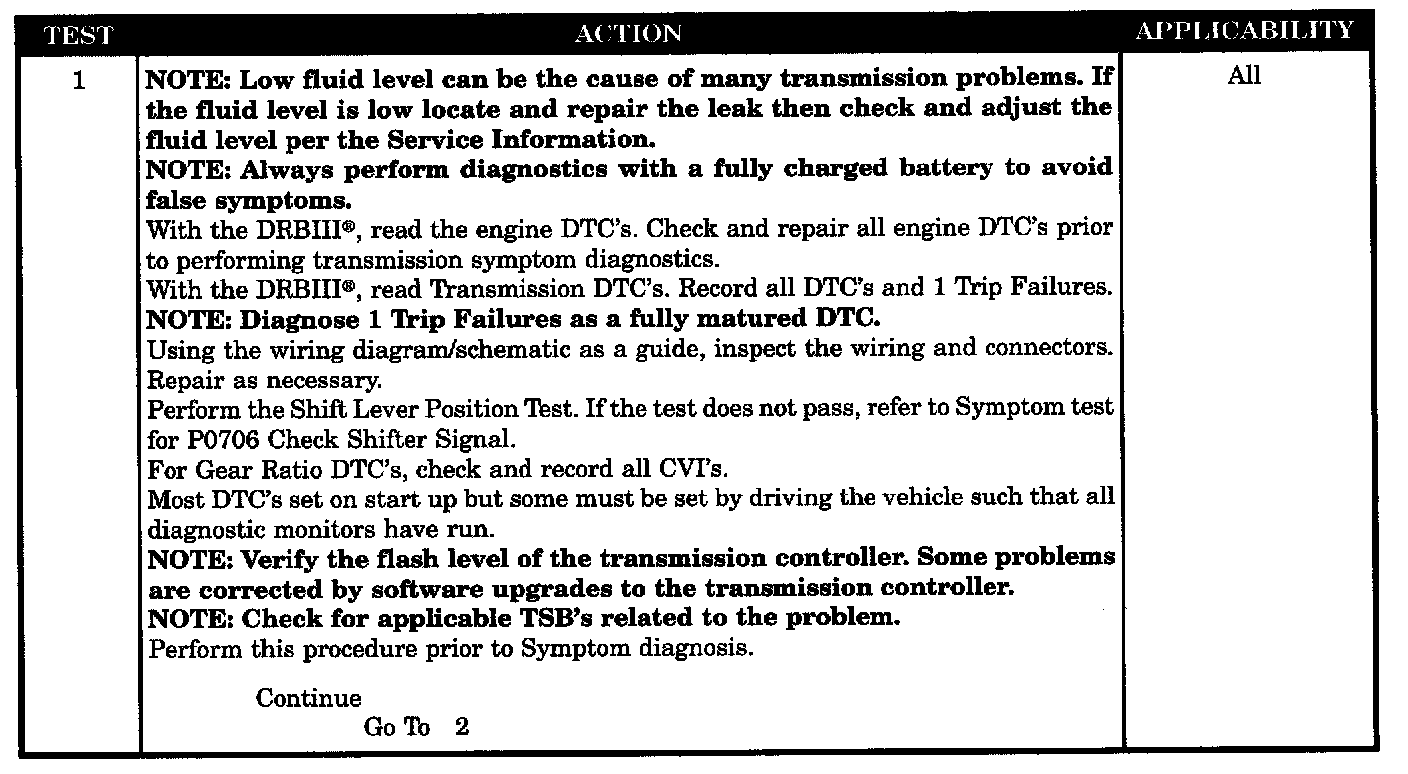

Test 1:

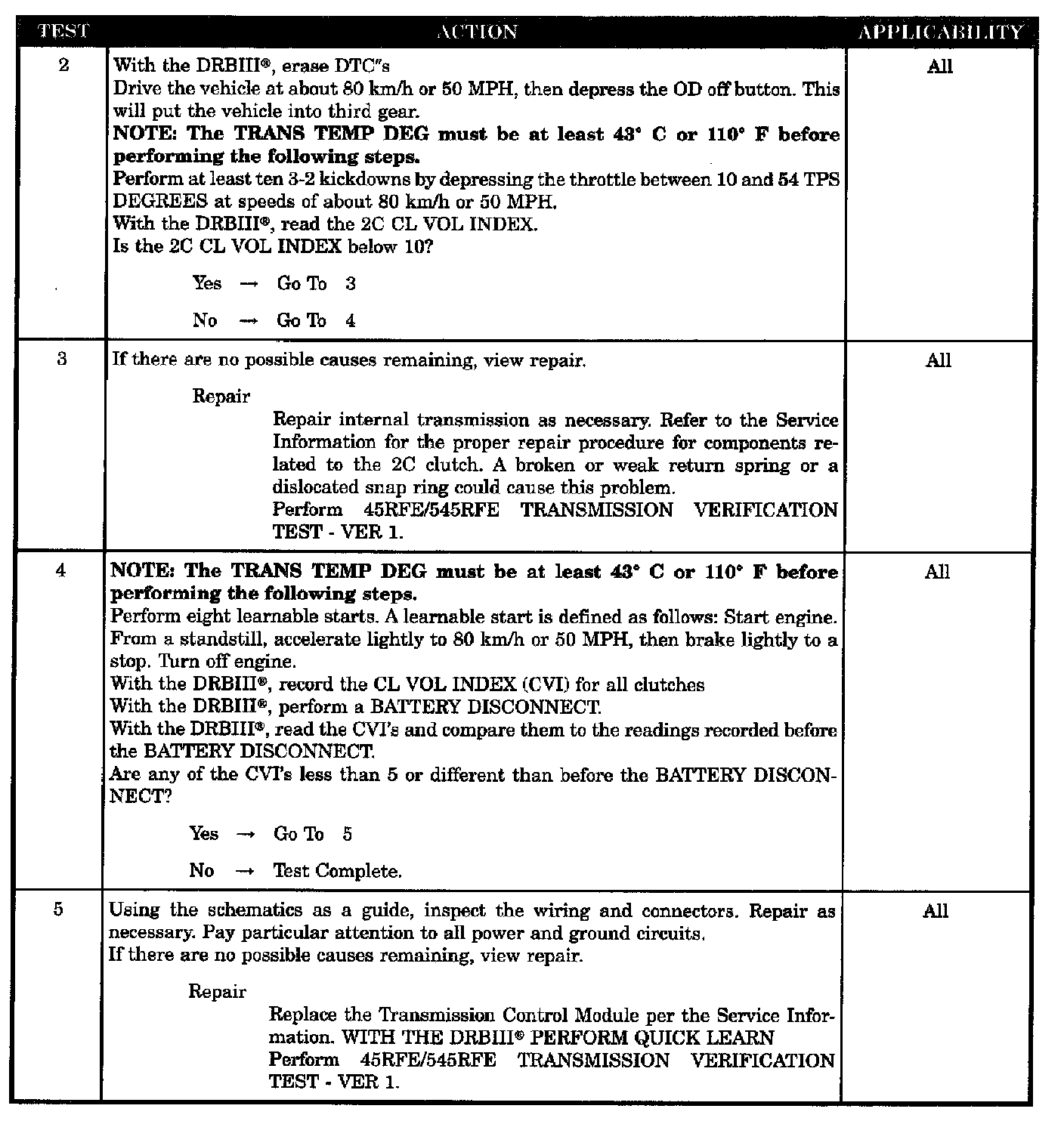

Test 2-5:

SYMPTOM
P2701-INADEQUATE ELEMENT VOLUME 2C

WHEN MONITORED
Whenever the engine is running. The 2C Clutch Volume is updated during a 3-2 kickdown with a throttle angle between 10° and 54°. Transmission temperature must be at least 43° C or 110° F.

SET CONDITION
When the 2C Clutch Volume falls below 5.

POSSIBLE CAUSES
- TRANSMISSION CONTROL MODULE
