P2700

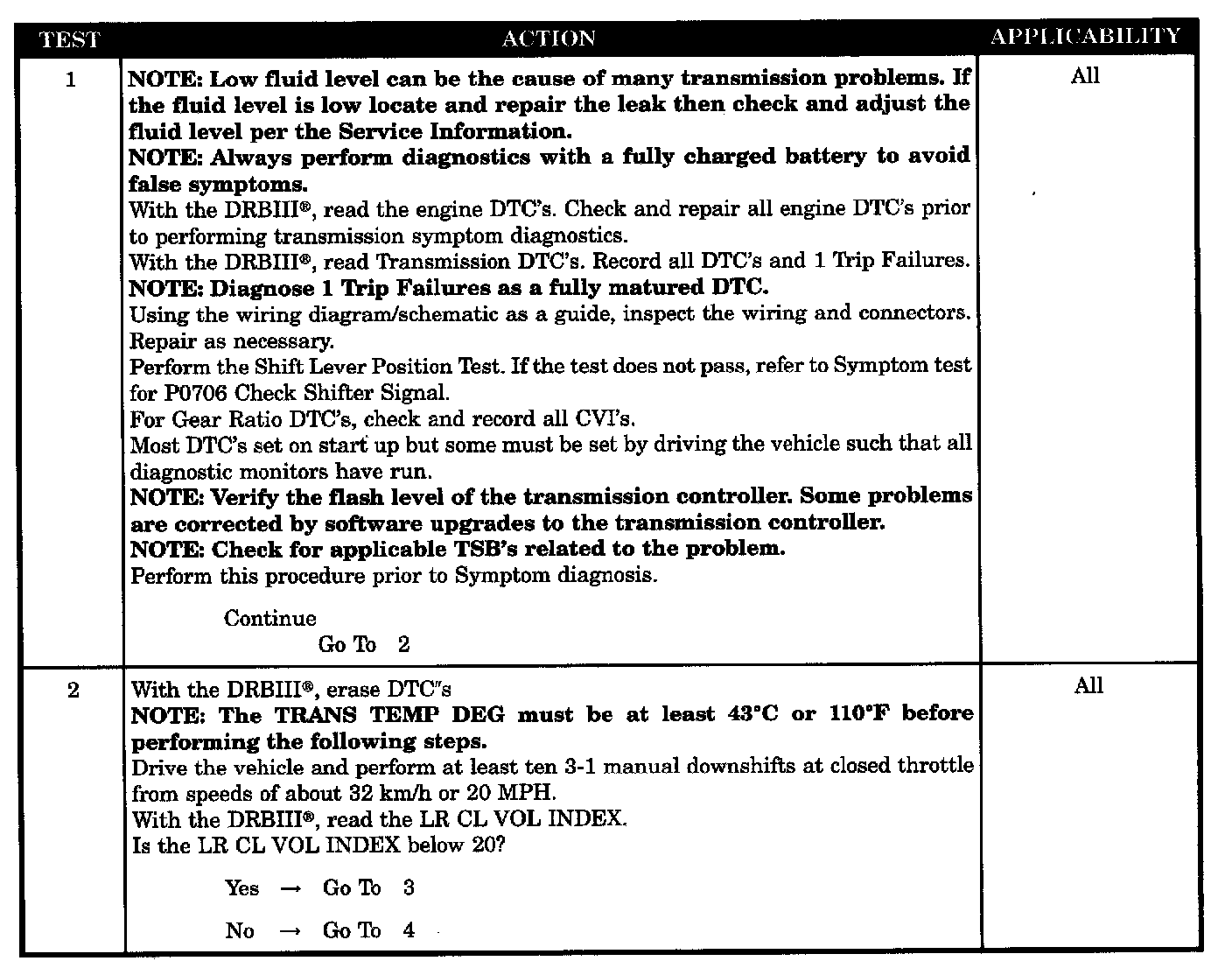

Test 1-2:

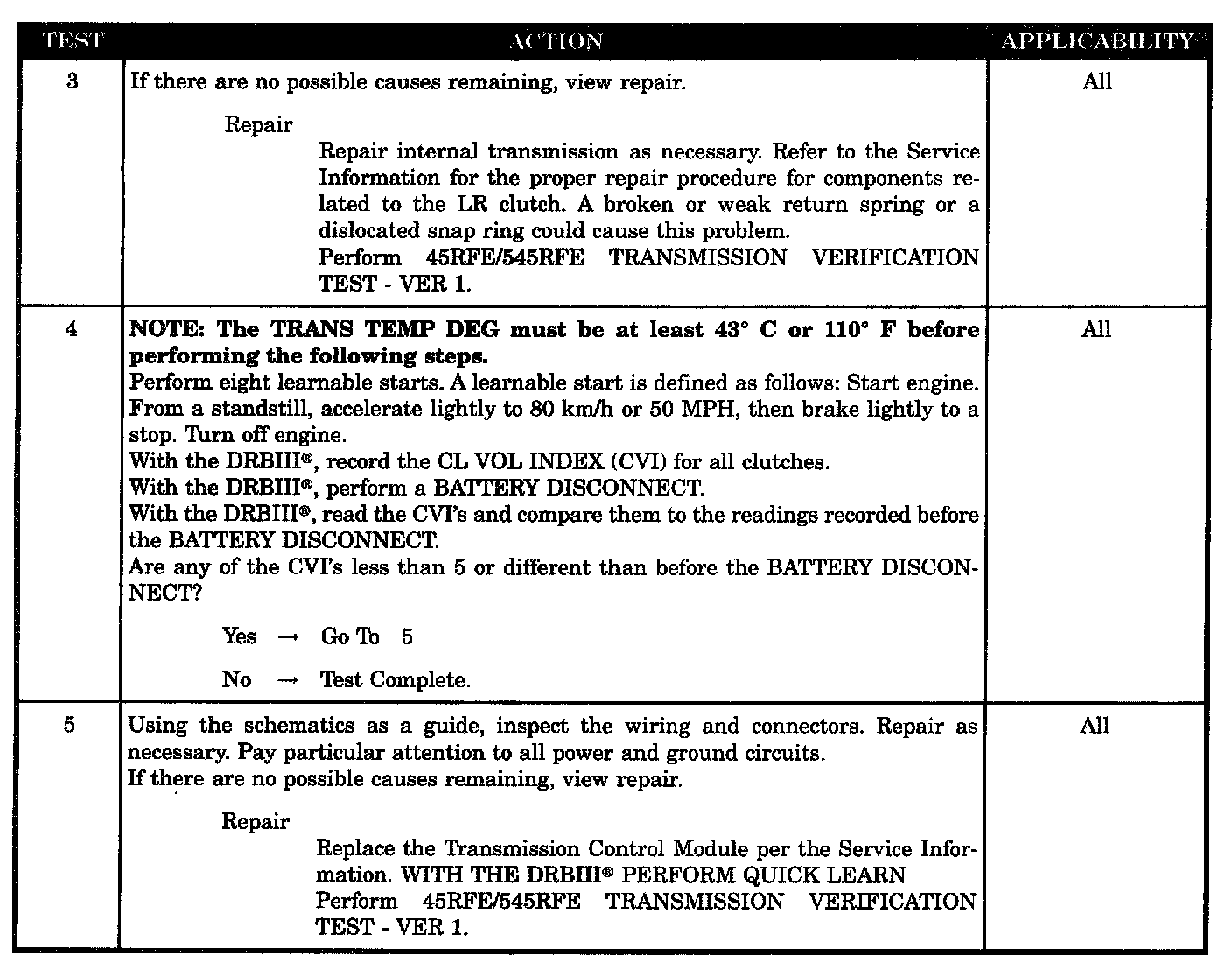

Test 3-5:

SYMPTOM
P2700-INADEQUATE ELEMENT VOLUME LR

WHEN MONITORED
Whenever the engine is running. The LR Clutch Volume is updated during a 3-1 or 2-1 manual downshift with a throttle angle below 5°. Transmission temperature must be at least 43° C or 110° F.

SET CONDITION
When the LR Clutch Volume falls below 16.

POSSIBLE CAUSES
- TRANSMISSION CONTROL MODULE
