P1775

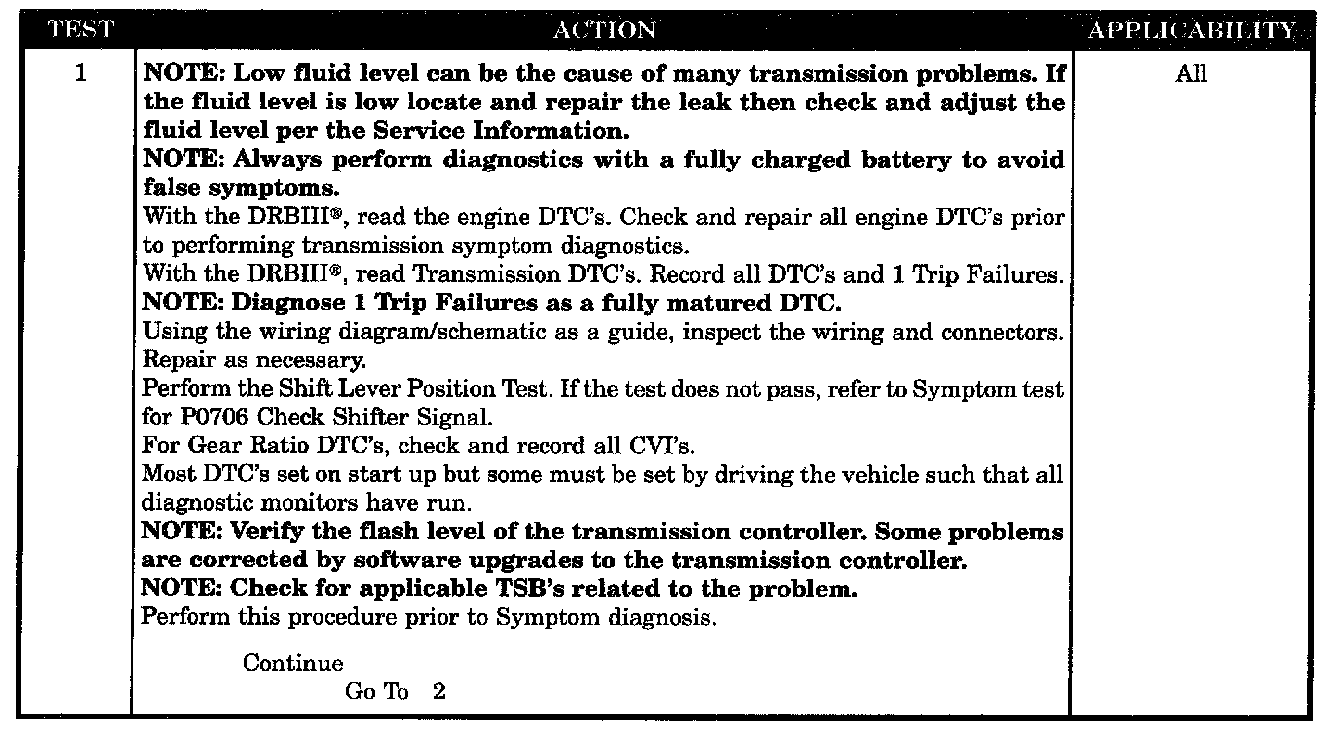

Test 1:

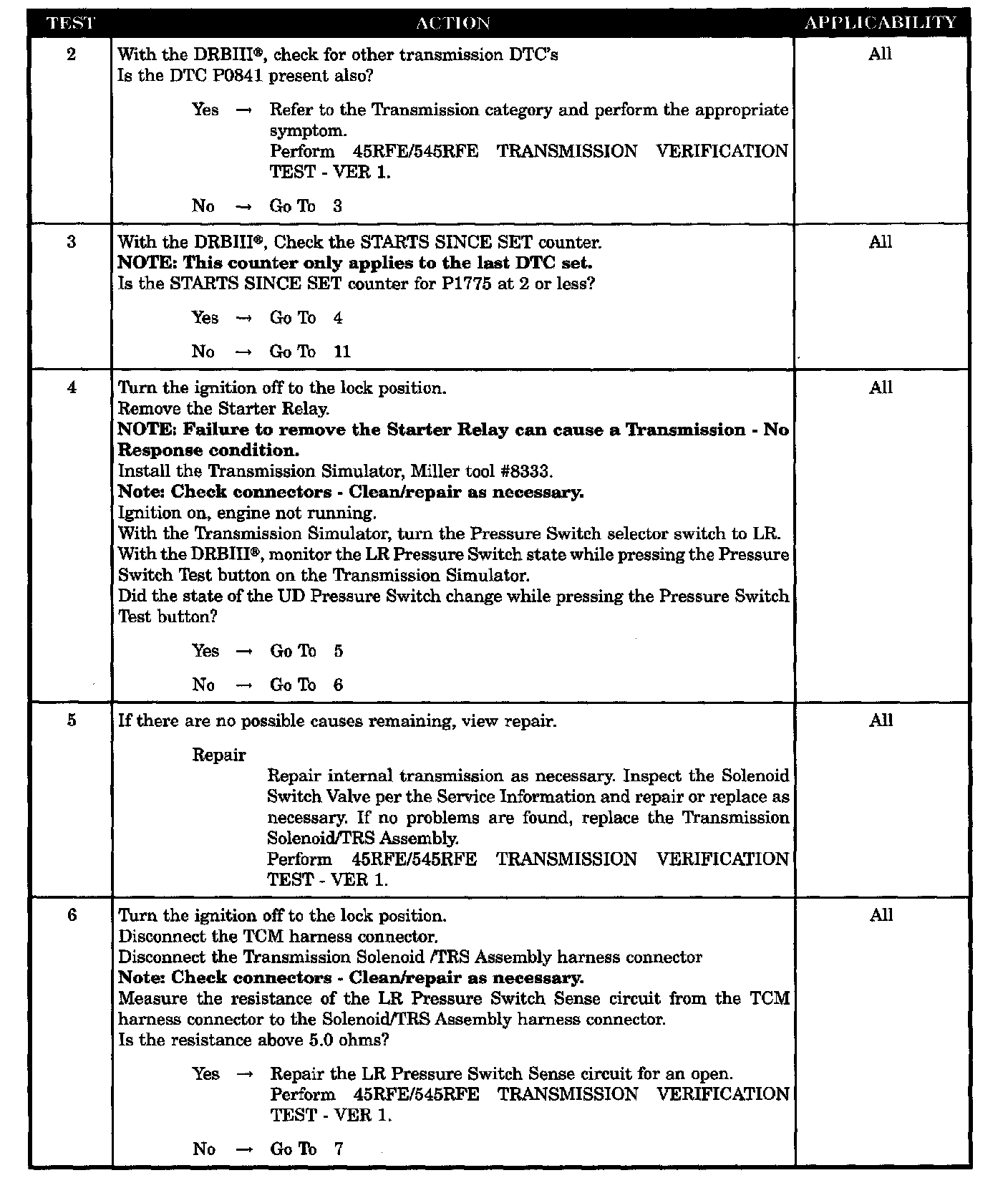

Test 2-6:

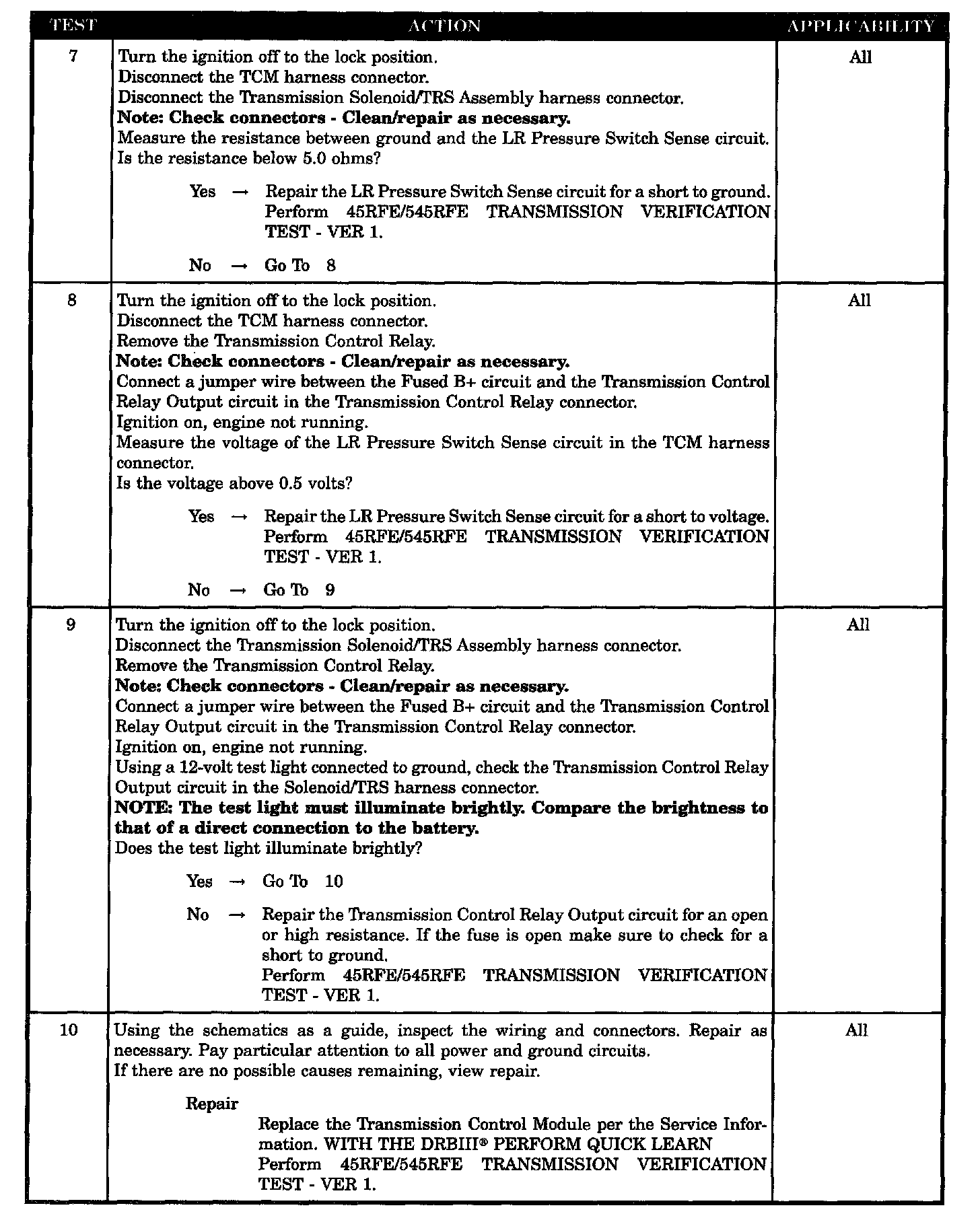

Test 7-10:

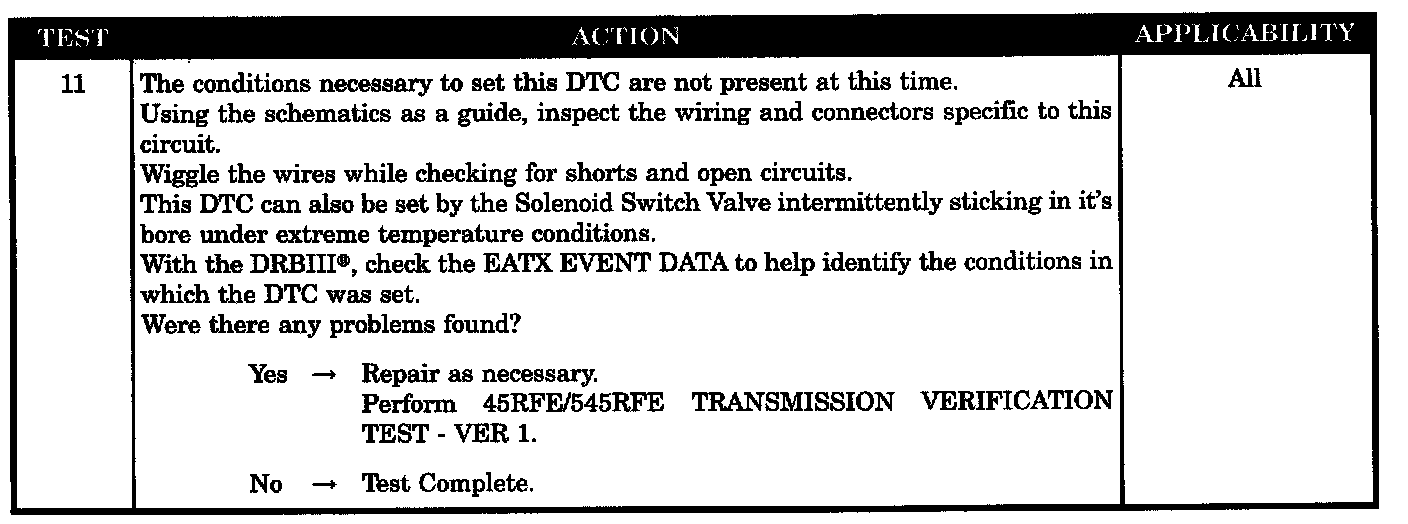

Test 11:

SYMPTOM
P1775-SOLENOID SWITCH VALVE LATCHED IN TCC POSITION

WHEN MONITORED
During an attempted shift into 1st gear.

SET CONDITION
This DTC is set if three unsuccessful attempts are made to get into 1st gear in one given ignition start. This DTC can take up to five minutes of problem identification before illuminating the MIL.

POSSIBLE CAUSES
- RELATED DTC P0841 PRESENT
- LR PRESSURE SWITCH SENSE CIRCUIT OPEN
- TRANSMISSION CONTROL RELAY OUTPUT CIRCUIT OPEN
- LR PRESSURE SWITCH SENSE CIRCUIT SHORT TO GROUND
- LR PRESSURE SWITCH SENSE CIRCUIT SHORT TO VOLTAGE
- INTERNAL TRANSMISSION
- TRANSMISSION CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS
