P1715

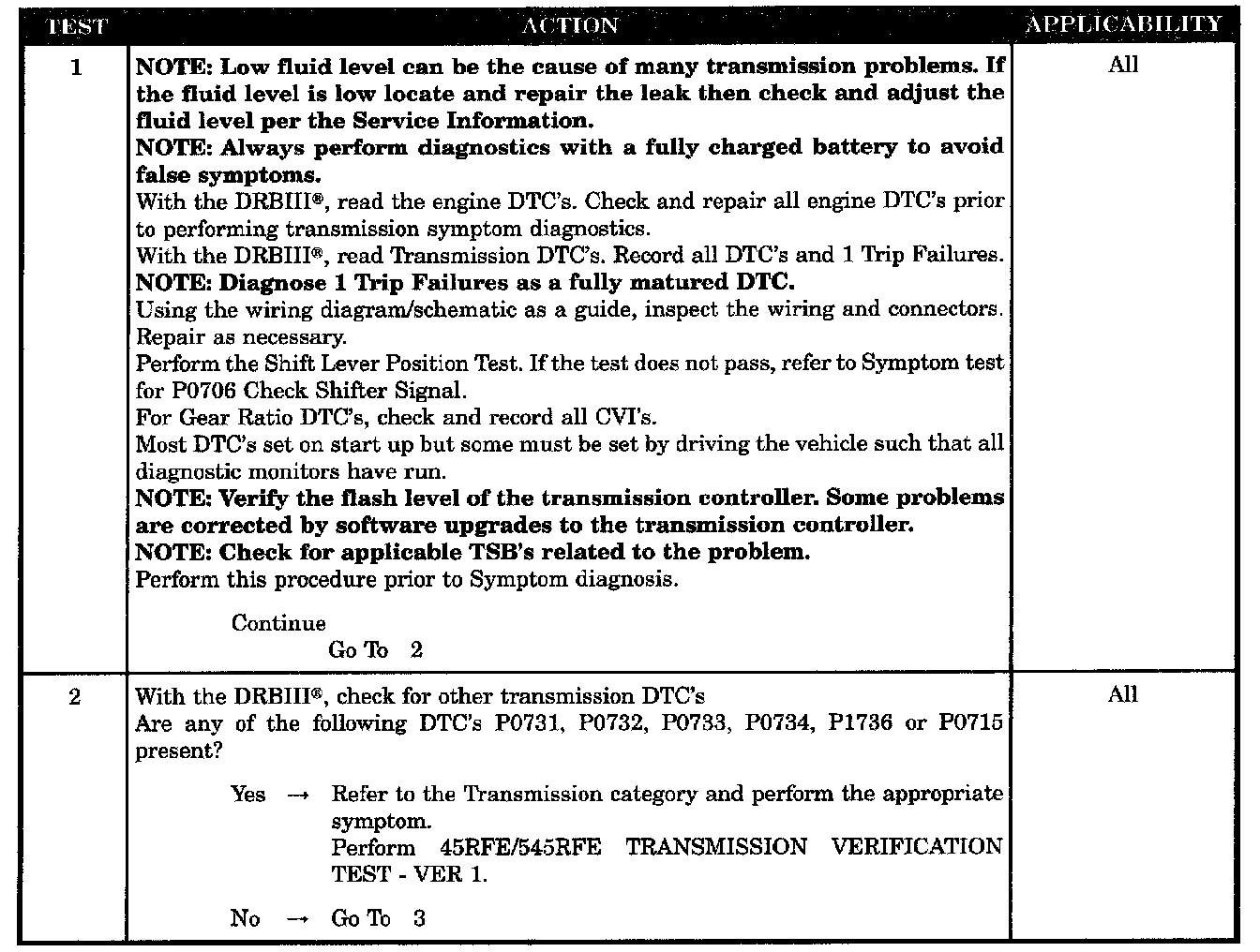

Test 1-2:

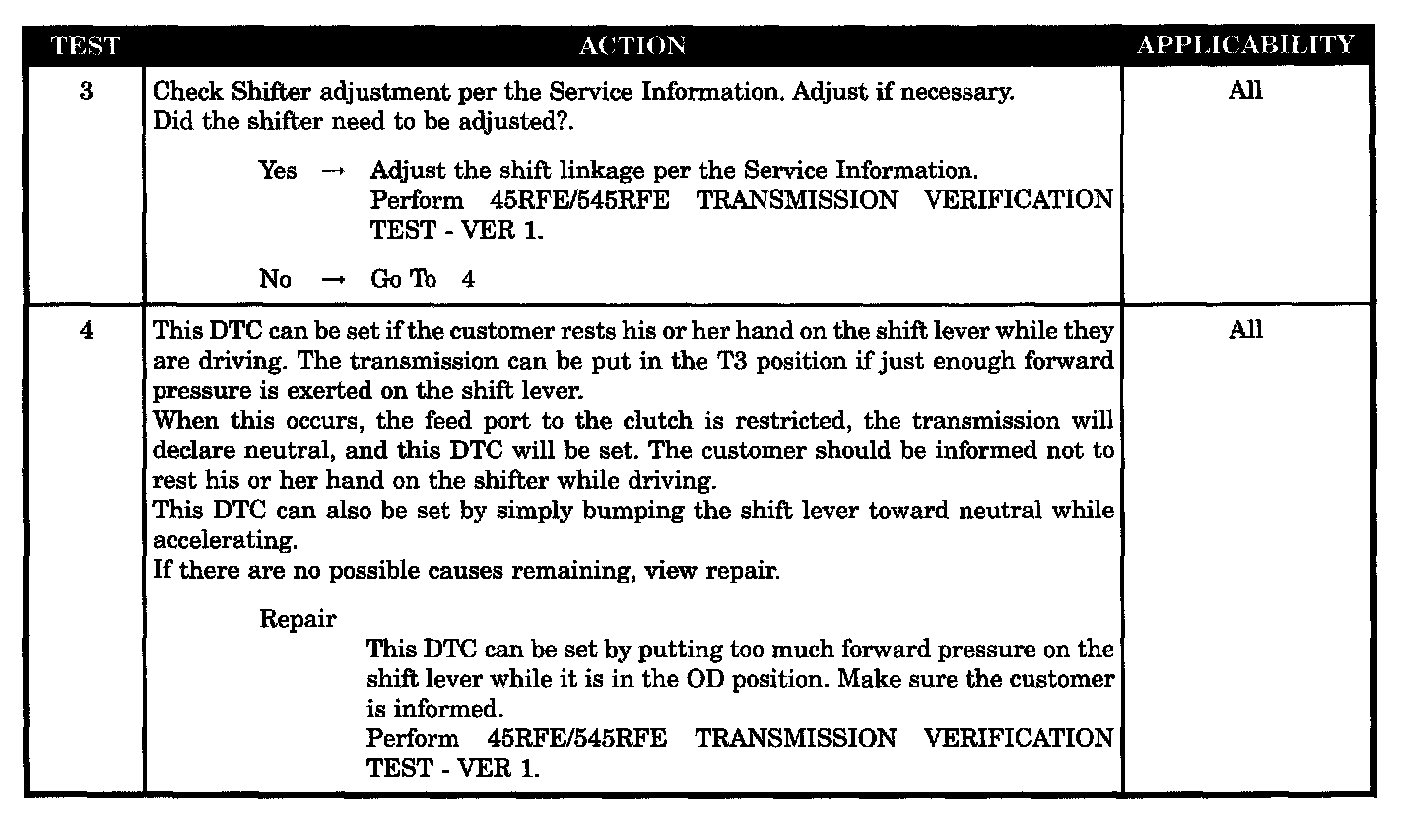

Test 3-4:

SYMPTOM
P1715-RESTRICTED PORT IN T3 RANGE

WHEN MONITORED
Whenever the PRNDL code indicates Temp3.

SET CONDITION
This code sets whenever the conditions for a code P1776 (47) are satisfied with the shifter in the temp3 zone. This causes a restricted port.

POSSIBLE CAUSES
- RELATED TRANSMISSION DTC'S PRESENT
- CUSTOMER DRIVING HABITS
- MISADJUSTED SHIFTER
