P1698
P1698

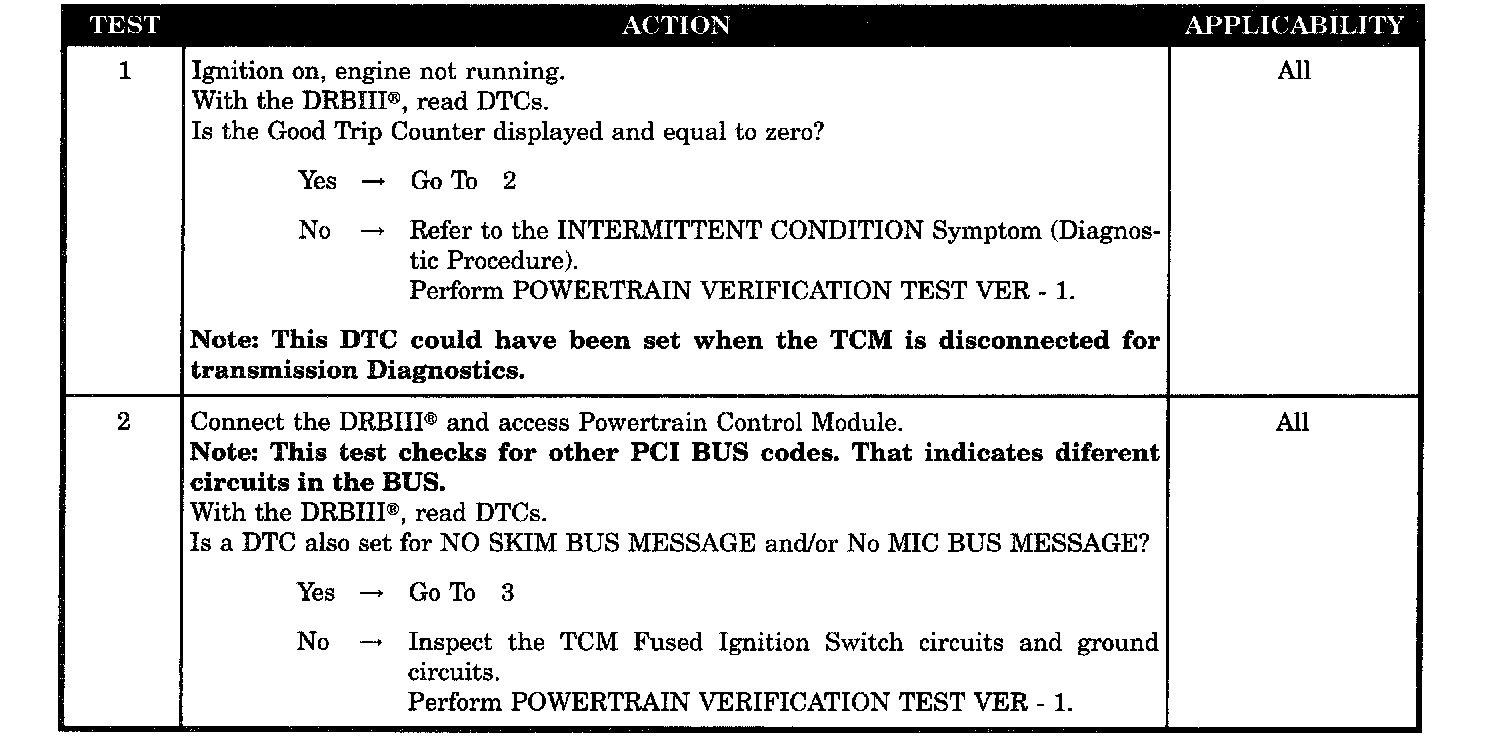

Test 1 - 2:
Test 3:
SYMPTOM
P1698-NO BUS MESSAGE FROM TCM
POSSIBLE CAUSES
-
No bus message from trans intermittent
-
No bus message from trans
-
PCM PCI bus circuit open
