P1686

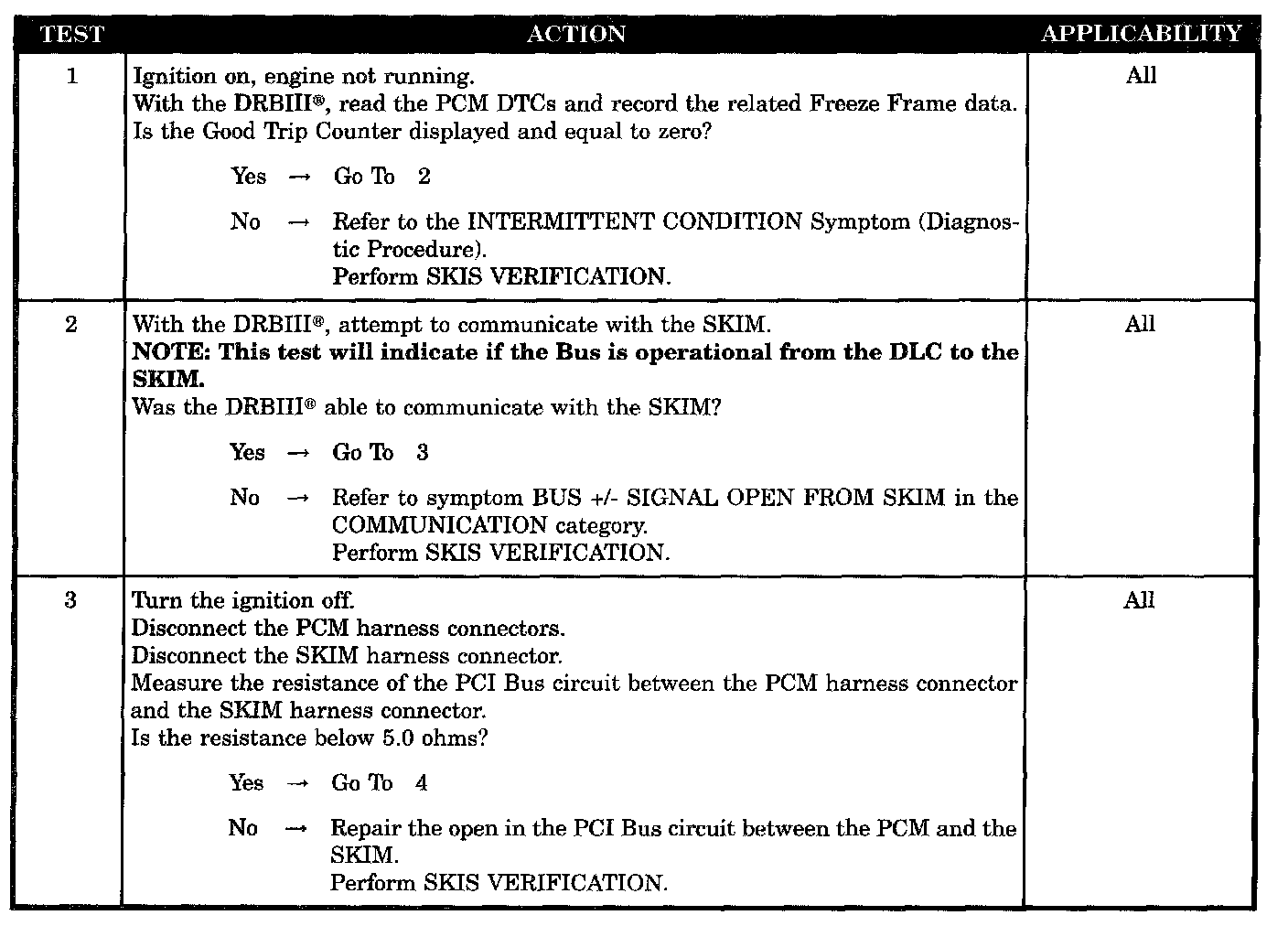

Test 1- 3:

Test 4:

SYMPTOM
P1686-NO SKIM BUS MESSAGE RECEIVED

WHEN MONITORED
With the ignition on.

SET CONDITION
The PCM does not receive a Bus message from the SKIM when expected.

POSSIBLE CAUSES
- No SKIM bus message
- Loss of SKIM communication
- PCI bus circuit open from PCM to SKIM
- SKIM/PCM
