P1684

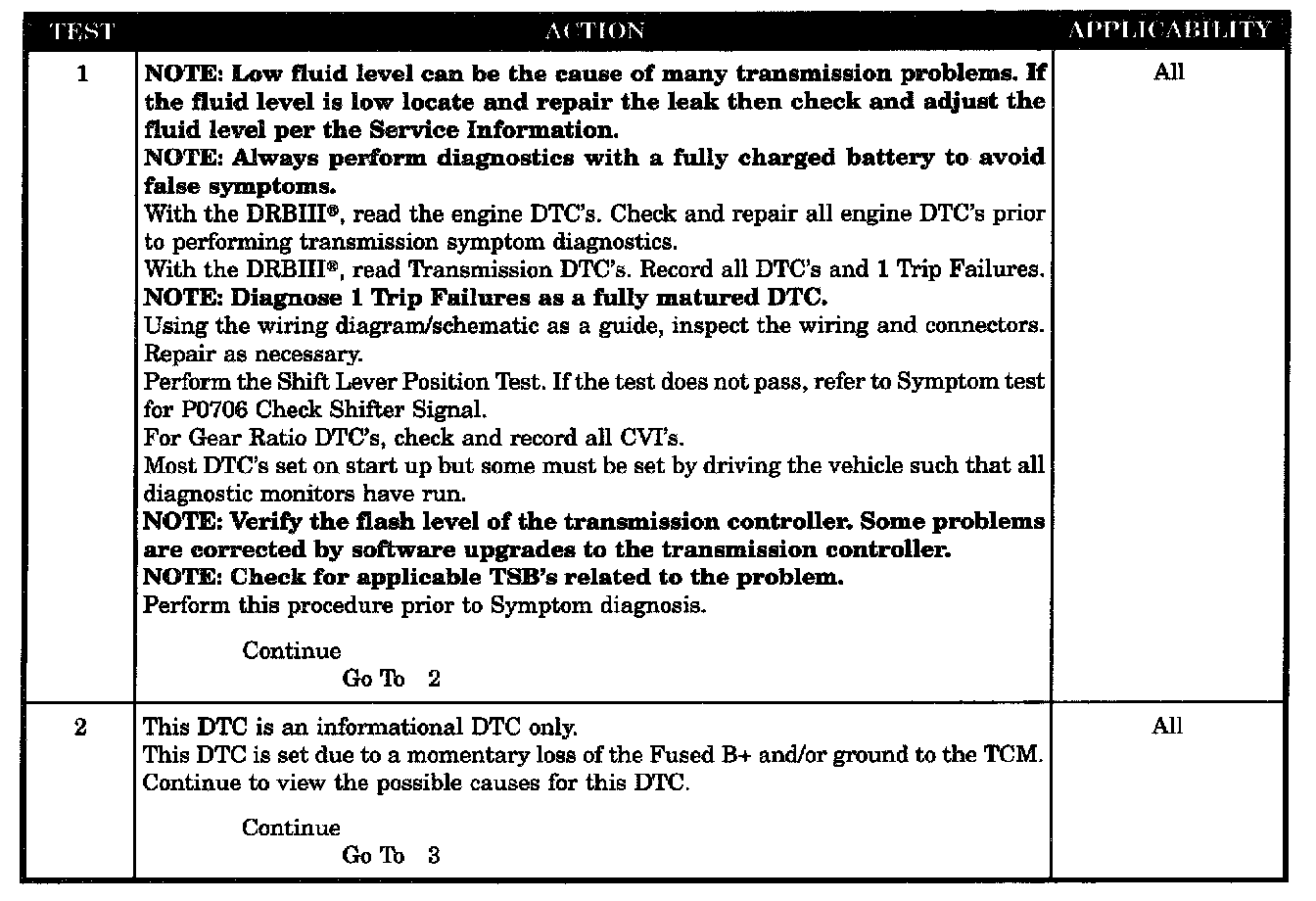

Test 1-2:

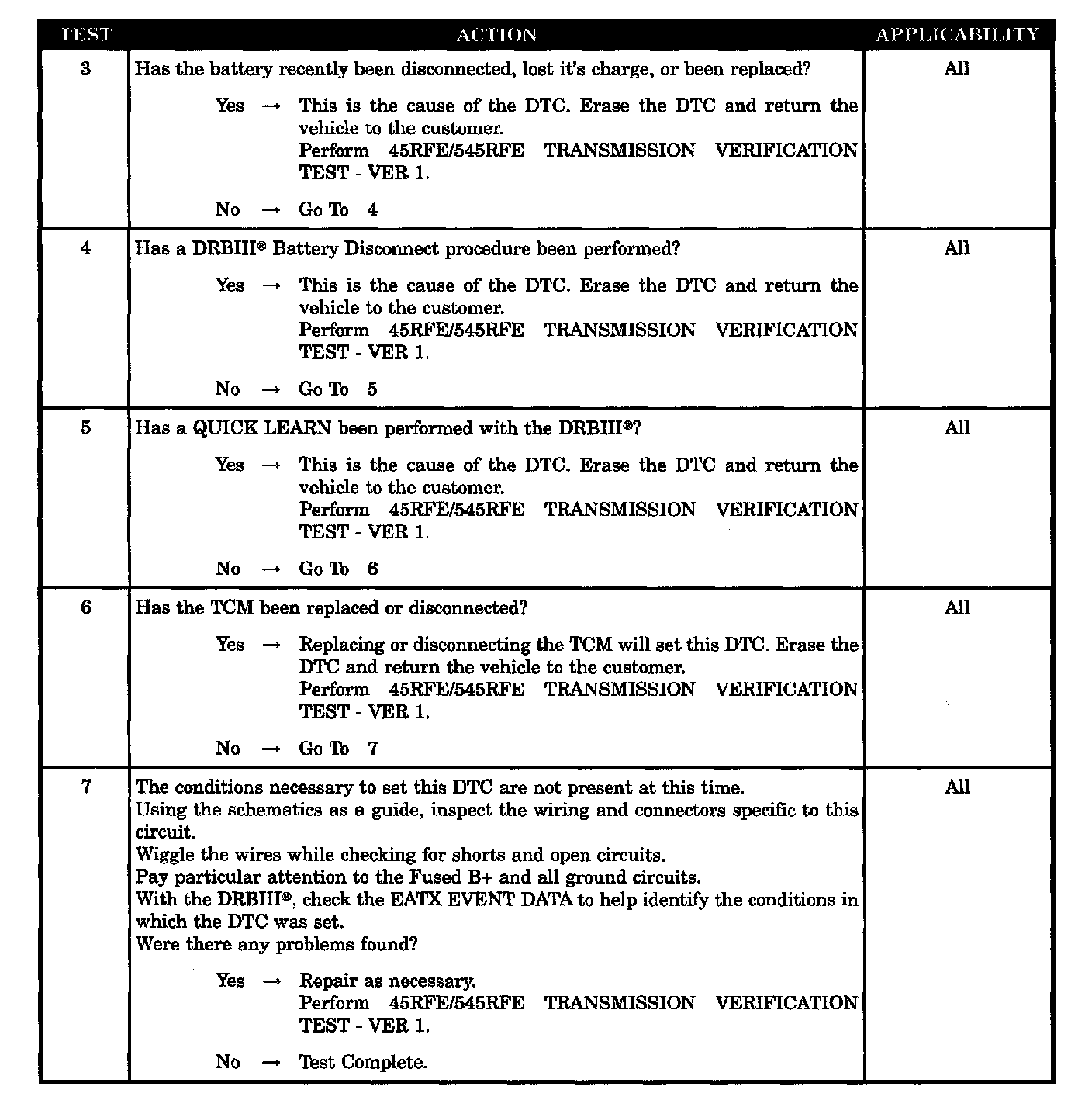

Test 3-7:

SYMPTOM
P1684-BATTERY WAS DISCONNECTED

WHEN MONITORED
Whenever the ignition is in the Run/Start position.

SET CONDITION
This DTC is set whenever the Transmission Control Module is disconnected from battery power (Fused B+) and/or ground. It will also be set during a DRBIII Battery Disconnect procedure and/or a Quick Learn procedure.

POSSIBLE CAUSES
- BATTERY WAS DISCONNECTED
- DRBIII BATTERY DISCONNECT PERFORMED
- QUICK LEARN WAS PERFORMED
- TOM WAS REPLACED OR DISCONNECTED
- INTERMITTENT WIRING AND CONNECTORS
