P1398

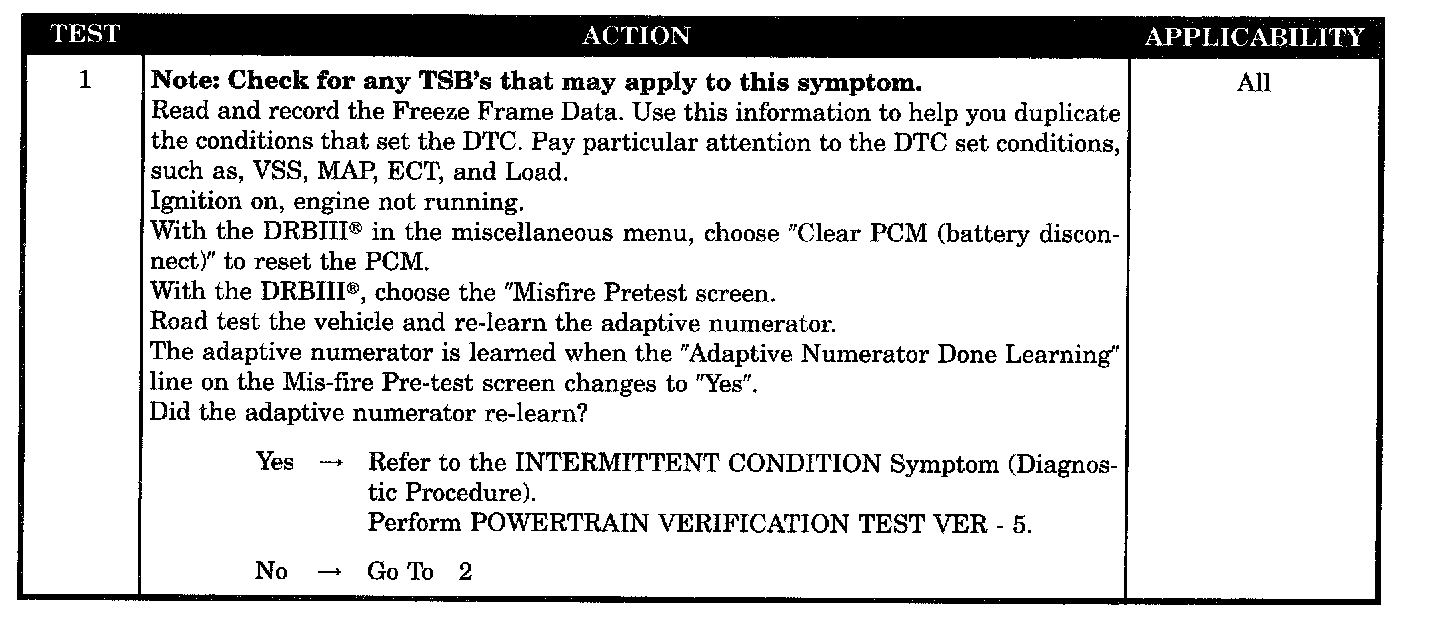

Test 1:

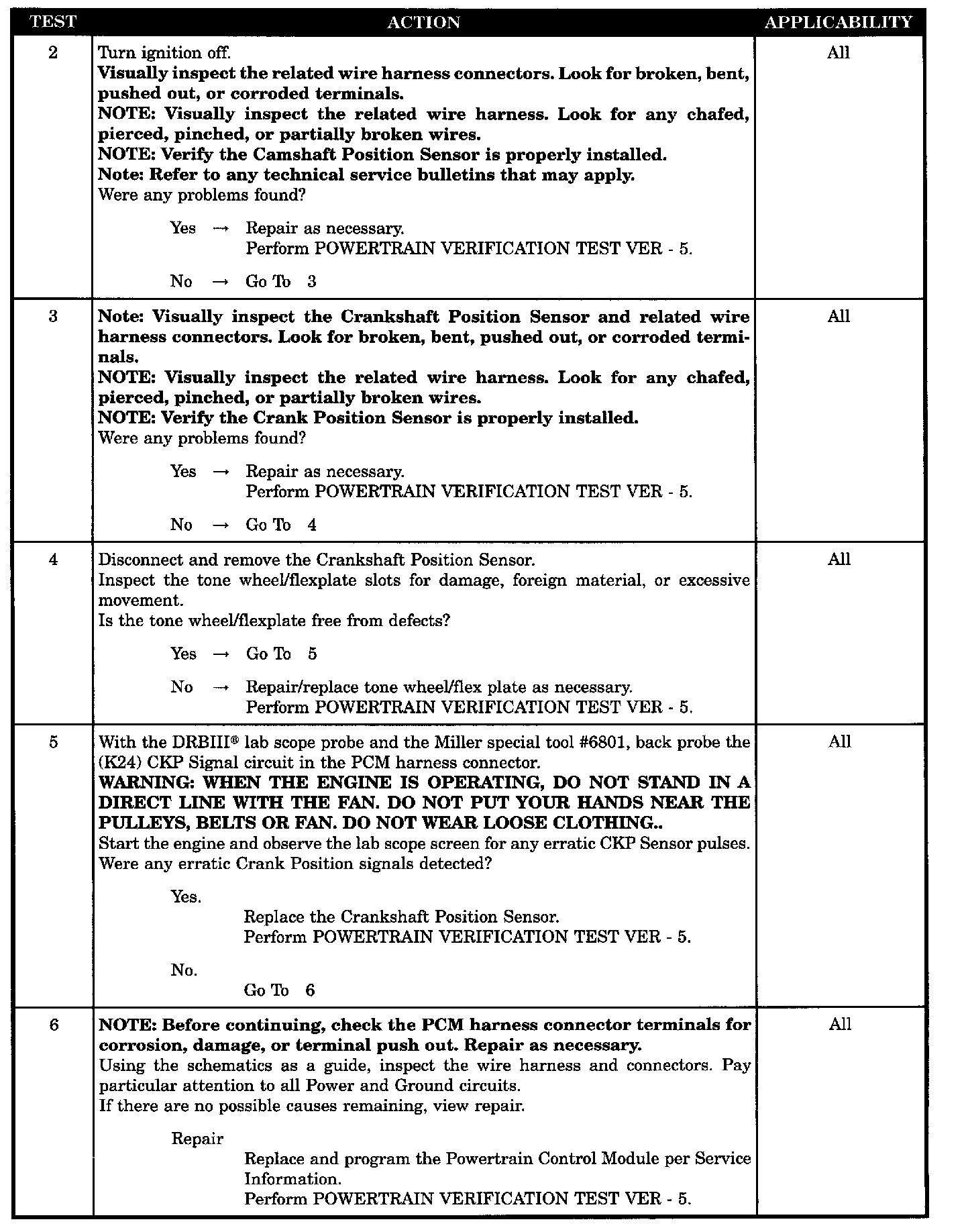

Test 2 - 6:

SYMPTOM
P1398-MISFIRE ADAPTIVE NUMERATOR AT LIMIT

WHEN MONITORED
Under closed throttle decel with A/C off, ECT above 75 °F, and more than 50 seconds after engine start.

SET CONDITION
One of the CKP sensor target windows has more than 2.86% variance from the reference window.

POSSIBLE CAUSES
- Adaptive numerator relearn
- CMP sensor connector/wiring
- CKP sensor connector/wiring
- Damaged tone wheel/flexplate (crankshaft)
- Crankshaft position sensor
- PCM
