P1388

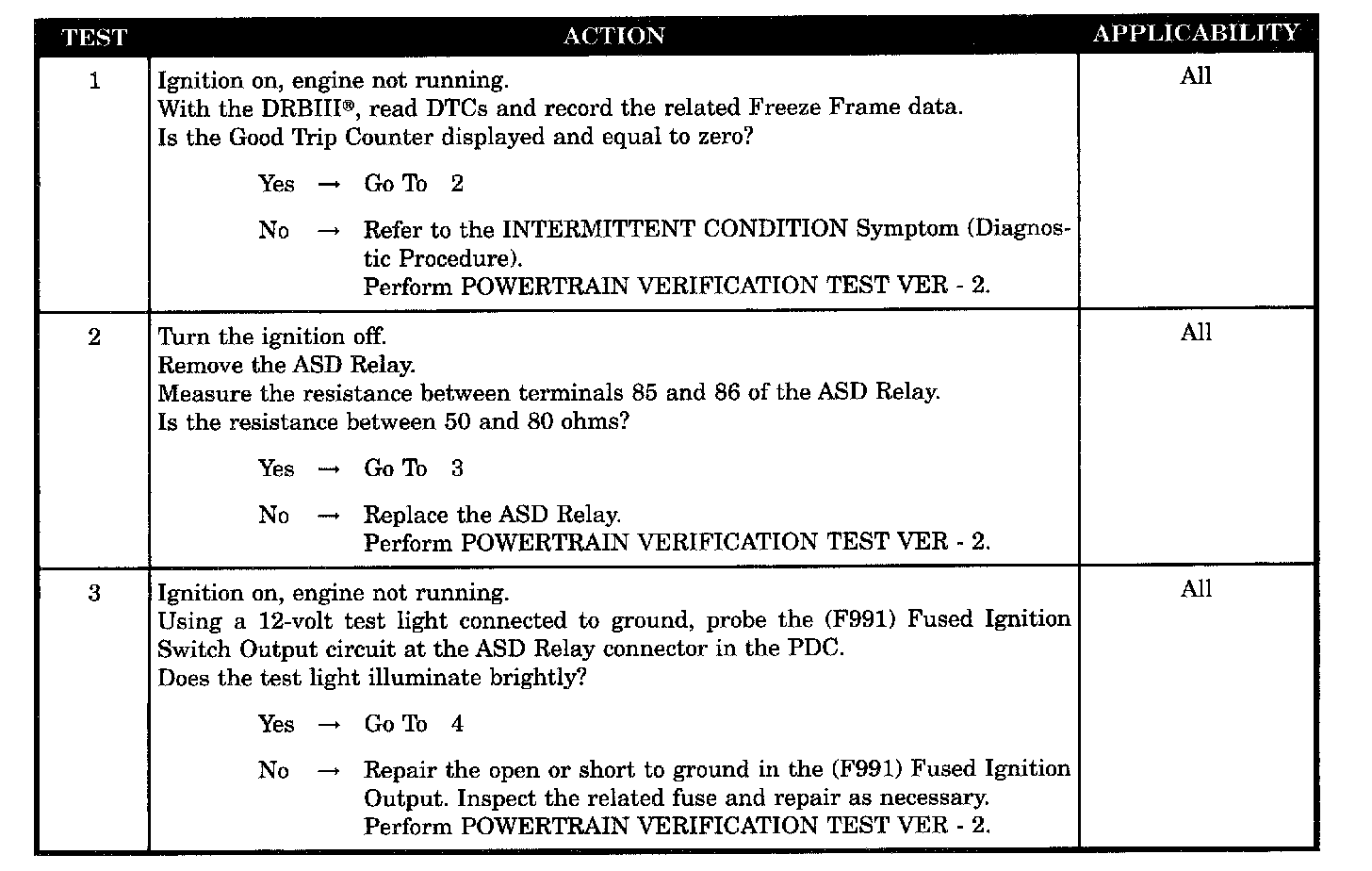

Test 1 - 3:

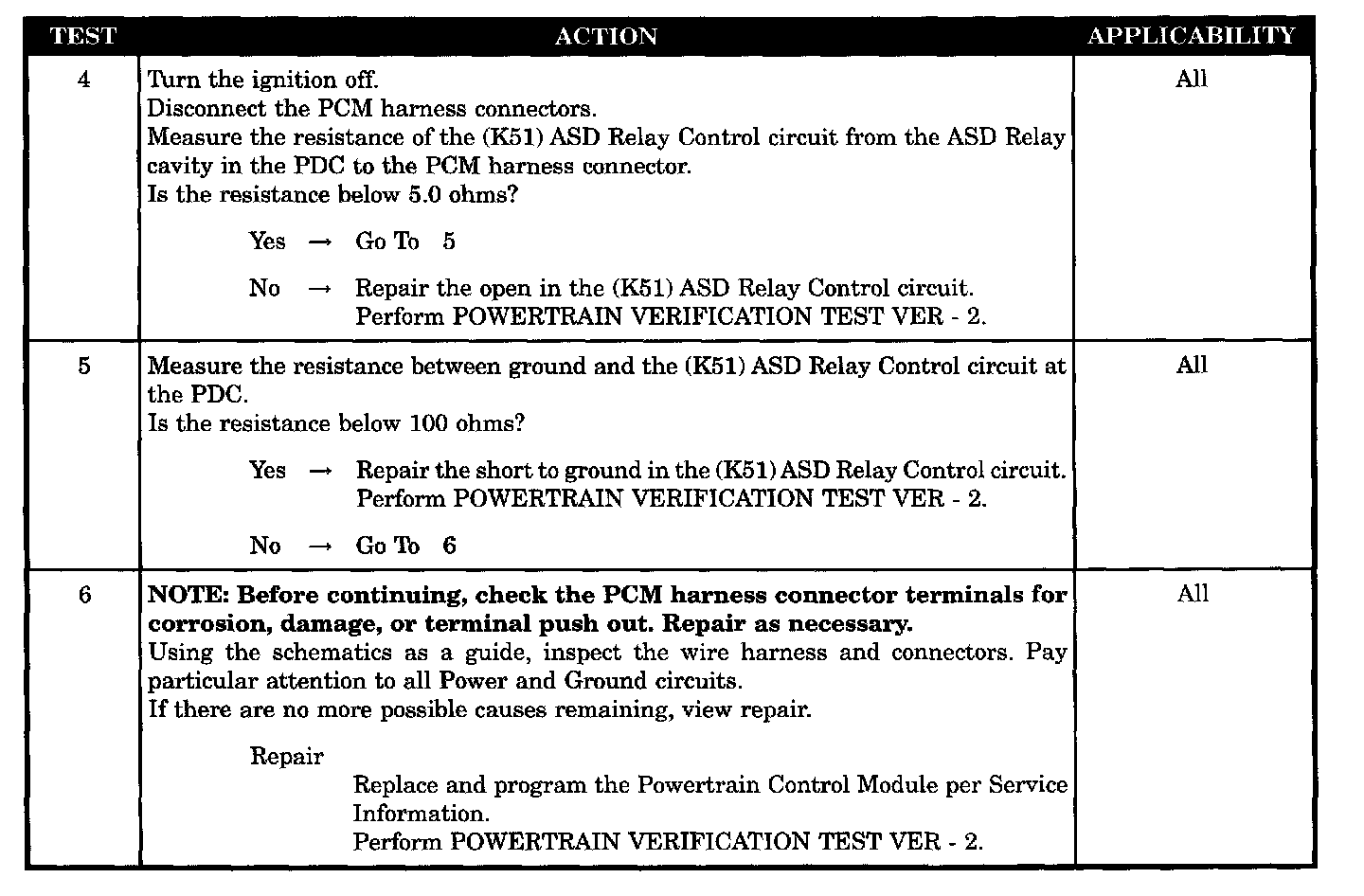

Test 4 - 6:

SYMPTOM
P1388-ASD RELAY CONTROL CIRCUIT

WHEN MONITORED
With ignition key on and battery voltage above 10.4 volts.

SET CONDITION
An open or shorted condition is detected in the ASD Relay control circuit.

POSSIBLE CAUSES
- Good trip equal to zero
- ASD relay
- (F991) fused ignition switch output circuit
- (K51) ASD relay control circuit open
- (K51) ASD relay control circuit shorted to ground
- PCM
