P1296

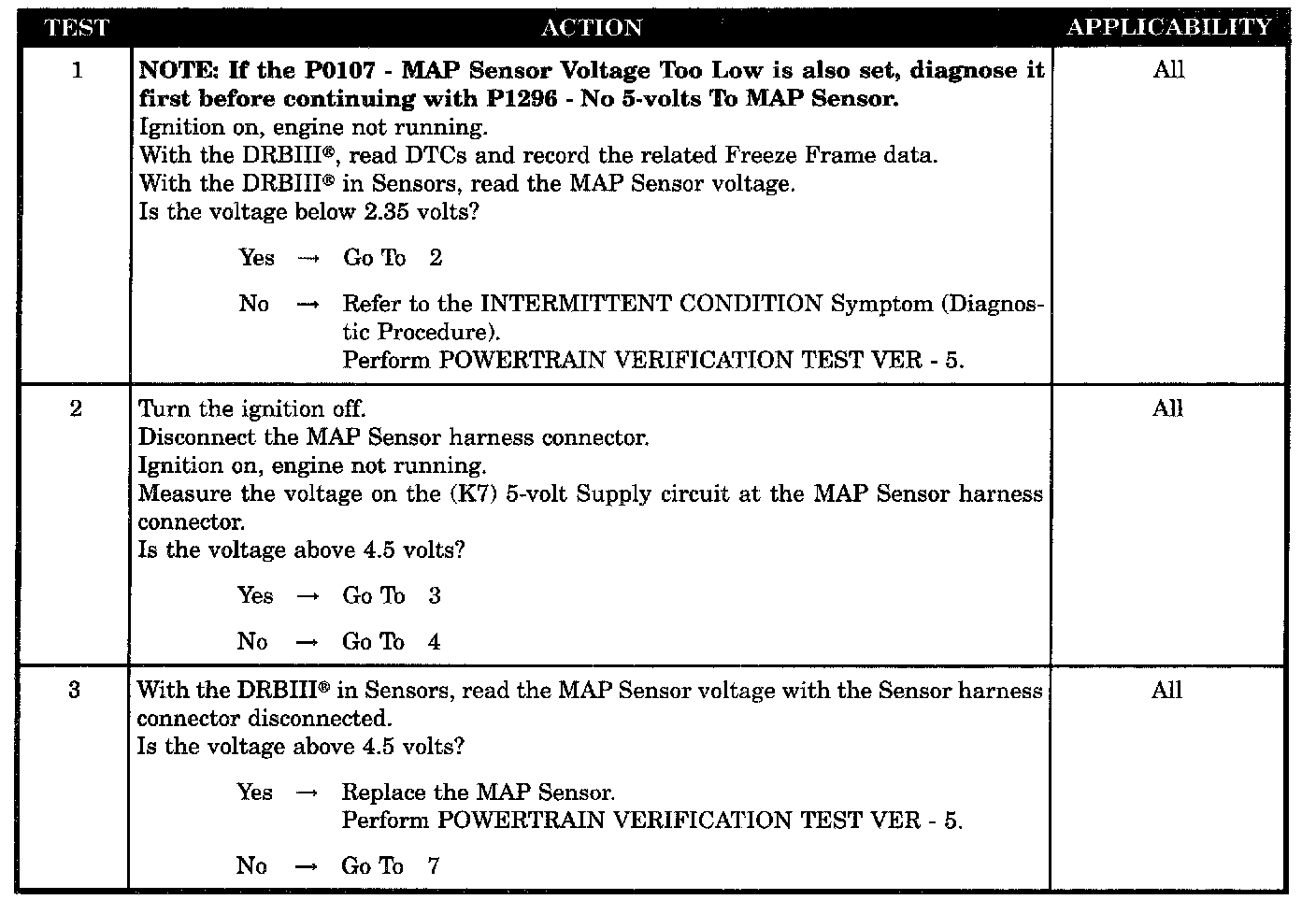

Test 1 - 3:

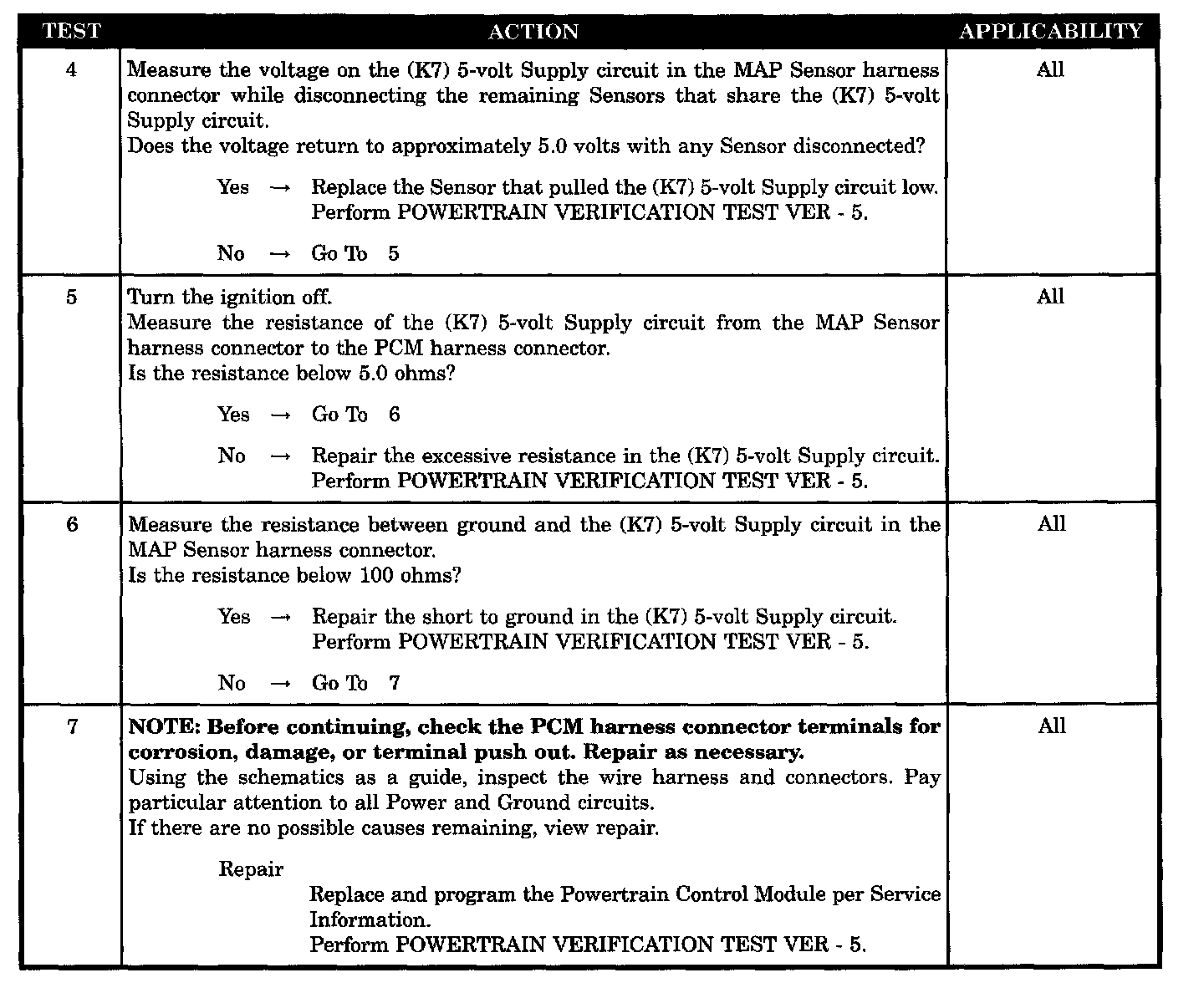

Test 4 - 7:

SYMPTOM
P1296-NO 5-VOLTS TO MAP SENSOR

WHEN MONITORED
During power-down and battery voltage greater than 10.4 volts.

SET CONDITION
The MAP sensor signal voltage goes below 2.35 volts with the key off for 5 seconds.

POSSIBLE CAUSES
- MAP sensor volts below 2.3 volts
- Shorted sensor
- (K7) 5-volt supply circuit open
- MAP sensor
- (K7) 5-volt supply circuit shorted to ground
- PCM
