P1281

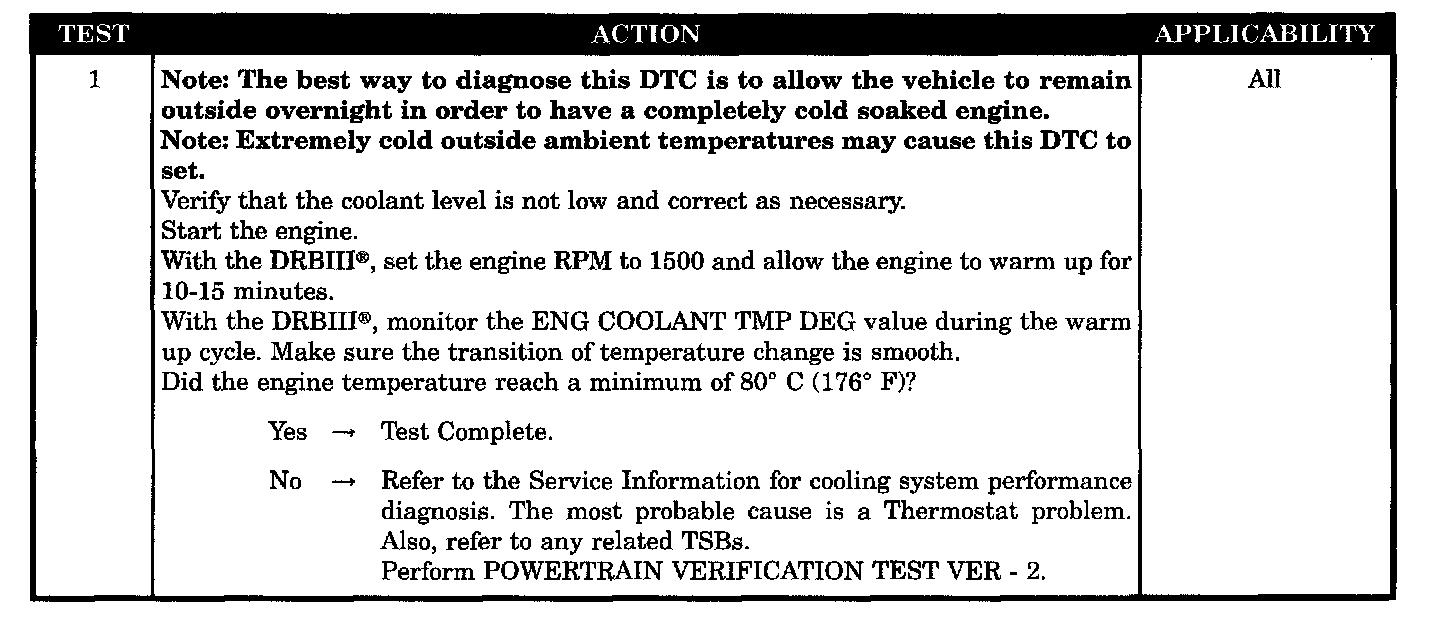

Test 1:






SYMPTOM
P1281-ENGINE IS COLD TOO LONG

WHEN MONITORED
The ignition key on, engine running, Ambient Temperature greater than 20 °F; and Vacuum is less than 17 inches Hg.

SET CONDITION
The engine does not warm to 85 °C (181 °F) while driving for more than 3 minutes and less than 1 hour depending on Engine load and Start up Temperature

POSSIBLE CAUSES
- Engine cold too long
