P0935

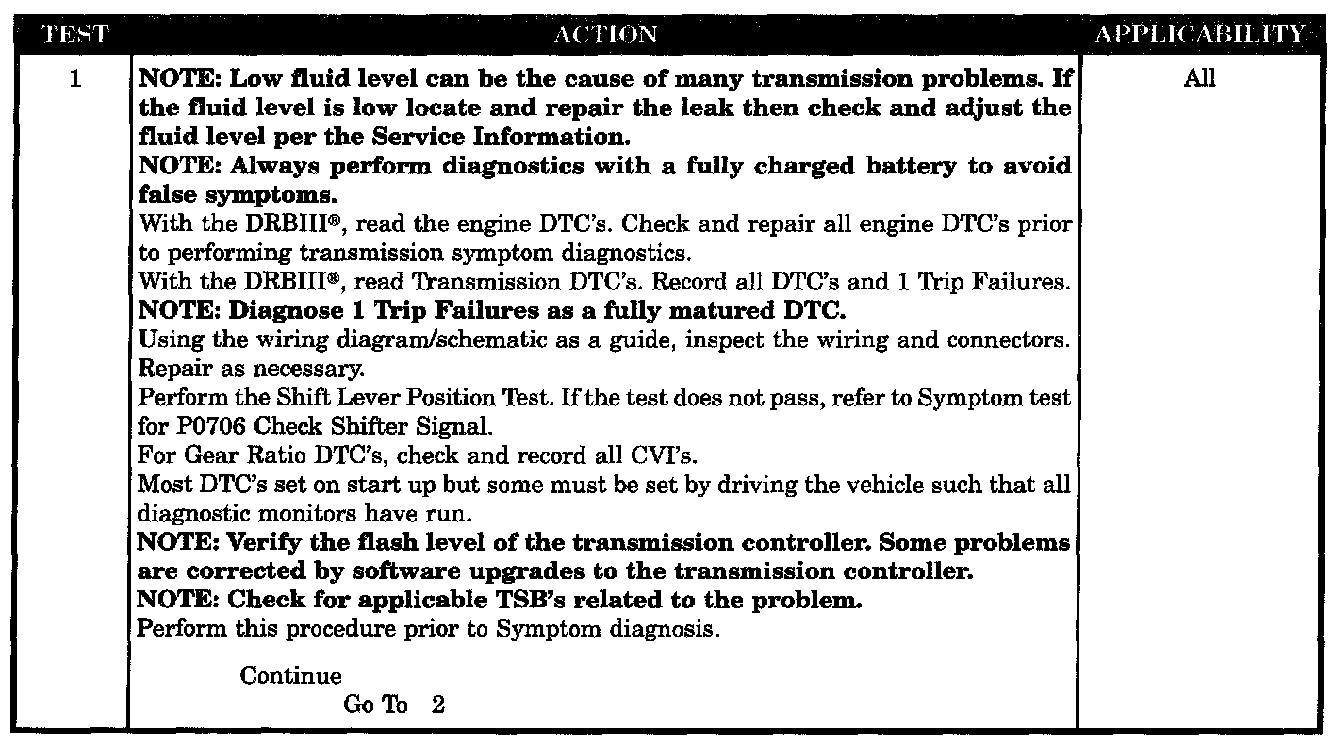

Test 1:

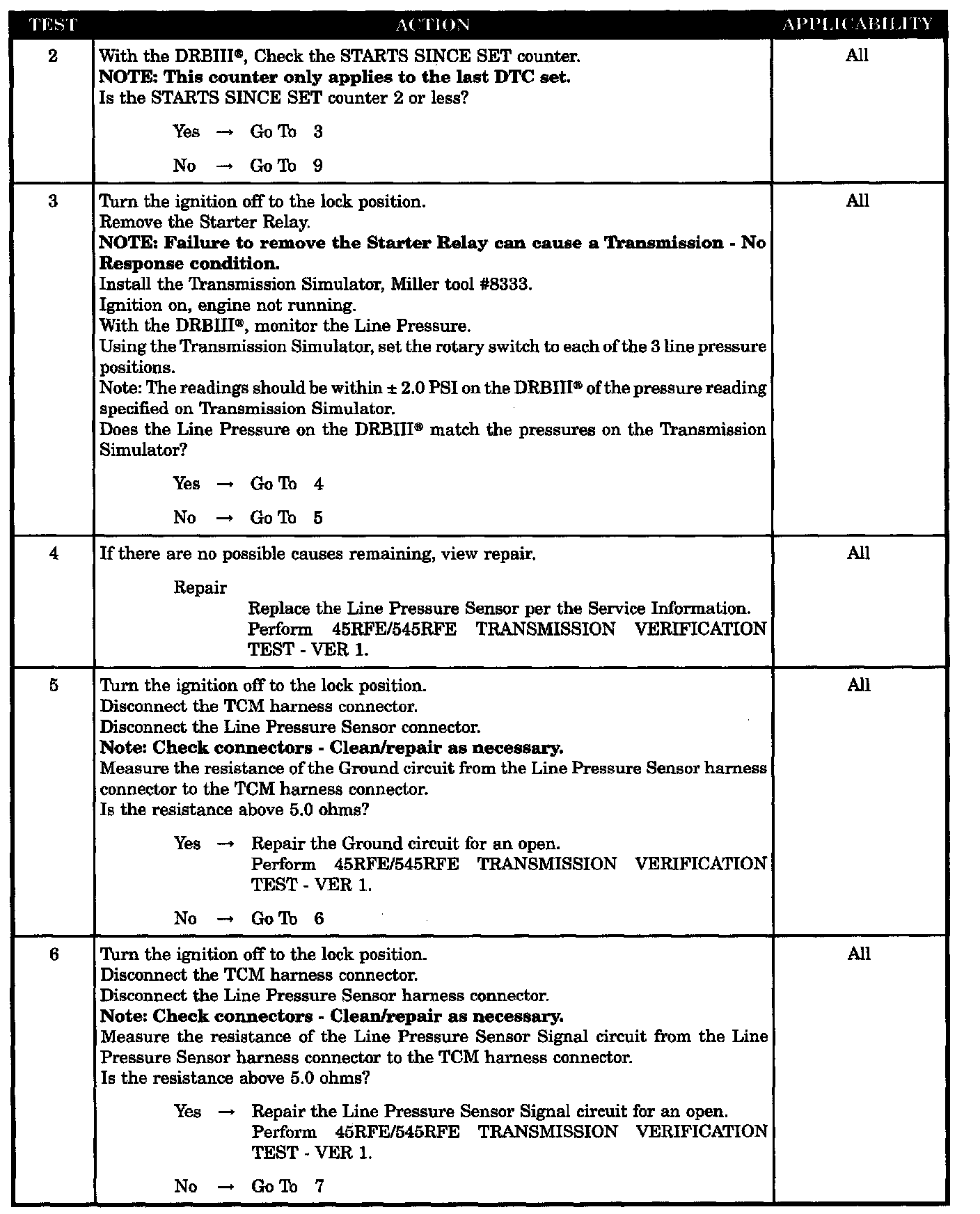

Test 2-6:

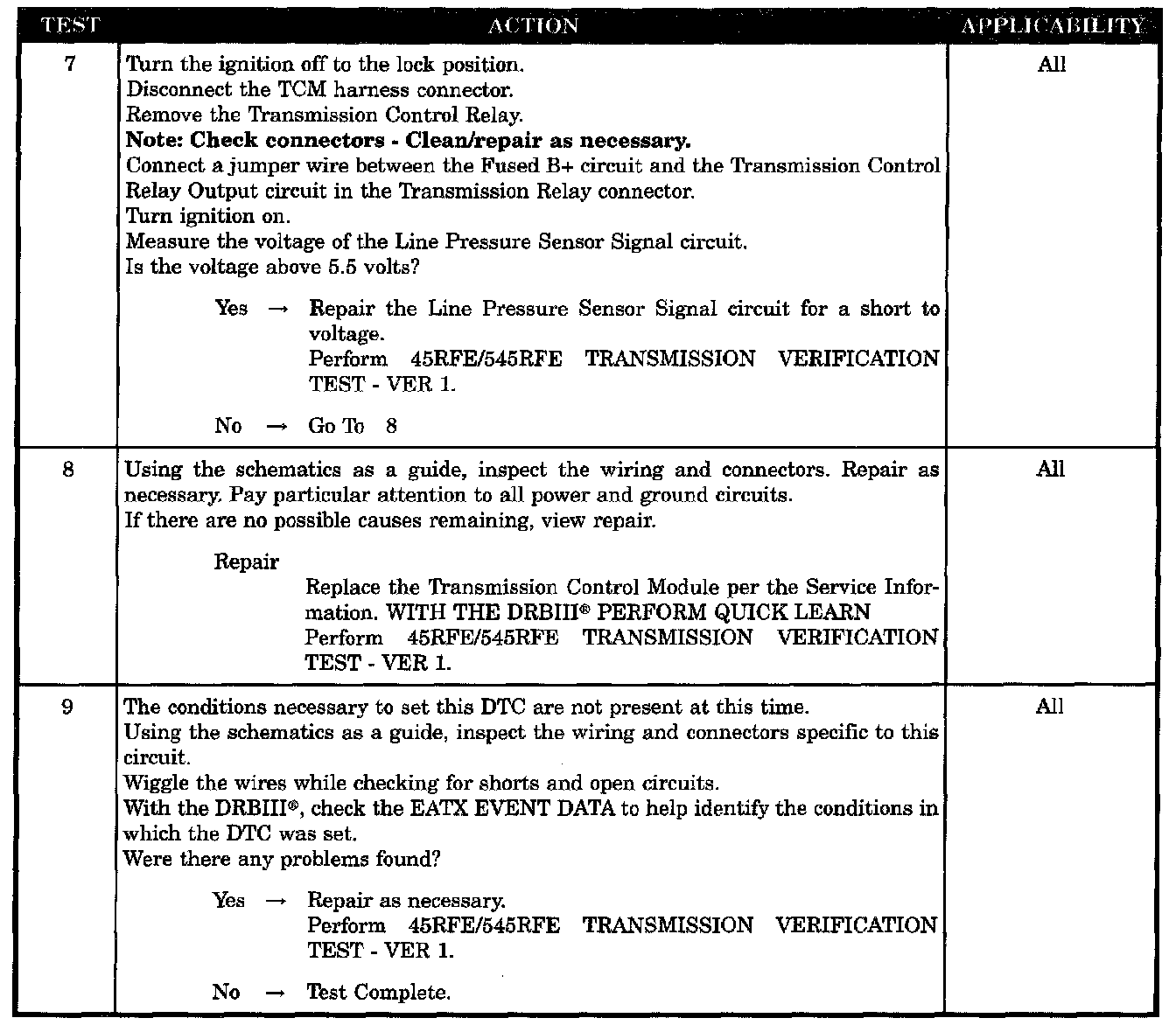

Test 7-9:

SYMPTOM
P0935-LINE PRESSURE SENSOR HIGH

WHEN MONITORED
Continuously with engine running, Output Speed greater than 390 RPM and Desired Line Pressure less than 200.

SET CONDITION
This DTC will set if is Line Pressure Sensor Output is greater than 4.76 volts for 1.4 seconds.

POSSIBLE CAUSES
- LINE PRESSURE SENSOR GROUND CIRCUIT OPEN
- LINE PRESSURE SENSOR SIGNAL CIRCUIT OPEN
- LINE PRESSURE SENSOR SIGNAL CIRCUIT SHORT TO VOLTAGE
- LINE PRESSURE SENSOR
- TRANSMISSION CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS
