P0932

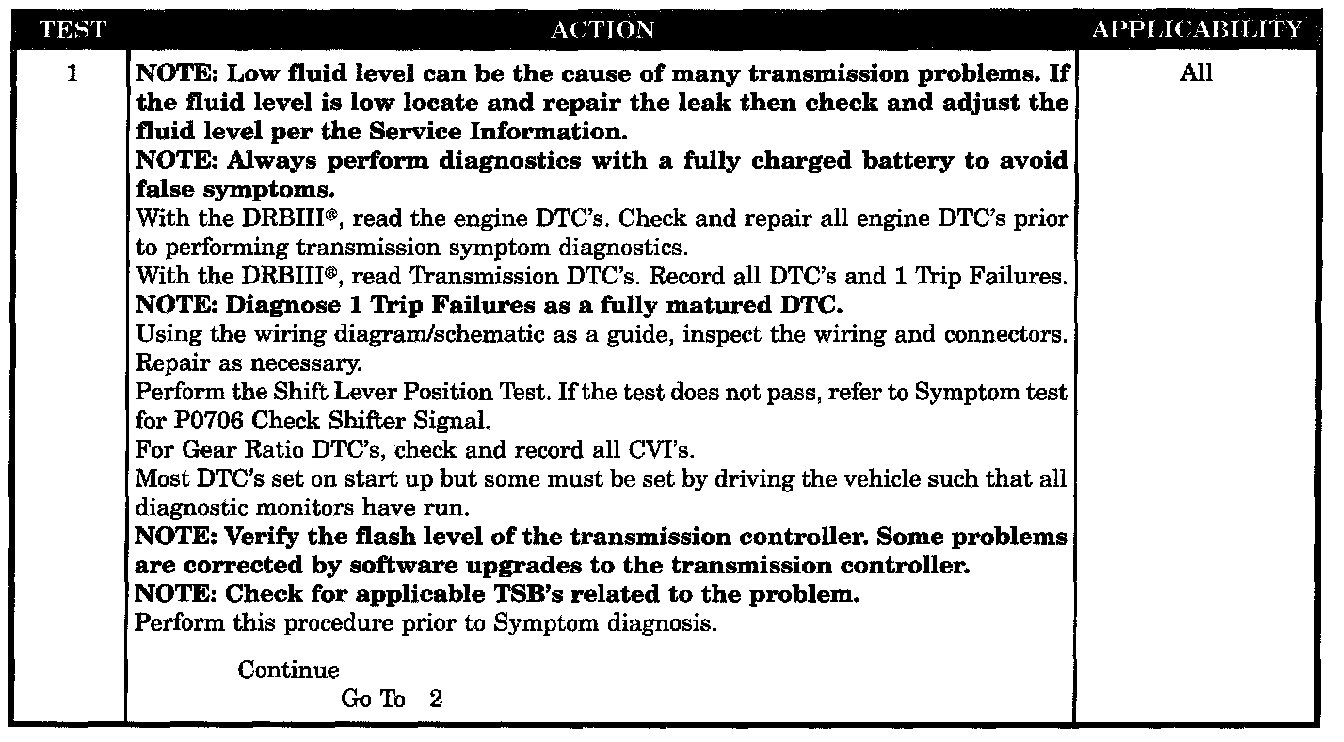

Test 1:

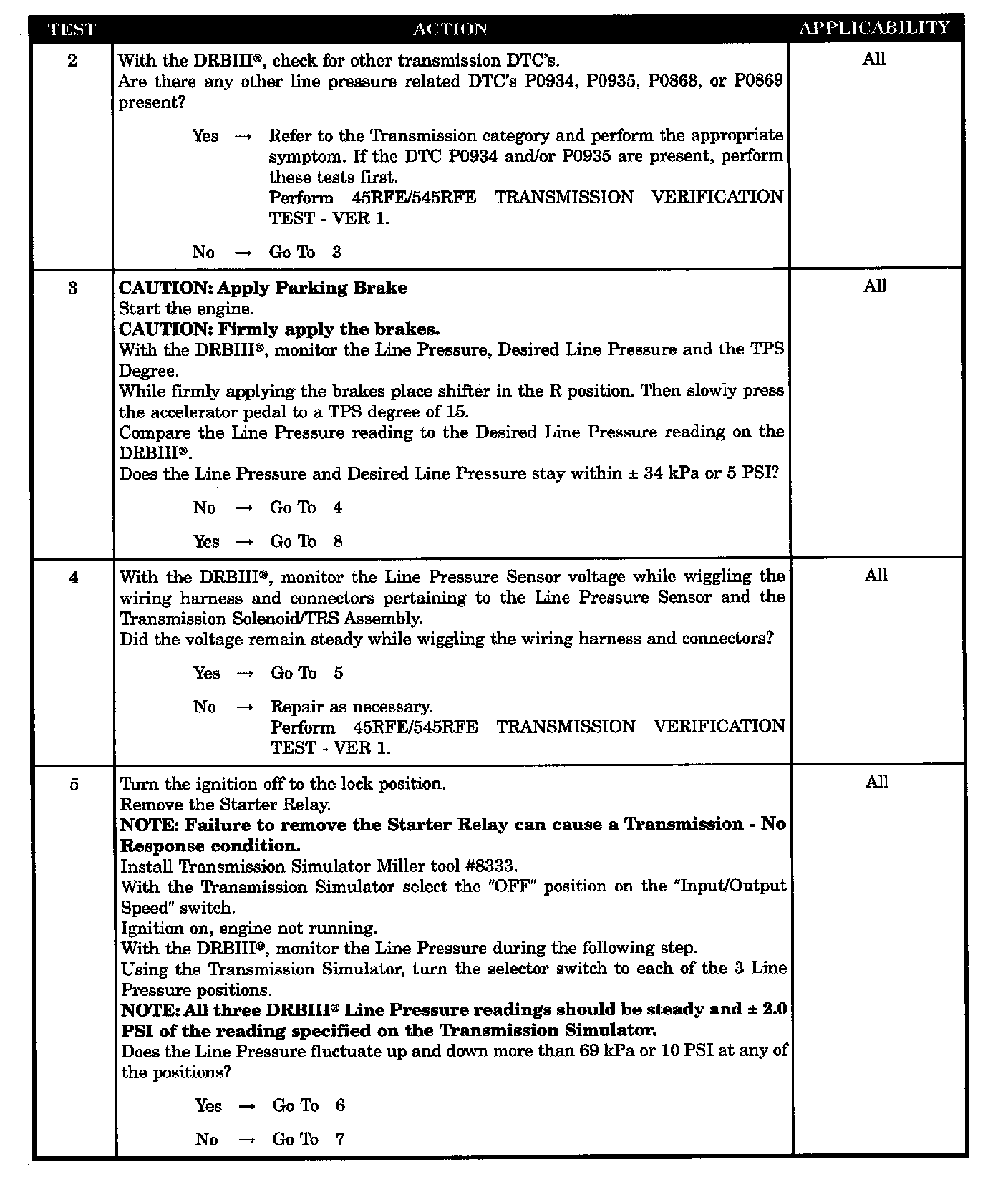

Test 2-5:

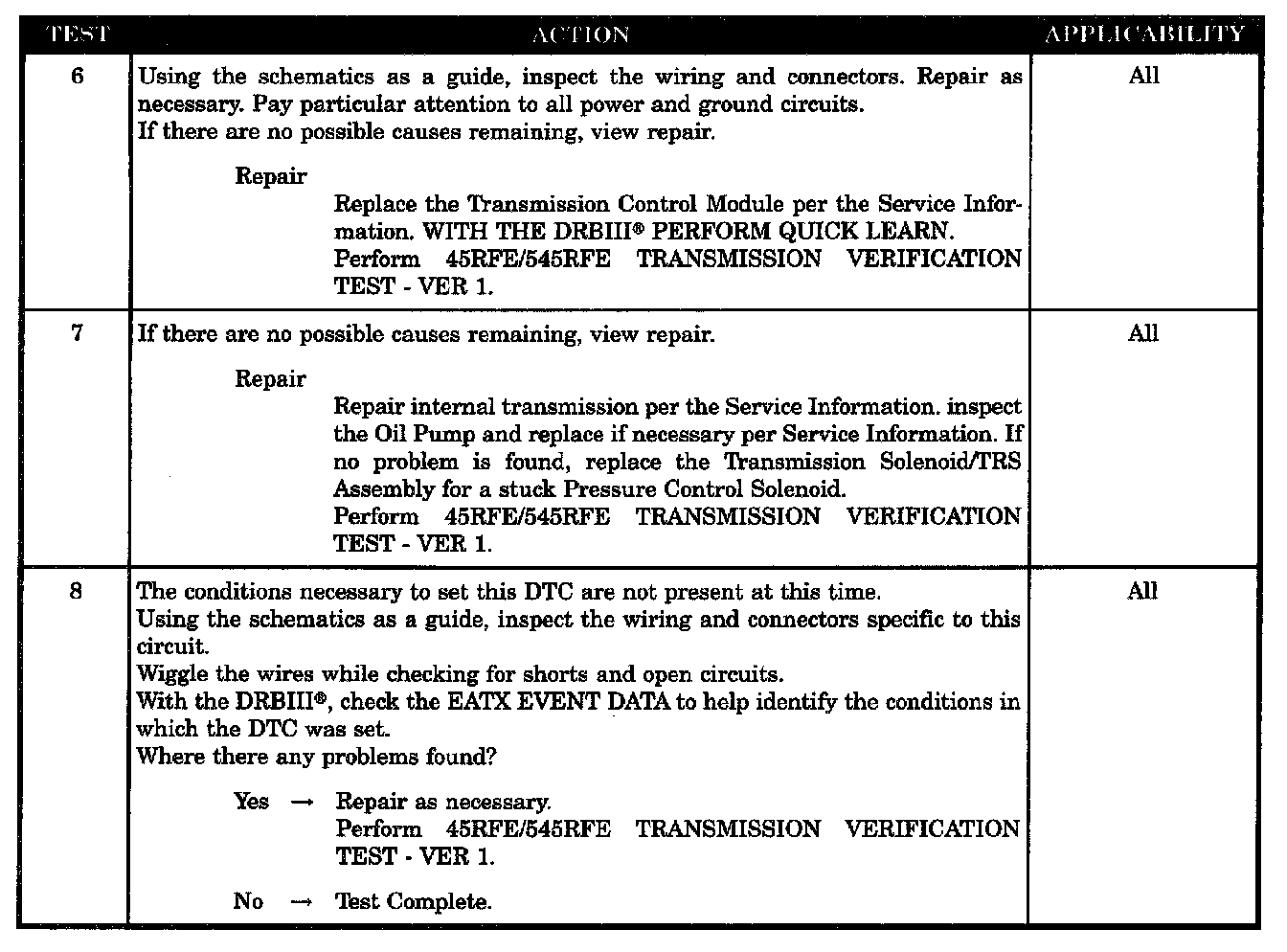

Test 6-8:

SYMPTOM
P0932-LINE PRESSURE SENSOR CIRCUIT FAULT

WHEN MONITORED
Continuously while driving in a forward gear.

SET CONDITION
The PCM continuously monitors Actual Line Pressure and compares it to Desired Line Pressure. If the Actual Line Pressure reading is more than 172.4 kPa (25 psi) higher than the Desired Line Pressure, but is less than the highest Line Pressure ever used in the current gear, this code will set.

POSSIBLE CAUSES
- RELATED DTC'S PRESENT
- POOR CONNECTION OR WIRING
- INTERNAL TRANSMISSION
- TRANSMISSION CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS
