P0755

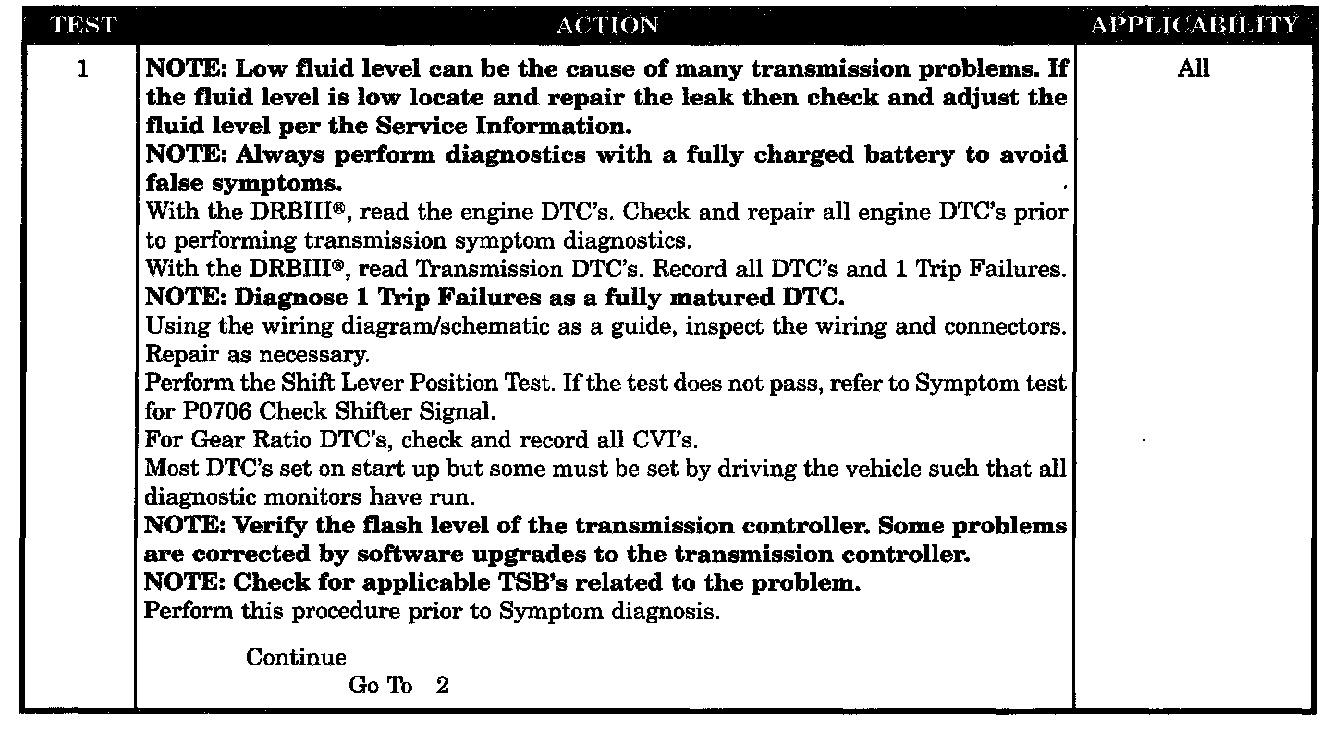

Test 1:

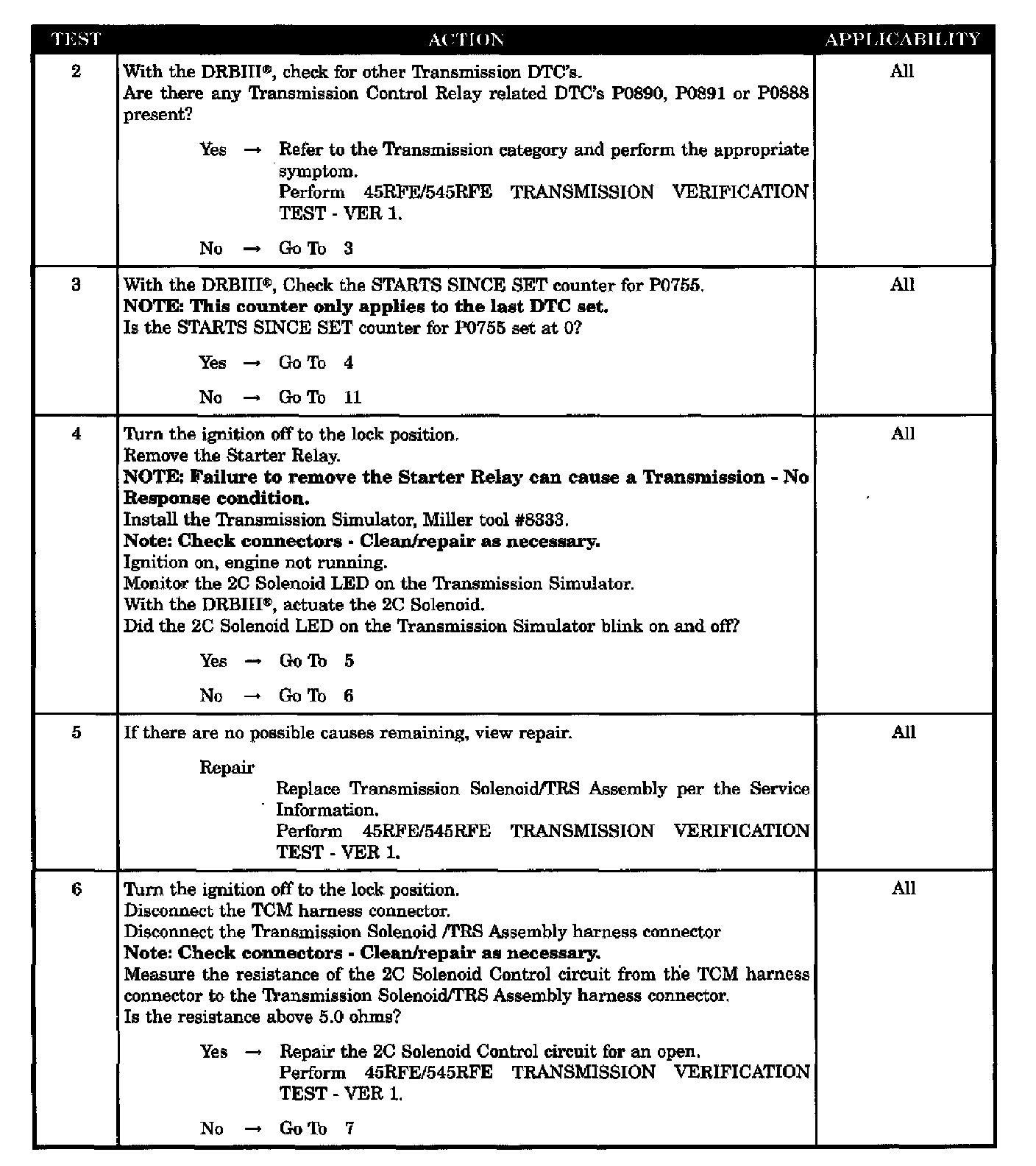

Test 2-6:

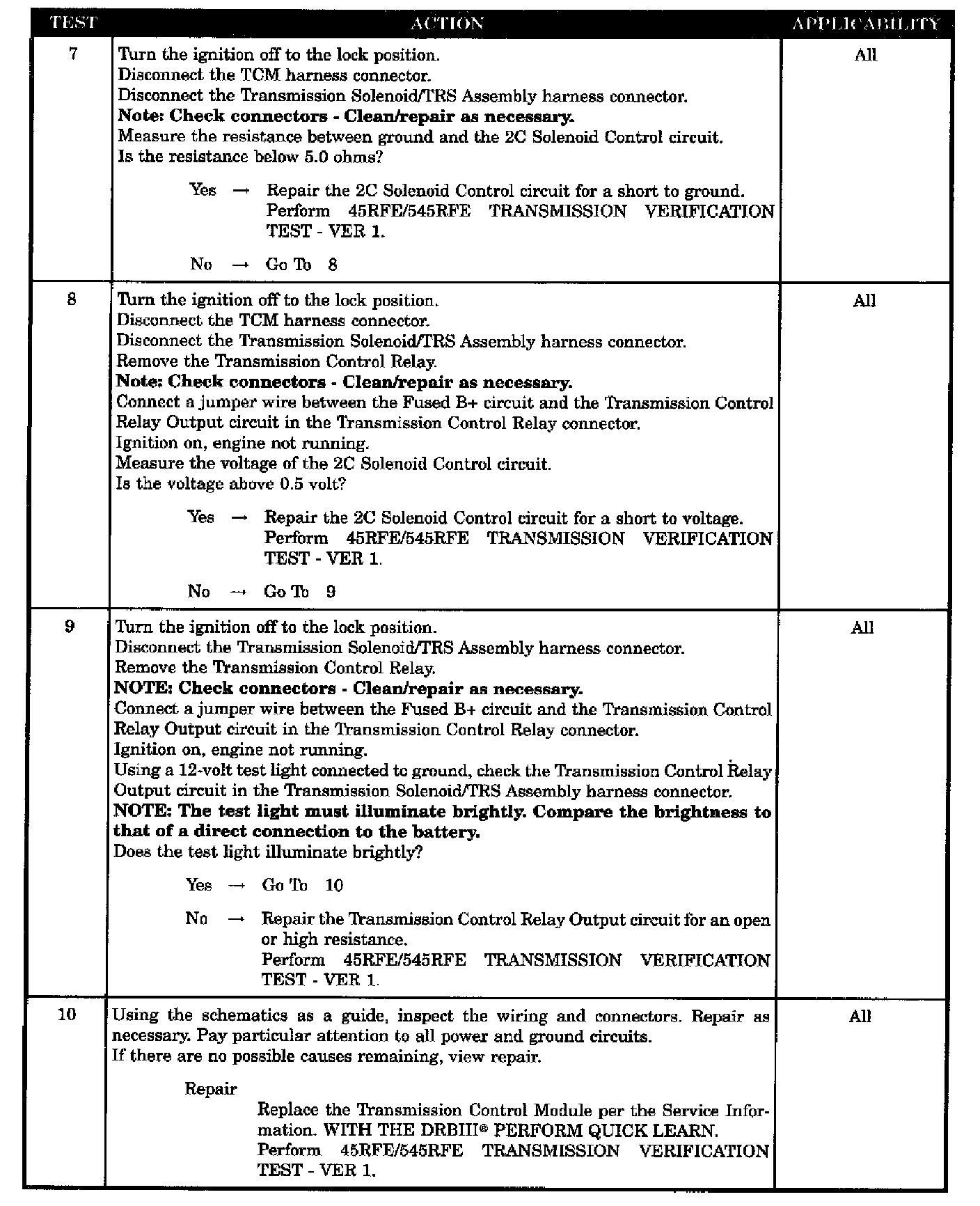

Test 7-10:

Test 11:

SYMPTOM
P0755-2C SOLENOID CIRCUIT

WHEN MONITORED
Initially at power-up, then every 10 seconds thereafter. It will also be tested immediately after a gear ratio or pressure switch error is detected.

SET CONDITION
After three consecutive solenoid continuity tests failures. After one failure if a test is run in response to a gear ratio or pressure switch error.

POSSIBLE CAUSES
- RELATED RELAY DTC'S PRESENT
- TRANSMISSION CONTROL RELAY OUTPUT CIRCUIT OPEN
- 2C SOLENOID CONTROL CIRCUIT OPEN
- 2C SOLENOID CONTROL CIRCUIT SHORT TO GROUND
- 2C SOLENOID CONTROL CIRCUIT SHORT TO VOLTAGE
- TRANSMISSION SOLENOID/TRS ASSEMBLY
- TRANSMISSION CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS
