P0732

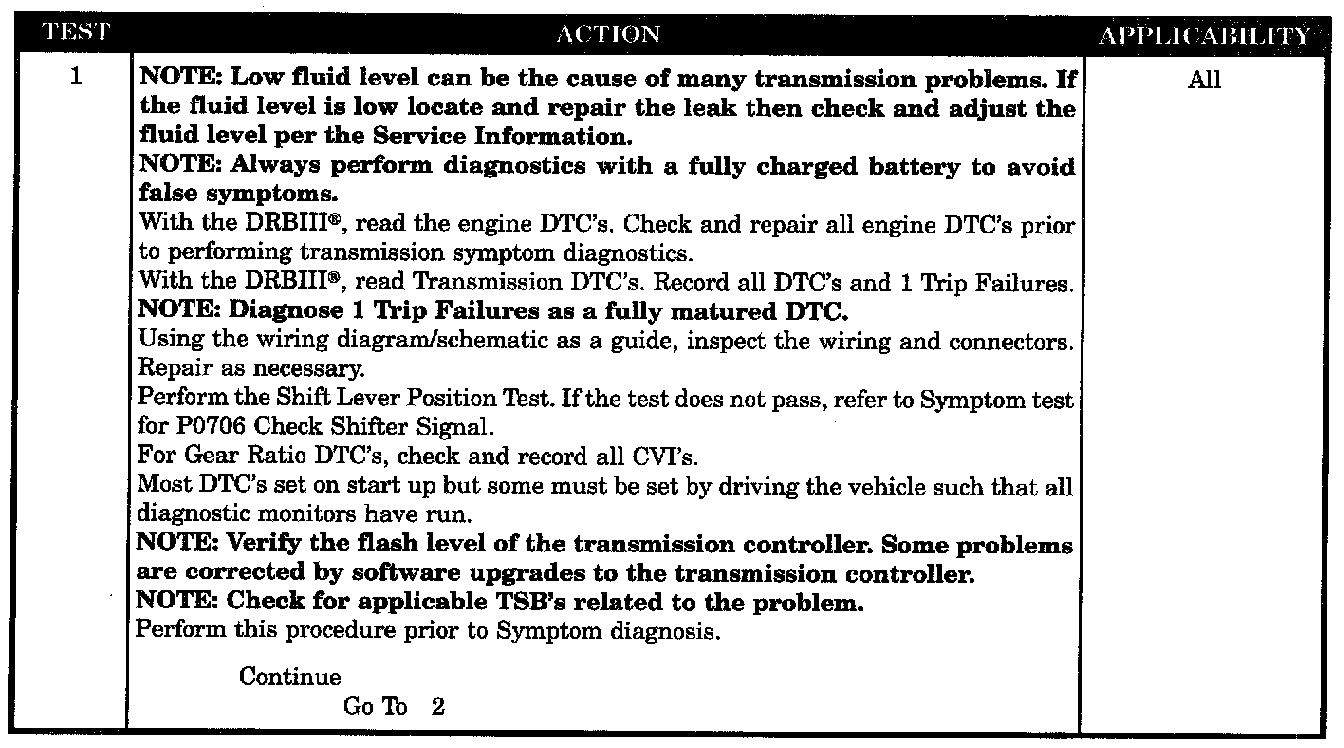

Test 1:

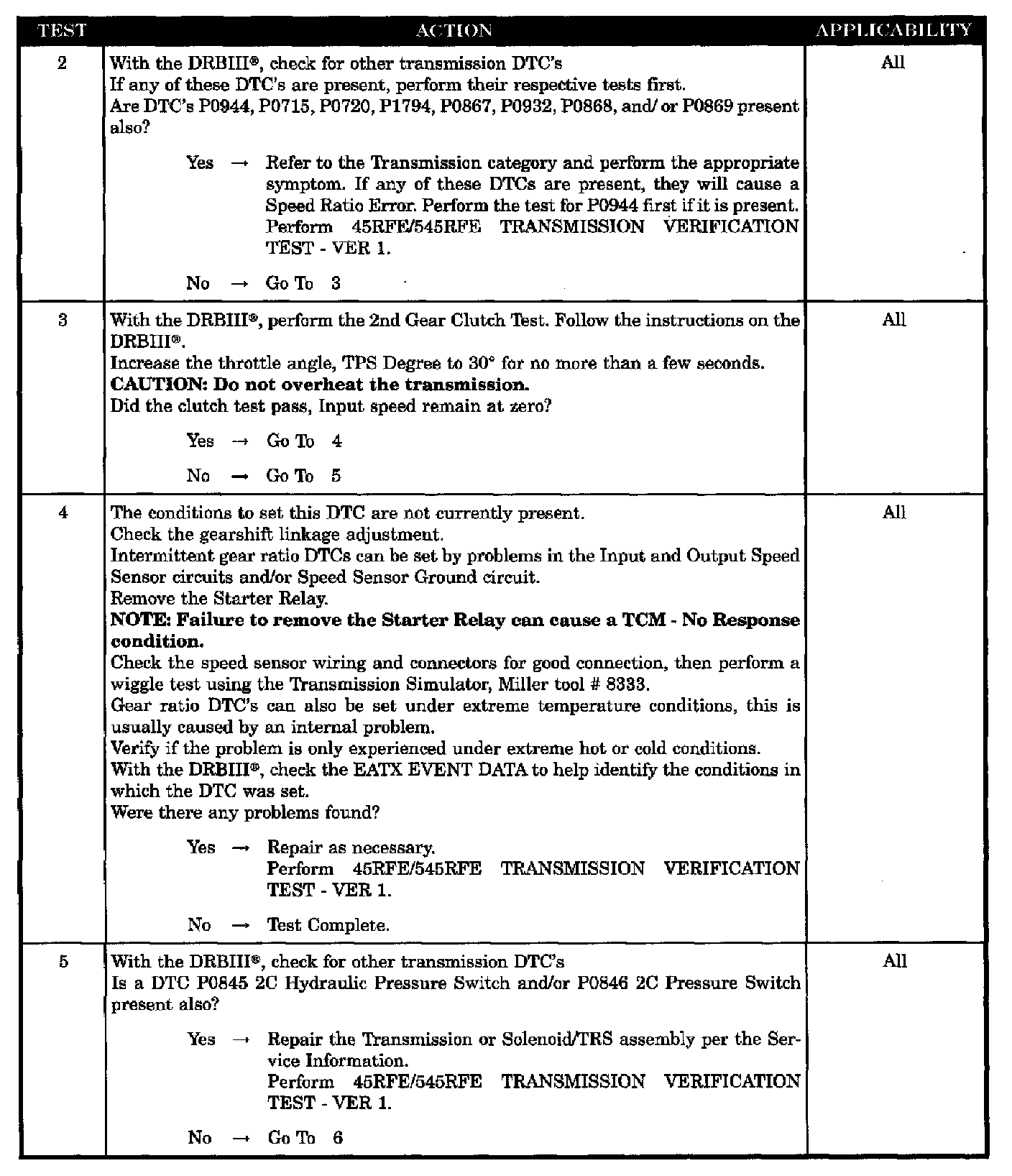

Test 2-5:

Test 6:

SYMPTOM
P0732-GEAR RATIO ERROR IN 2ND

WHEN MONITORED
The transmission gear ratio is monitored continuously while the transmission is in gear.

SET CONDITION
If the ratio of the Input RPM to the Output RPM does not match the current gear ratio. This DTC can take up to five minutes of problem identification before illuminating the MIL.

POSSIBLE CAUSES
- RELATED DTC'S PRESENT
- RELATED PRESSURE SWITCH DTC'S PRESENT
- INTERNAL TRANSMISSION
- INTERMITTENT GEAR RATIO ERRORS
