P0711

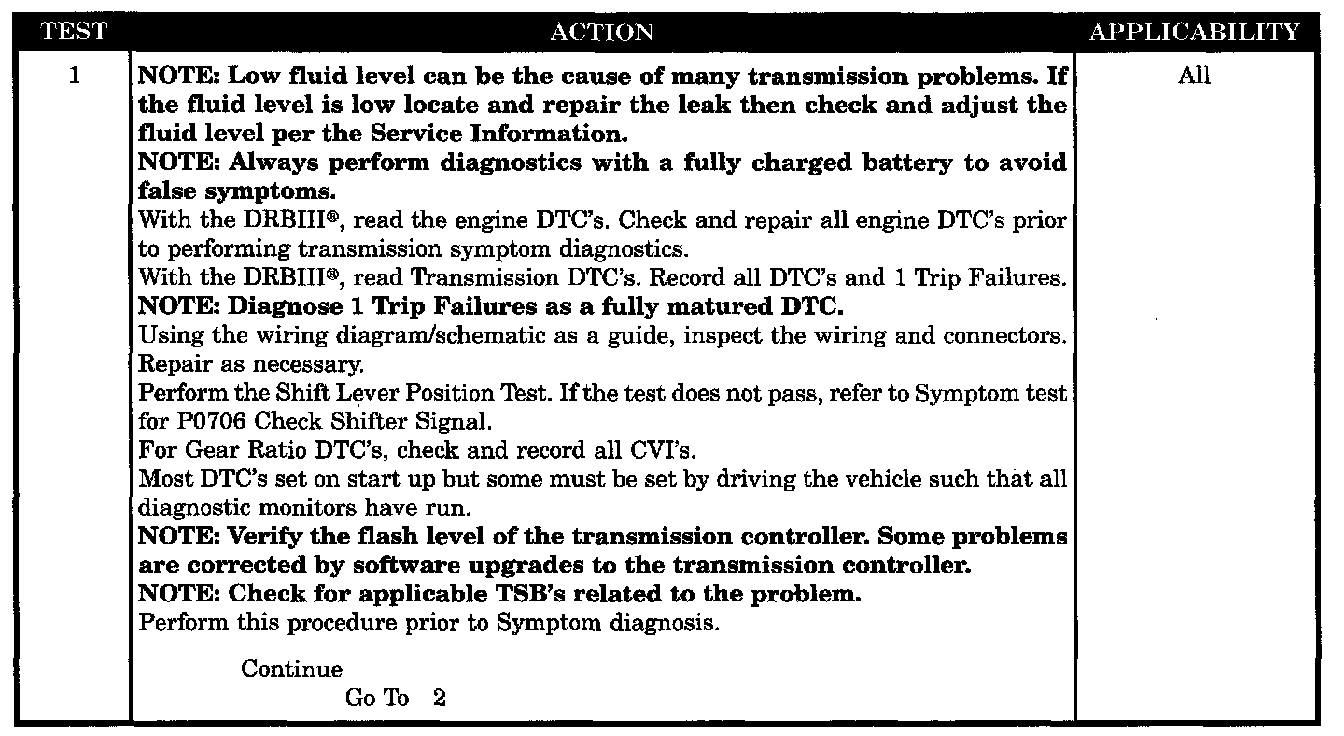

Test 1:

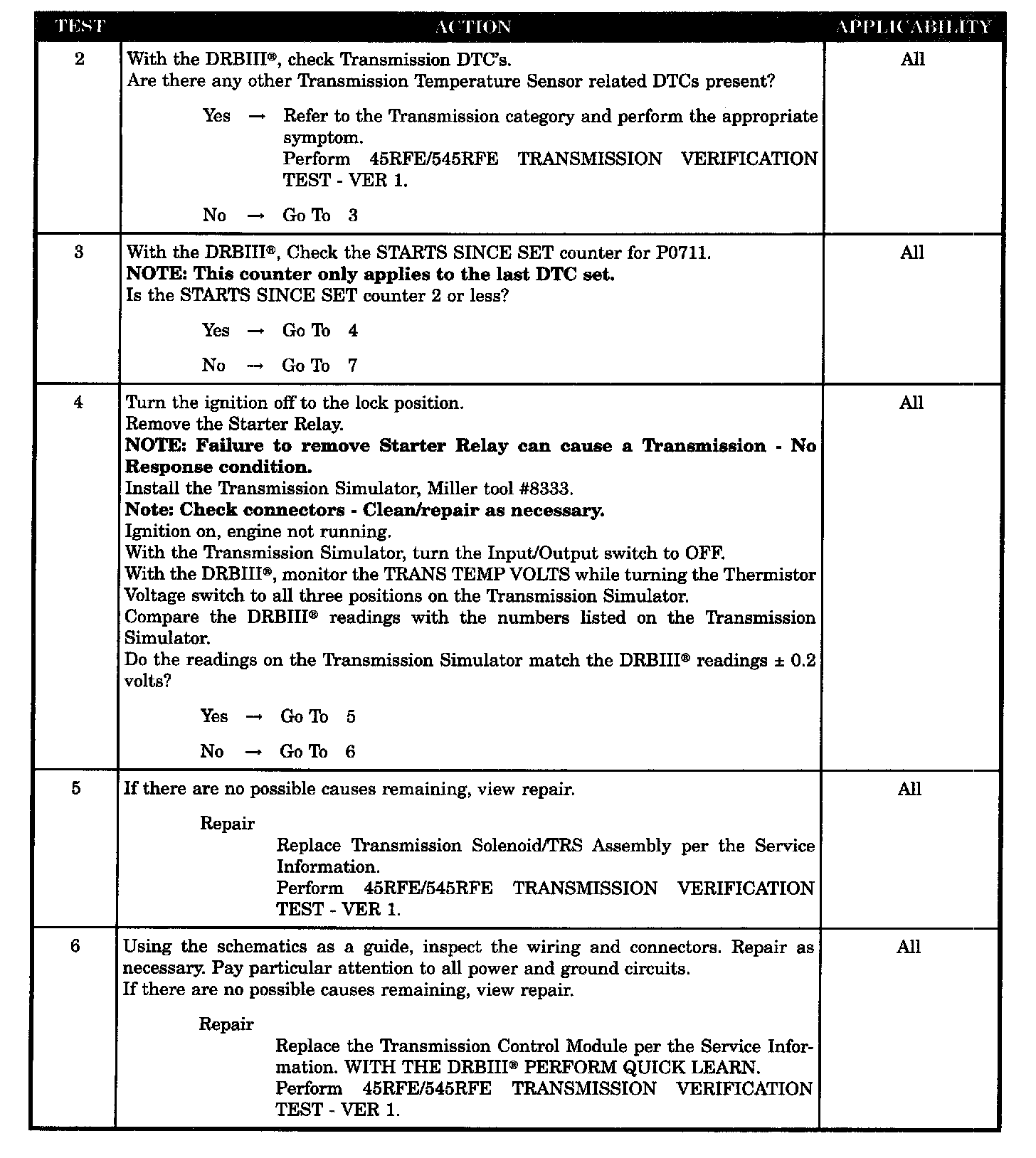

Test 2-6:

Test 7:

SYMPTOM
P0711-TRANSMISSION TEMPERATURE SENSOR PERFORMANCE

WHEN MONITORED
Continuously with the ignition on and engine running.

SET CONDITION
This DTC will set when the desired transmission temperature does not reach a normal operating temperature within a given time frame. Time is variable due to ambient temperature.

Approximate times are starting temperature to warm up time:
-40 °F (-40 °C) = 35 min
-20 °F (-28 °C) = 25 min
20 °F (-6.6 °C) = 20 min
60 °F (15.5 °C) = 10 min)

POSSIBLE CAUSES
- RELATED DTC'S PRESENT
- TRANSMISSION TEMPERATURE SENSOR
- TRANSMISSION CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS
