P0706

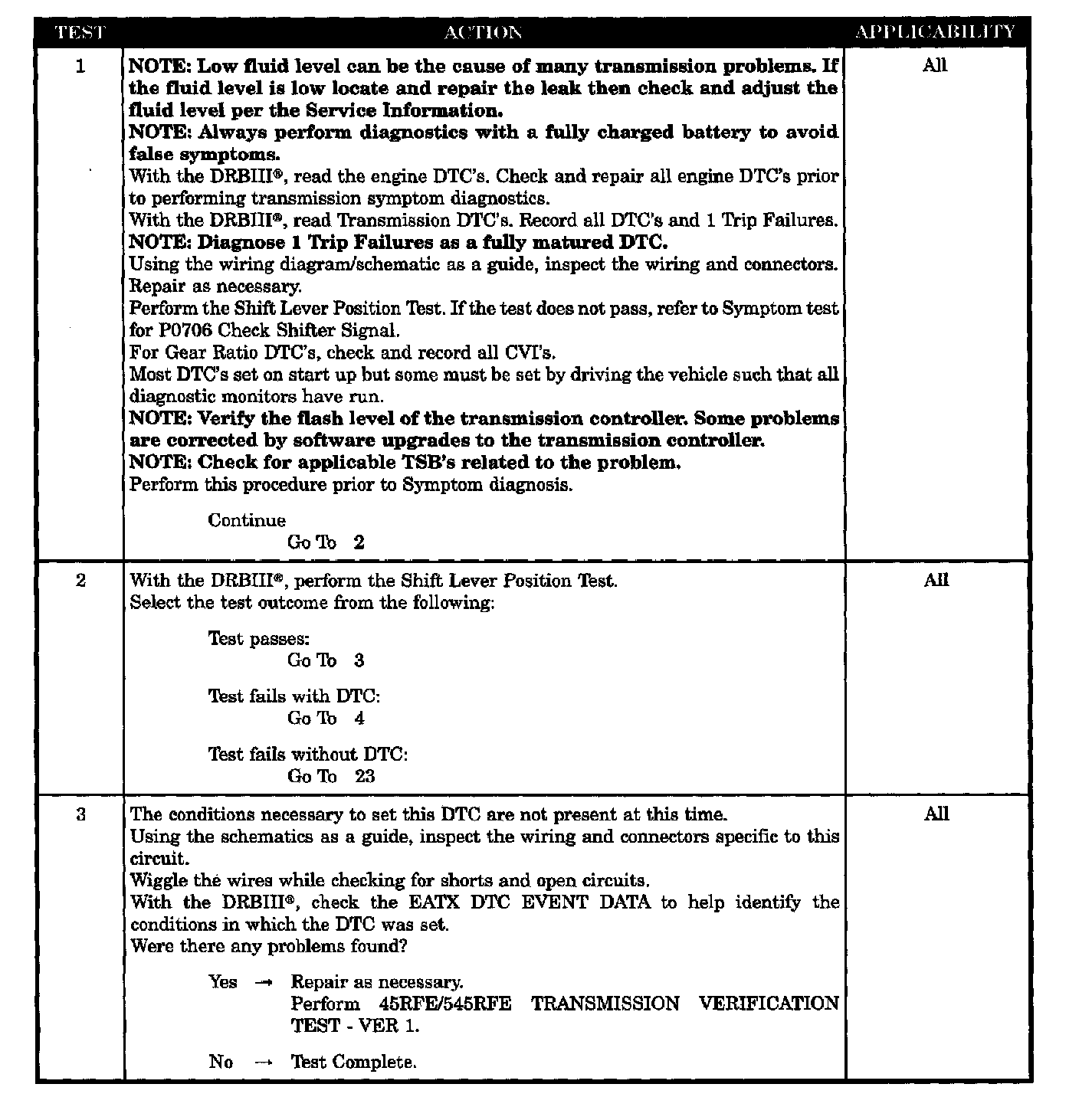

Test 1-3:

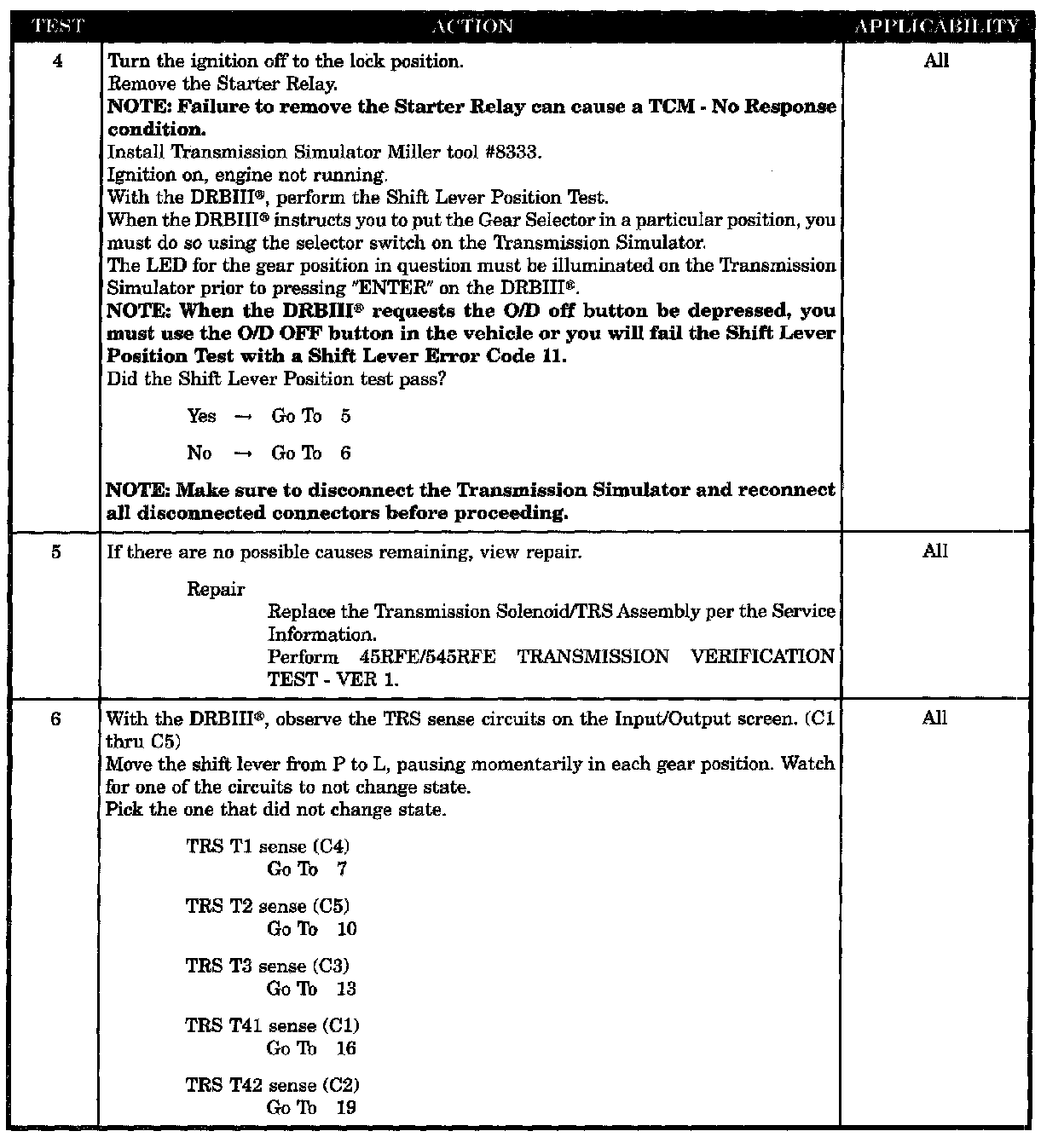

Test 4-6:

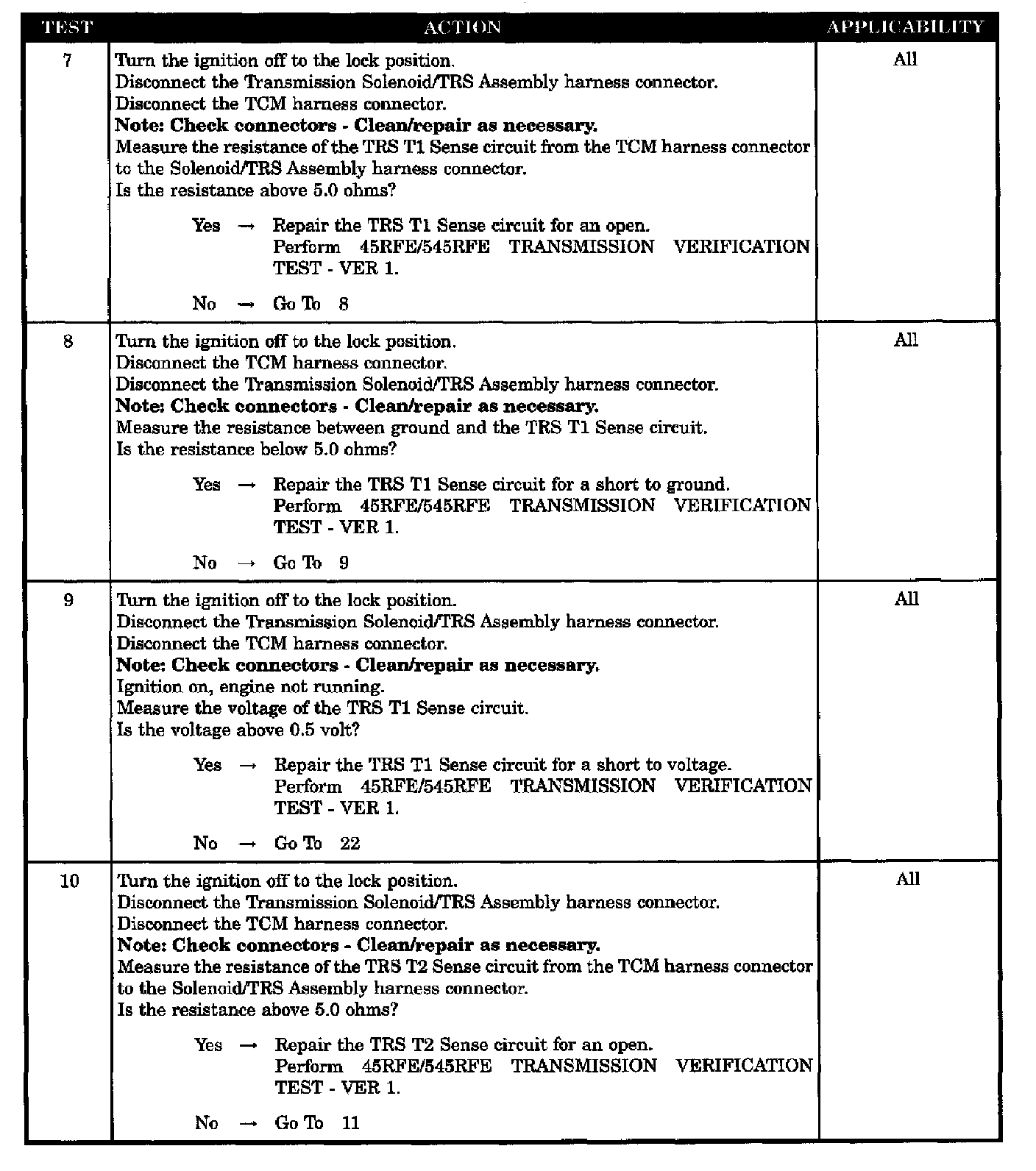

Test 7-10:

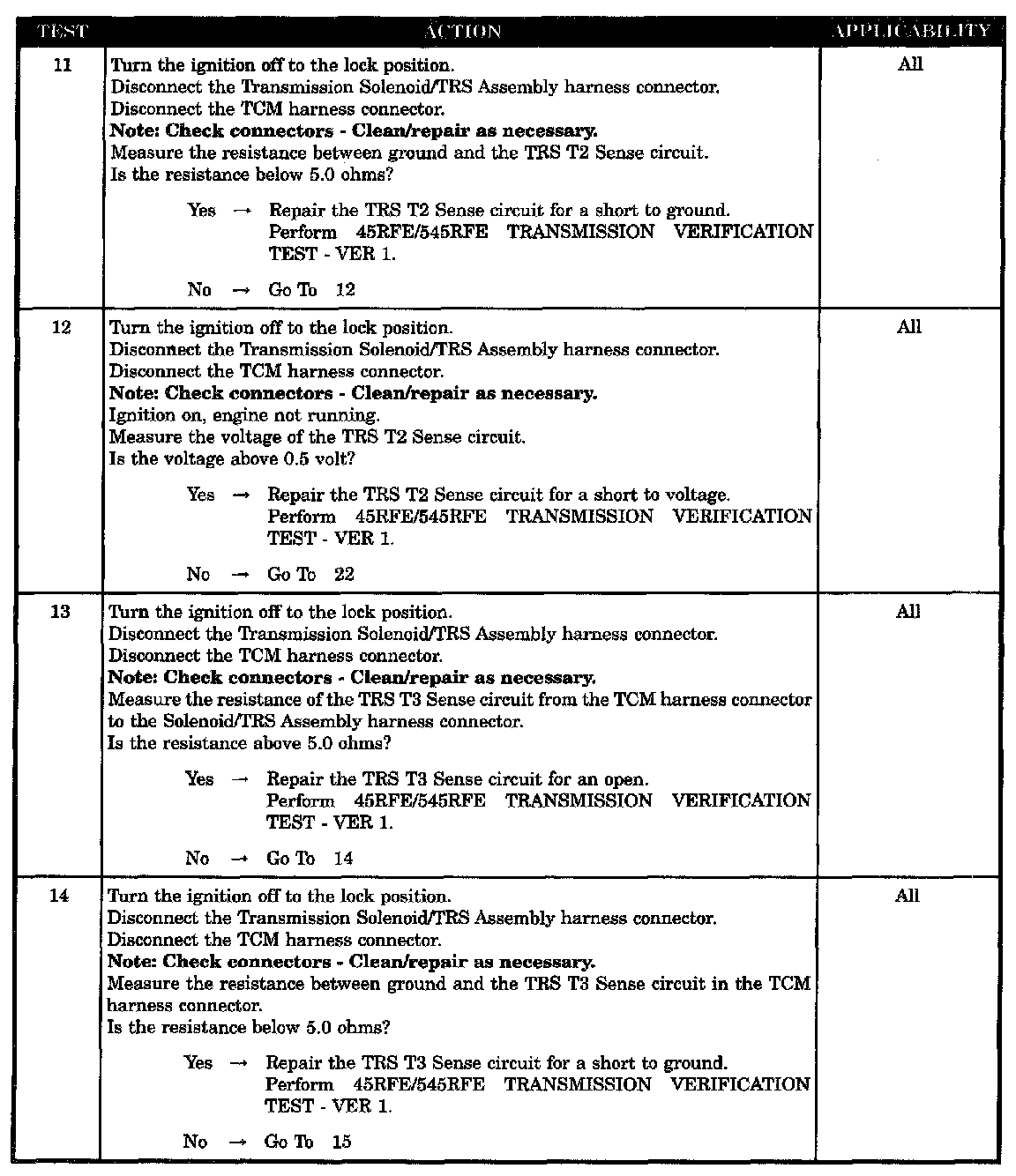

Test 11-14:

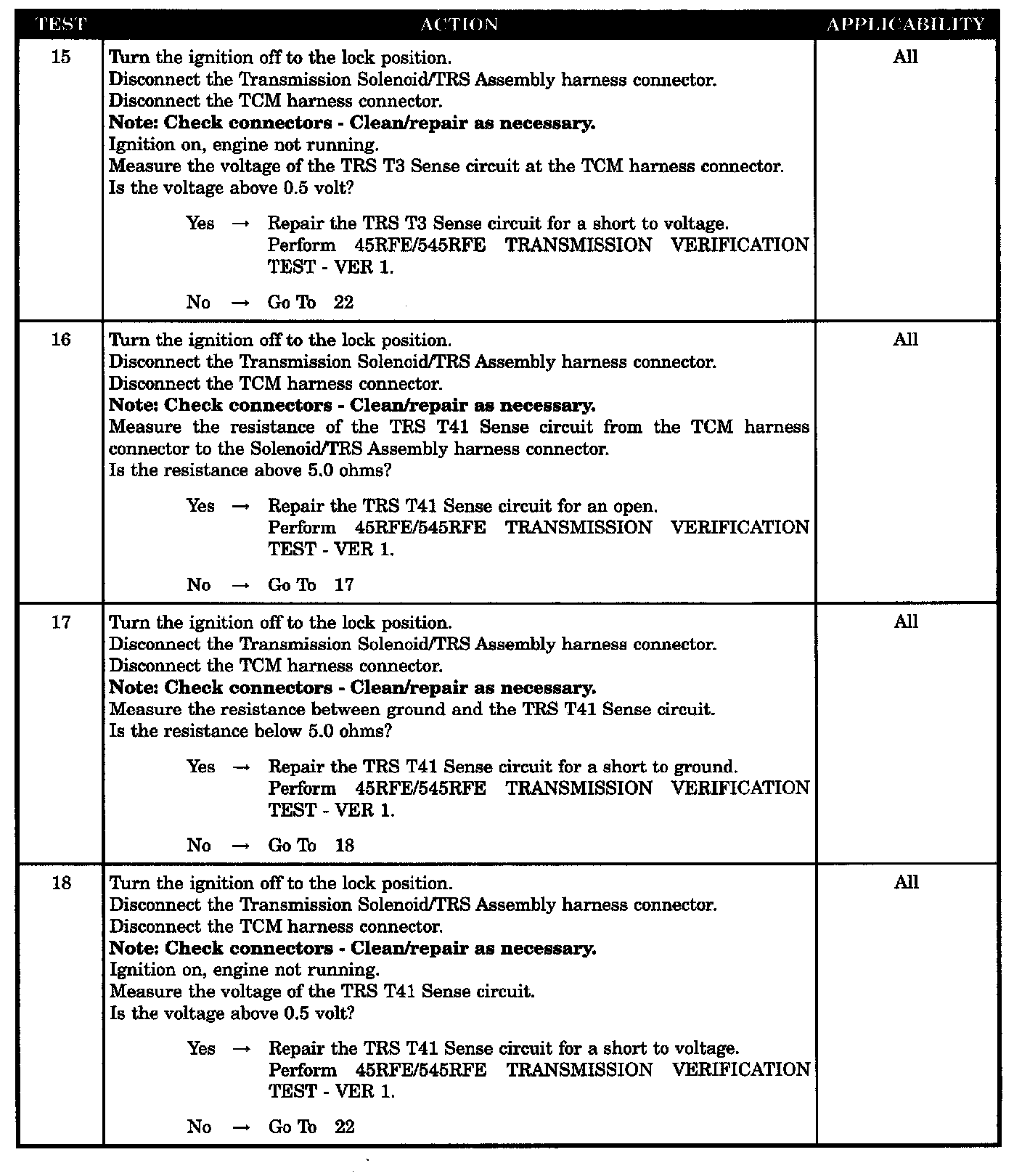

Test 15-18:

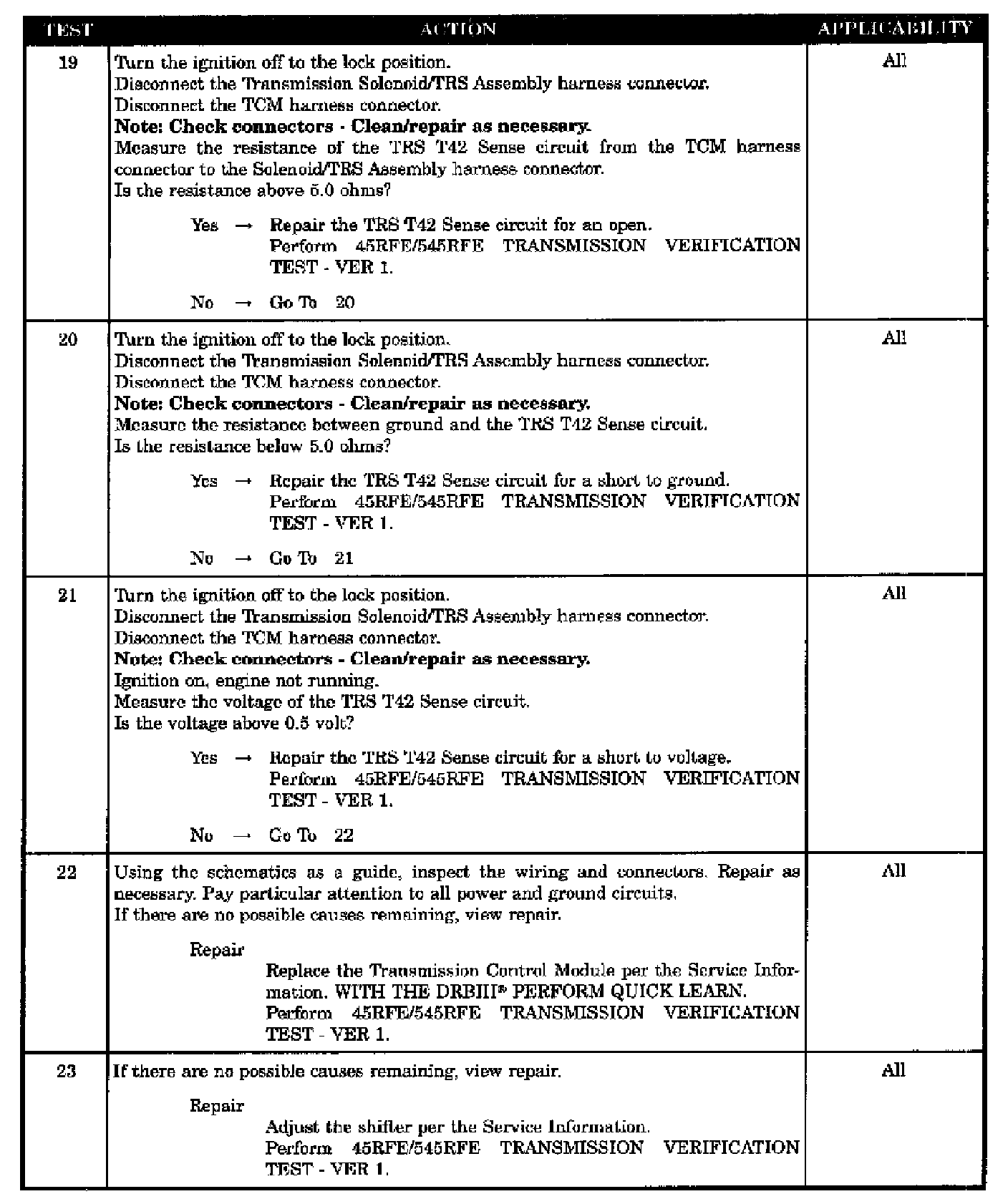

Test 19-23:

SYMPTOM
P0706-CHECK SHIFTER SIGNAL

WHEN MONITORED
Continuously with the ignition on.

SET CONDITION
3 occurrences in one ignition start with a invalid PRNDL code, which lasts for more than 0.1 second.

POSSIBLE CAUSES
- SHIFTER OUT OF ADJUSTMENT
- TRS T1 SENSE CIRCUIT OPEN
- TRS T2 SENSE CIRCUIT OPEN
- TRS T3 SENSE CIRCUIT OPEN
- TRS T41 SENSE CIRCUIT OPEN
- TRS T42 SENSE CIRCUIT OPEN
- TRS T1 SENSE CIRCUIT SHORT TO GROUND
- TRS T2 SENSE CIRCUIT SHORT TO GROUND
- TRS T3 SENSE CIRCUIT SHORT TO GROUND
- TRS T41 SENSE CIRCUIT SHORT TO GROUND
- TRS T42 SENSE CIRCUIT SHORT TO GROUND
- TRS T1 SENSE CIRCUIT SHORT TO VOLTAGE
- TRS T2 SENSE CIRCUIT SHORT TO VOLTAGE
- TRS T3 SENSE CIRCUIT SHORT TO VOLTAGE
- TRS T41 SENSE CIRCUIT SHORT TO VOLTAGE
- TRS T42 SENSE CIRCUIT SHORT TO VOLTAGE
- TRANSMISSION RANGE SENSOR
- TRANSMISSION CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS
