P0462

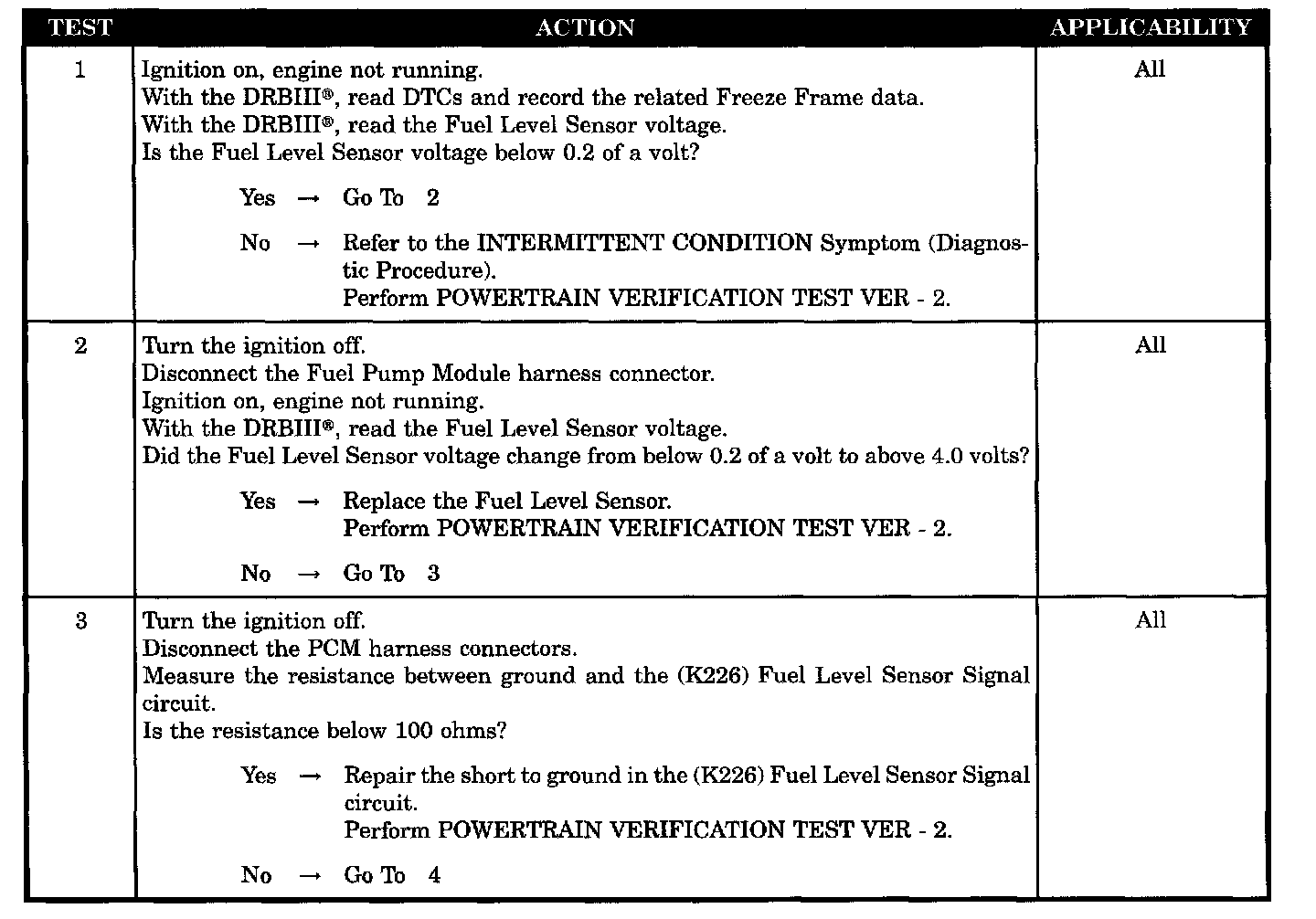

Test 1 - 3:

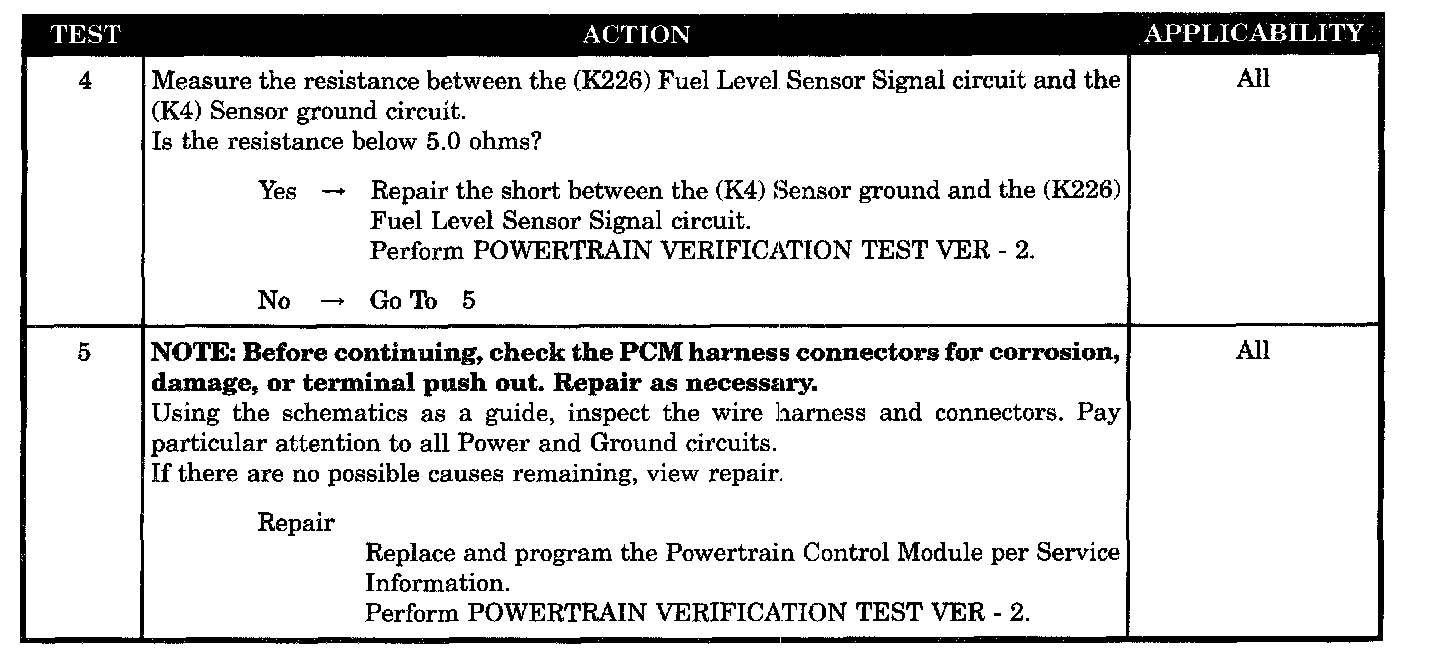

Test 4 - 5:

SYMPTOM
P0462-FUEL LEVEL SENDING UNIT VOLTAGE TOO LOW

WHEN MONITORED
Ignition on and battery voltage above 10.4 volts.

SET CONDITION
The Fuel Level Sensor signal voltage goes below 0.2 of a volt at the PCM for more than 5 seconds.

POSSIBLE CAUSES
- Fuel Level Sensor Voltage Below 0.2 of a Volt
- Fuel Level Sensor
- (K226) fuel level sensor signal circuit shorted to ground
- (K226) fuel level sensor signal circuit shorted to (K4) sensor ground circuit
- PCM
