P0218

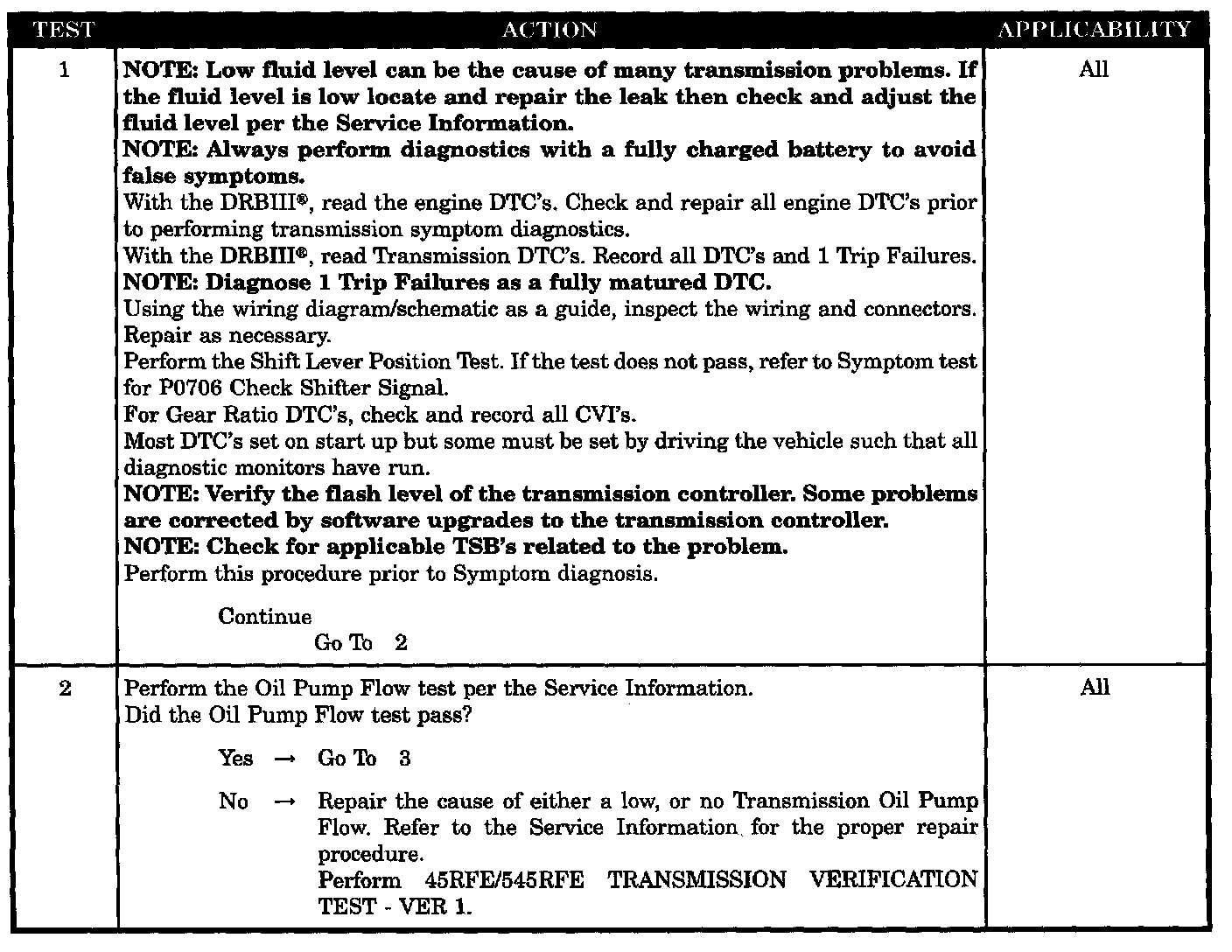

Test 1-2:

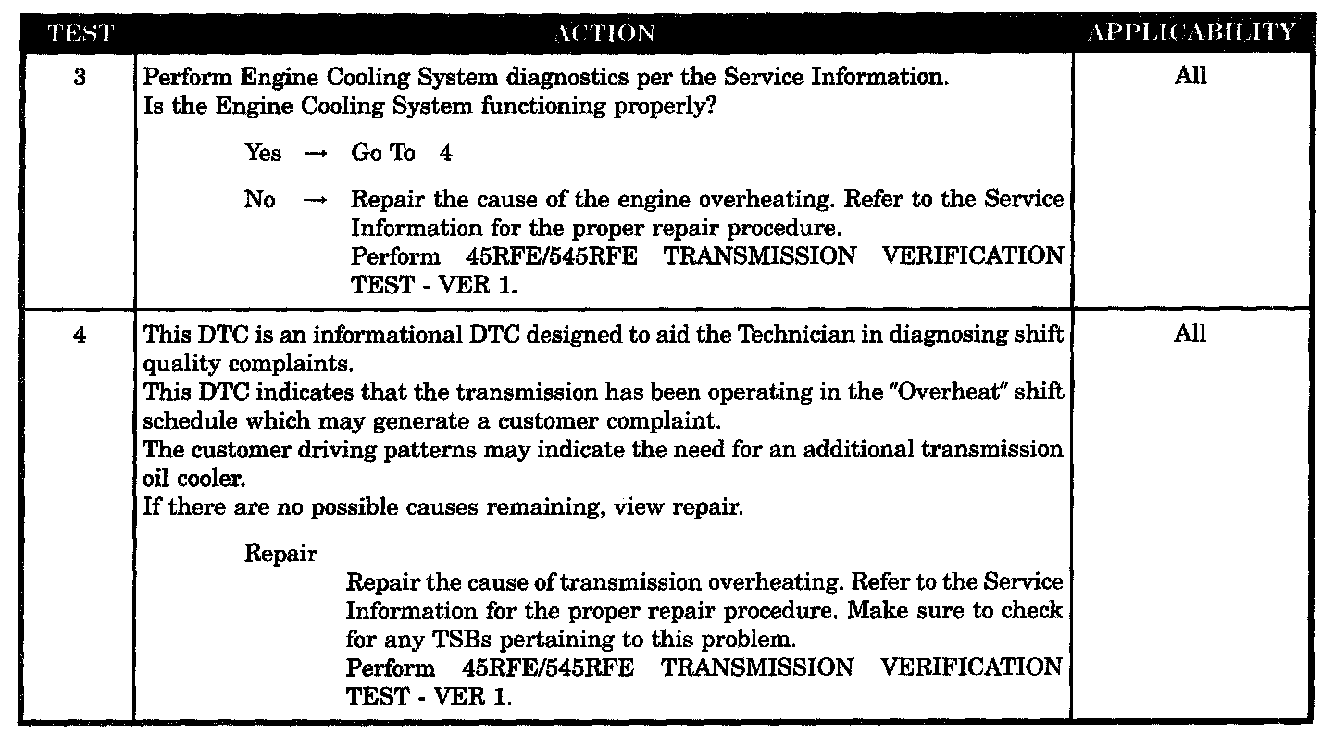

Test 3-4:

SYMPTOM
P0218-HIGH TEMPERATURE OPERATION ACTIVATED

WHEN MONITORED
Whenever the engine is running.

SET CONDITION
Immediately when the Overheat shift schedule is activated with a Transmission Oil Temperature above 116° C or 240° F.

POSSIBLE CAUSES
- ENGINE COOLING SYSTEM
- TRANSMISSION OIL PUMP FLOW
- HIGH TEMPERATURE OPERATIONS ACTIVATED
