P0174

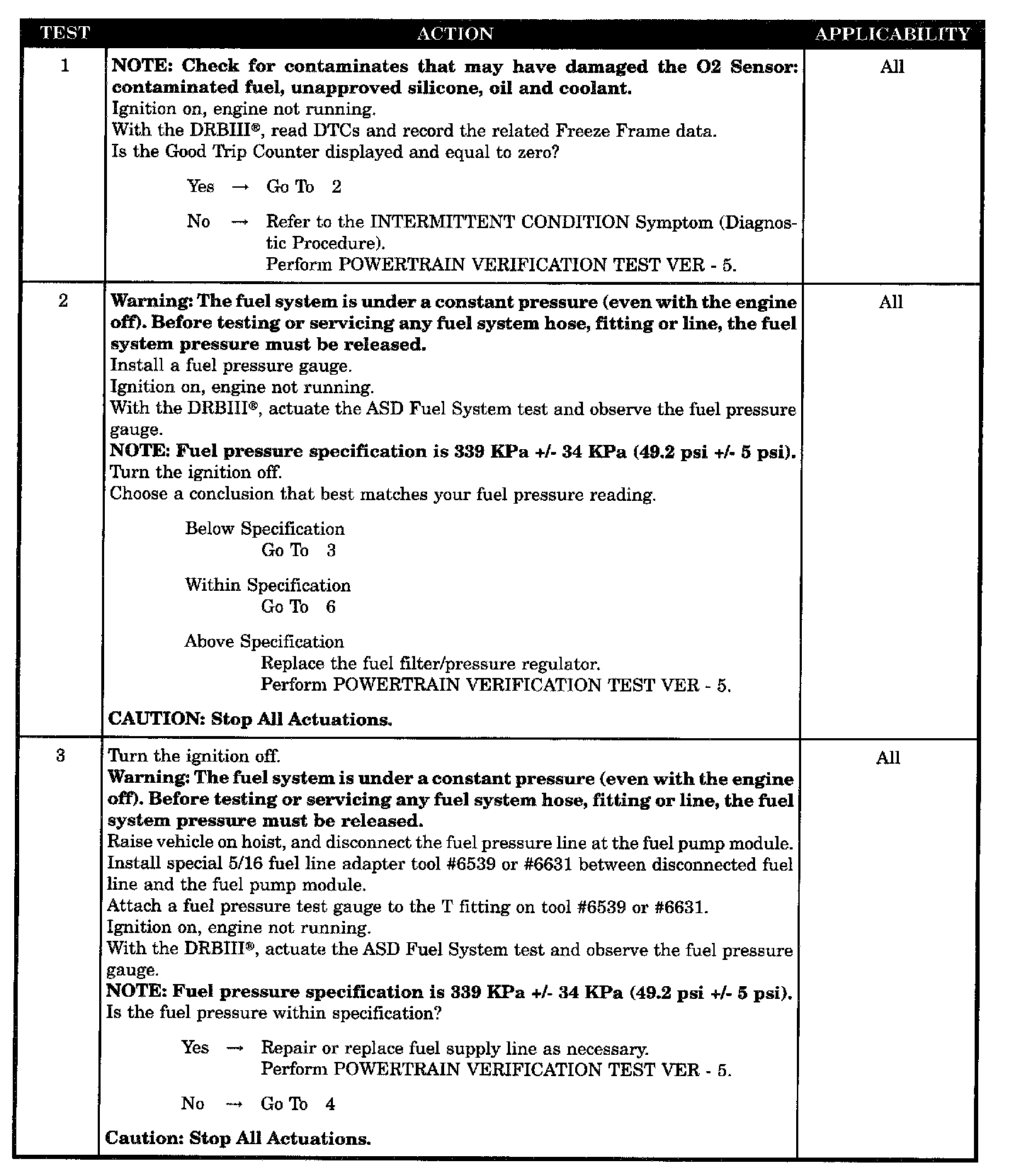

Test 1 - 3:

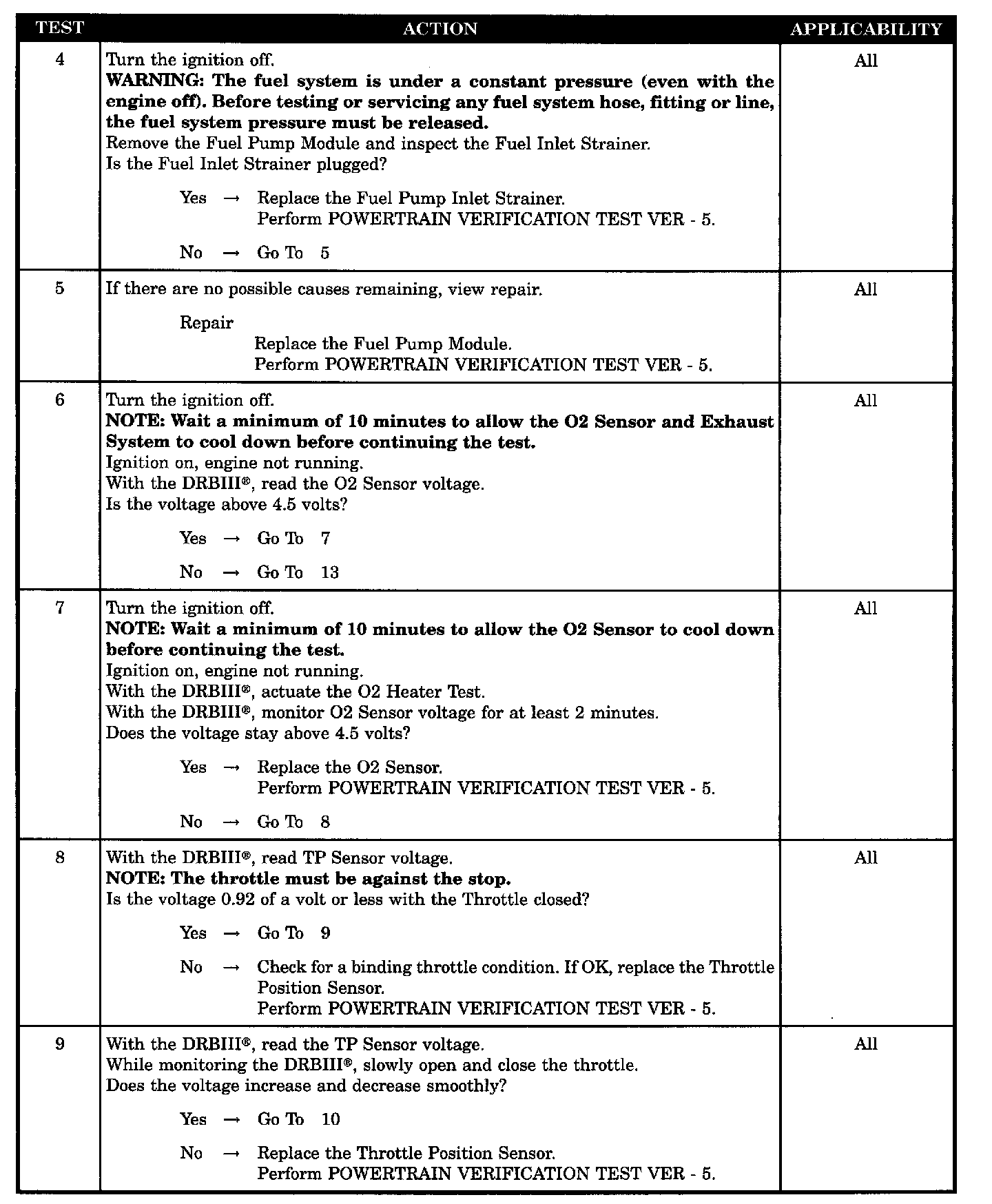

Test 4 - 9:

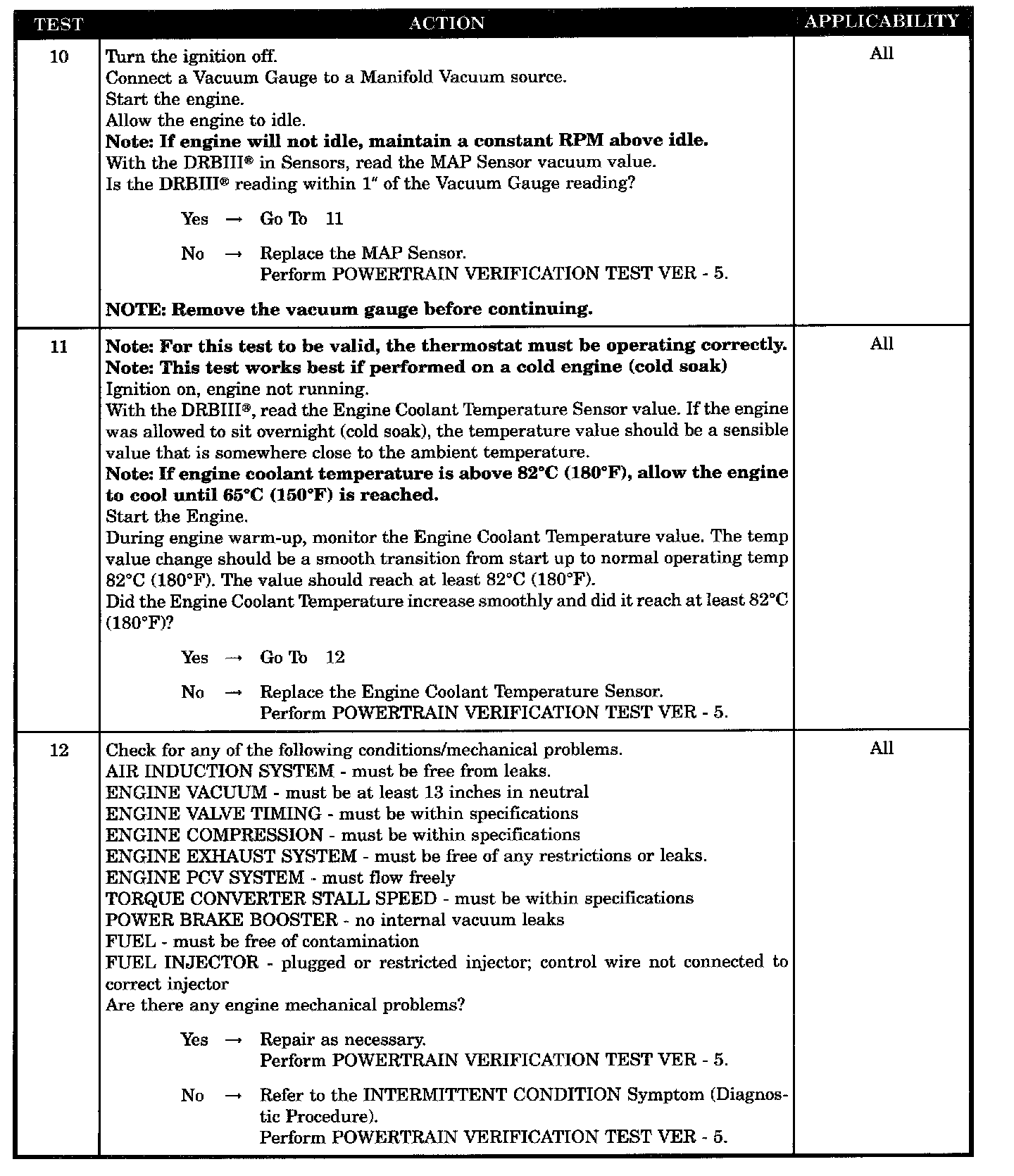

Test 10 - 12:

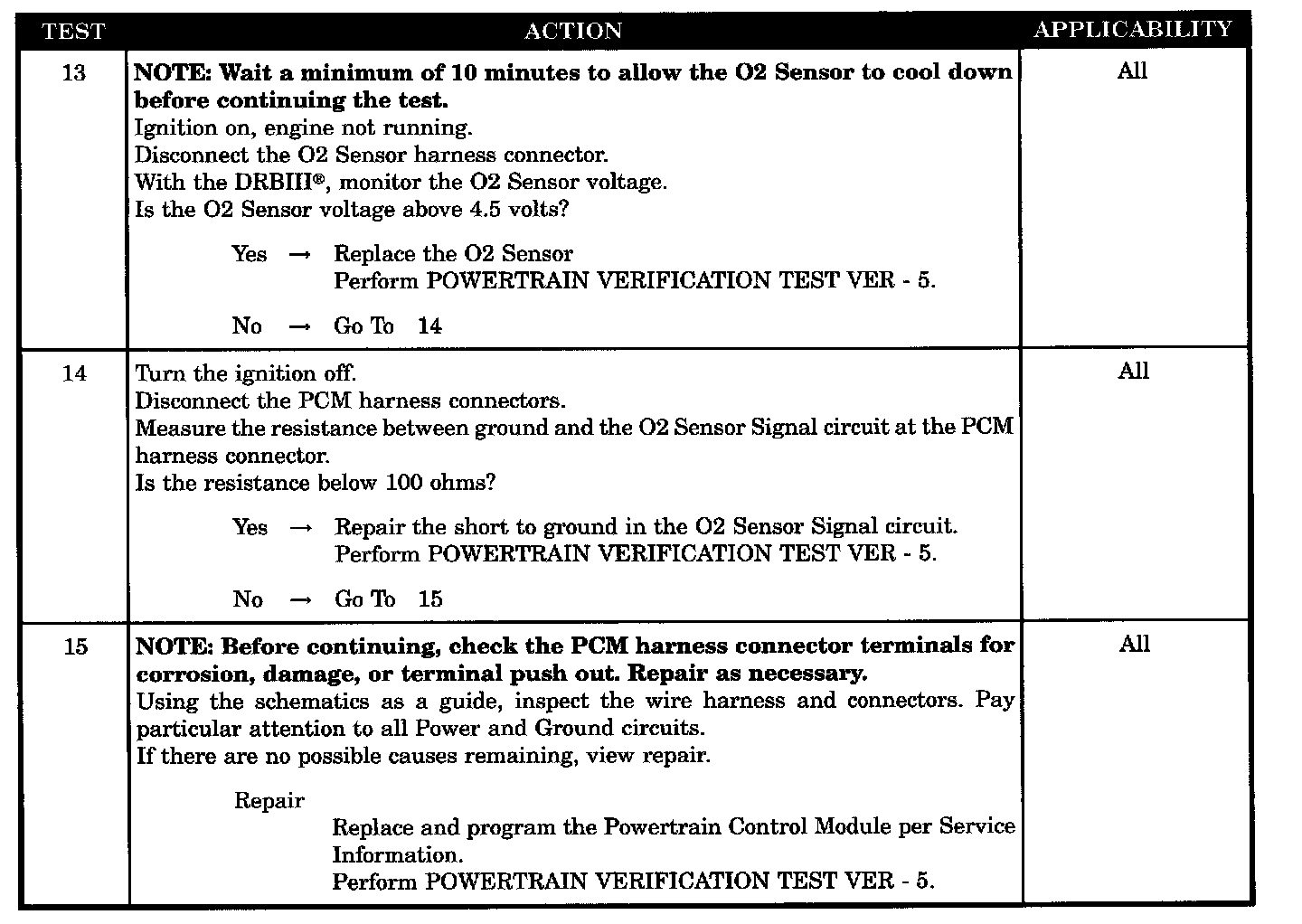

Test 13 - 15:

SYMPTOM
P0174-2/1 FUEL SYSTEM LEAN

TEST NOTE
This symptom is diagnosed using the P0171-1/1 FUEL SYSTEM LEAN.

WHEN MONITORED
With the engine running in closed loop mode, the ambient (battery temperature above 20 °F and altitude below 8000 ft.

SET CONDITION
If the PCM multiplies short term compensation by long term adaptive and a certain percentage is exceeded for two trips, a freeze frame is stored, the MIL illuminates and a trouble code is stored.

POSSIBLE CAUSES
- Good trip equal to zero
- Fuel pressure out of specs
- Restricted fuel supply line
- Fuel pump inlet strainer plugged
- Fuel pump module
- O2 sensor
- O2 sensor signal circuit shorted to ground
- O2 sensor heater operation
- TP sensor voltage greater than 0.92 of a volt with throttle closed
- TP sensor sweep
- MAP sensor operation
- ECT sensor operation
- Engine Mechanical Problem
- Fuel Filter/pressure Regulator
- Intermittent Condition
- PCM
