P0172

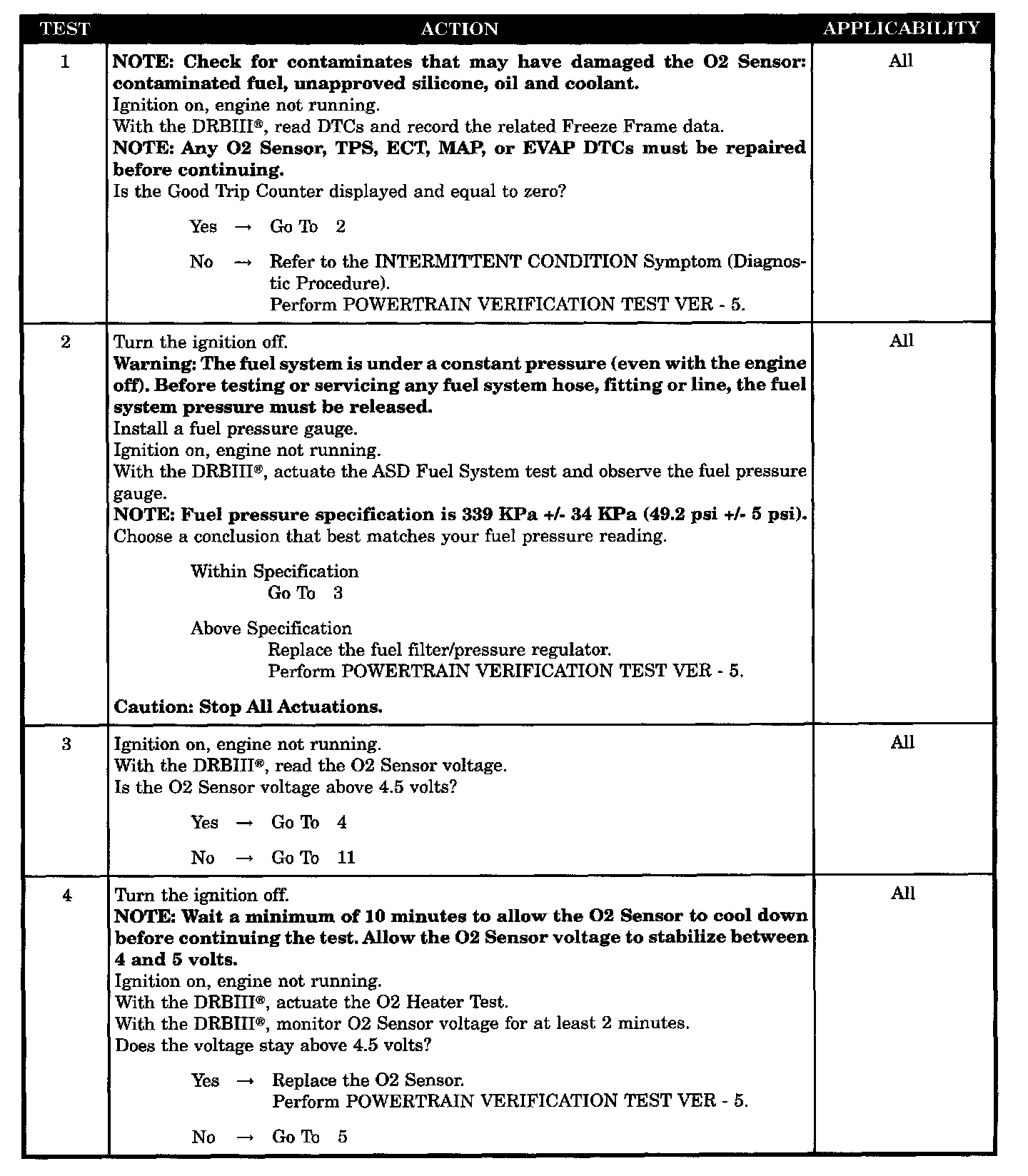

Test 1 - 4:

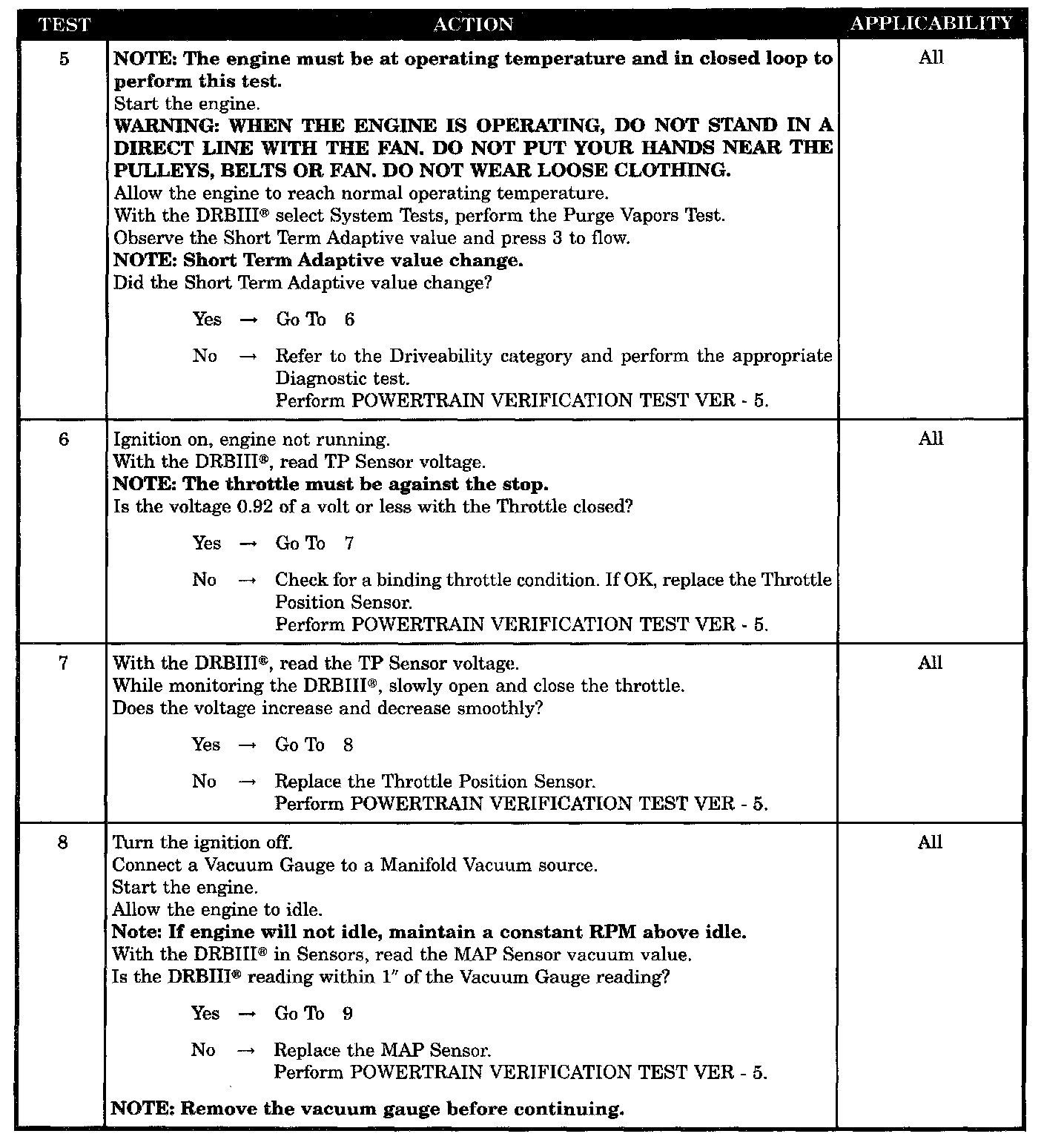

Test 5 - 8:

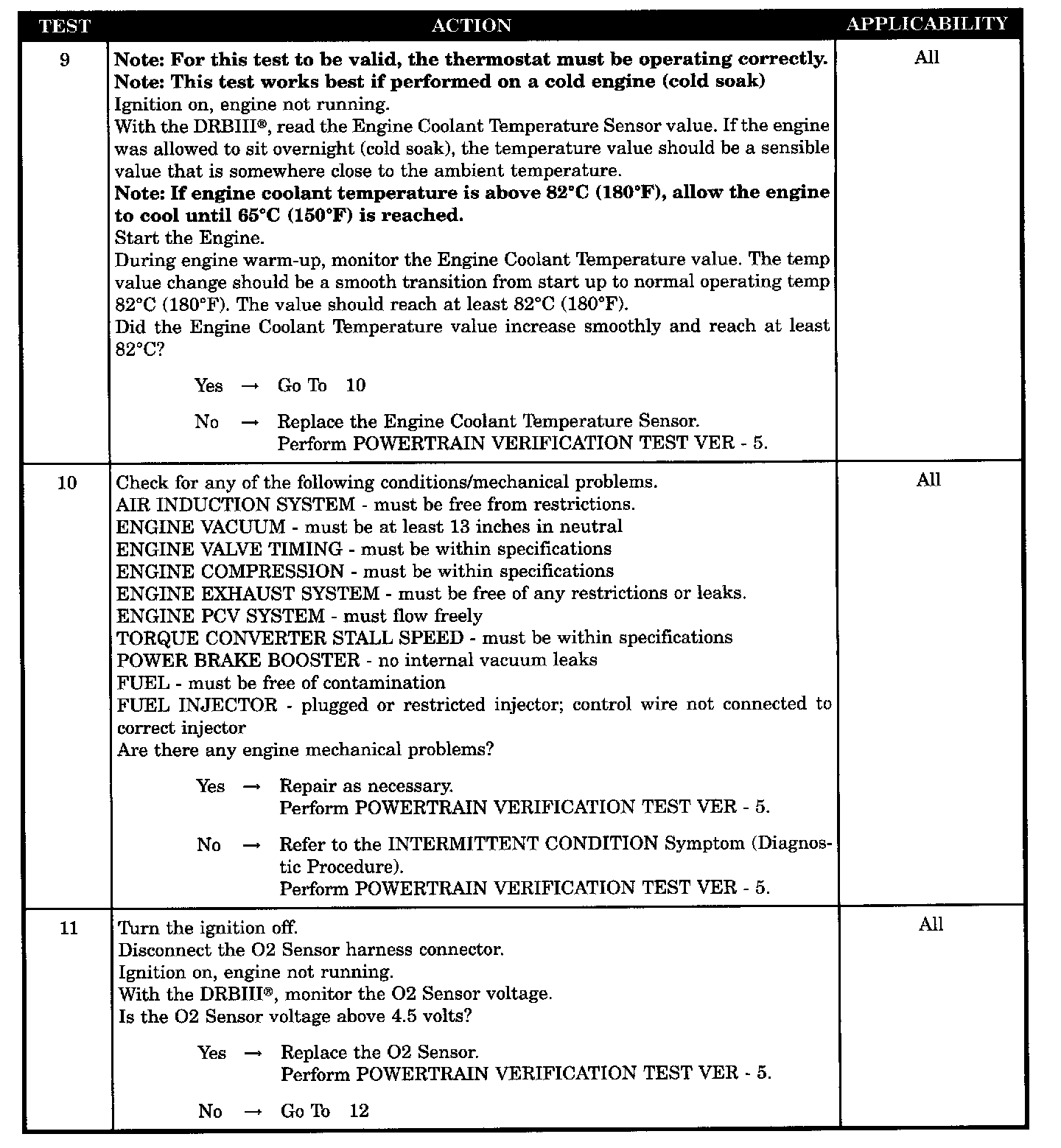

Test 9 - 11:

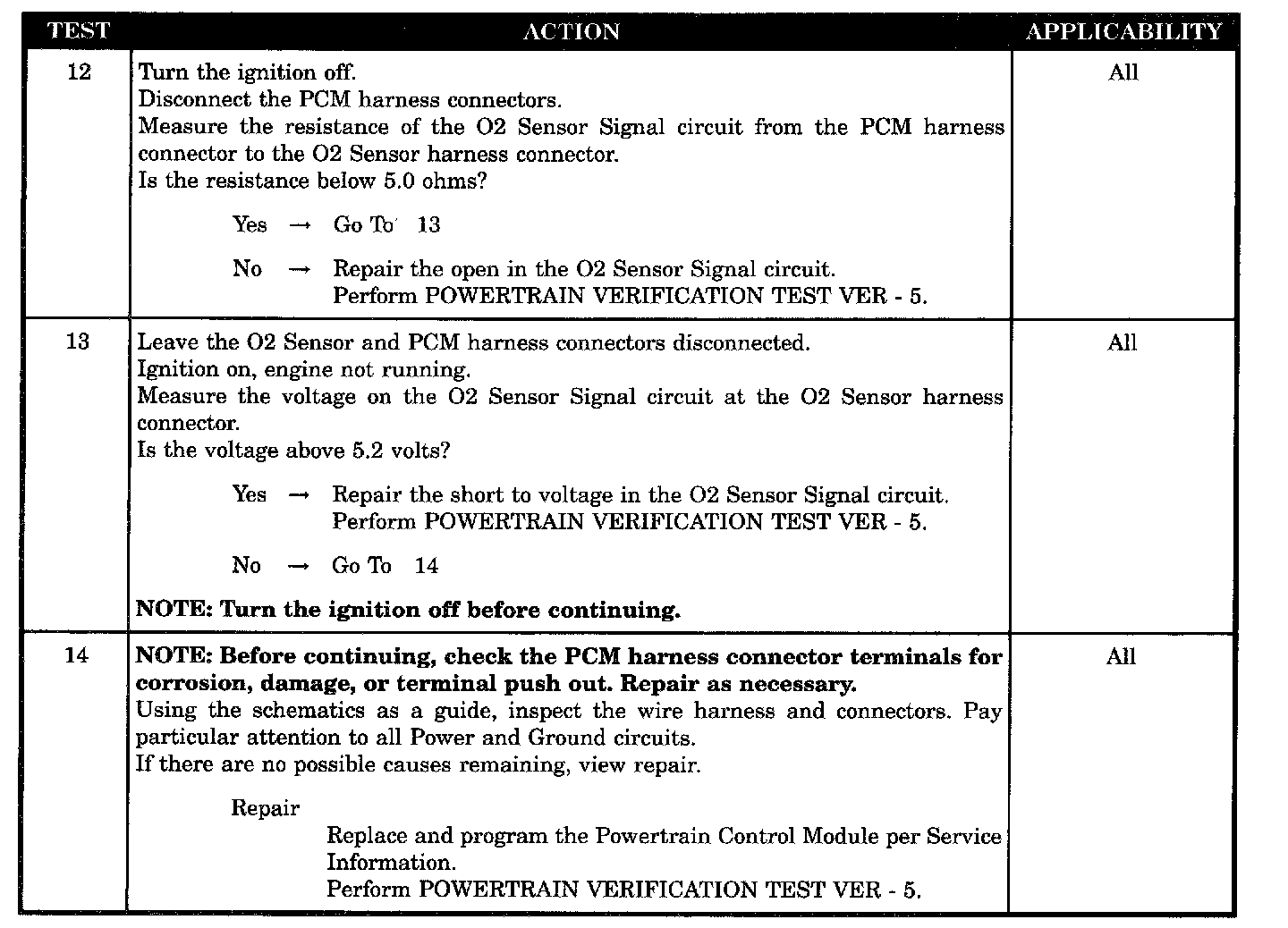

Test 12 - 14:

SYMPTOM
P0172-1/1 FUEL SYSTEM RICH

WHEN MONITORED
With the engine running in closed loop mode, the ambient/battery temperature above 20 °F and altitude below 8000 ft.

SET CONDITION
If the PCM multiplies short term compensation by long term adaptive and the result is below a certain value for two trips, a freeze frame is stored, the MIL illuminates and a trouble code is stored.

POSSIBLE CAUSES
- Good trip equal to zero
- Intermittent condition
- O2 sensor
- O2 sensor signal circuit open
- O2 sensor signal circuit shorted to voltage
- O2 sensor heater operation
- EVAP system operation
- TP sensor voltage greater than 0.92 of a volt with throttle closed
- TP sensor sweep
- Fuel filter/pressure regulator
- MAP sensor operation
- ECT sensor operation
- Engine mechanical problem
- PCM
