P0151

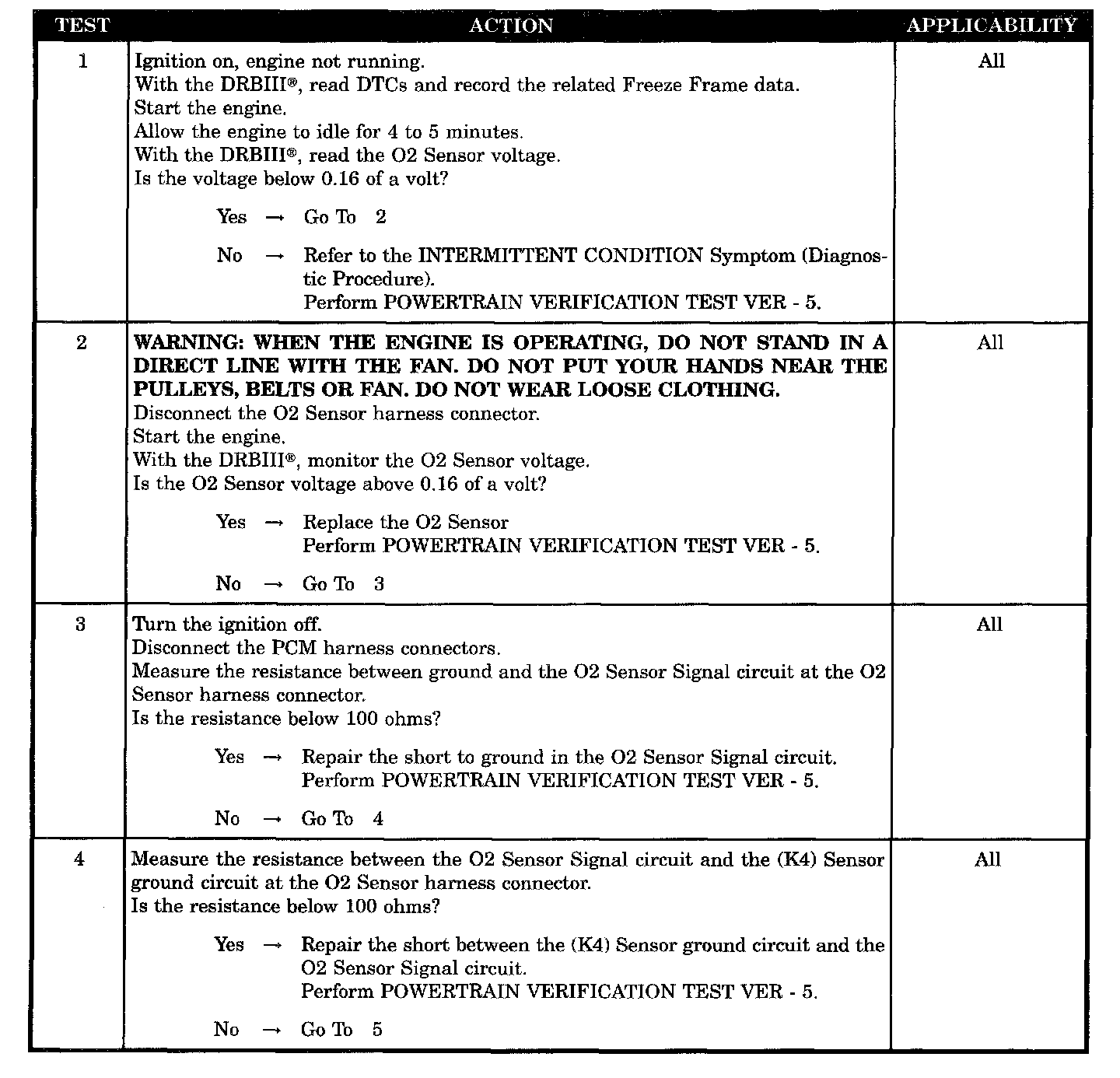

Test 1 - 4:

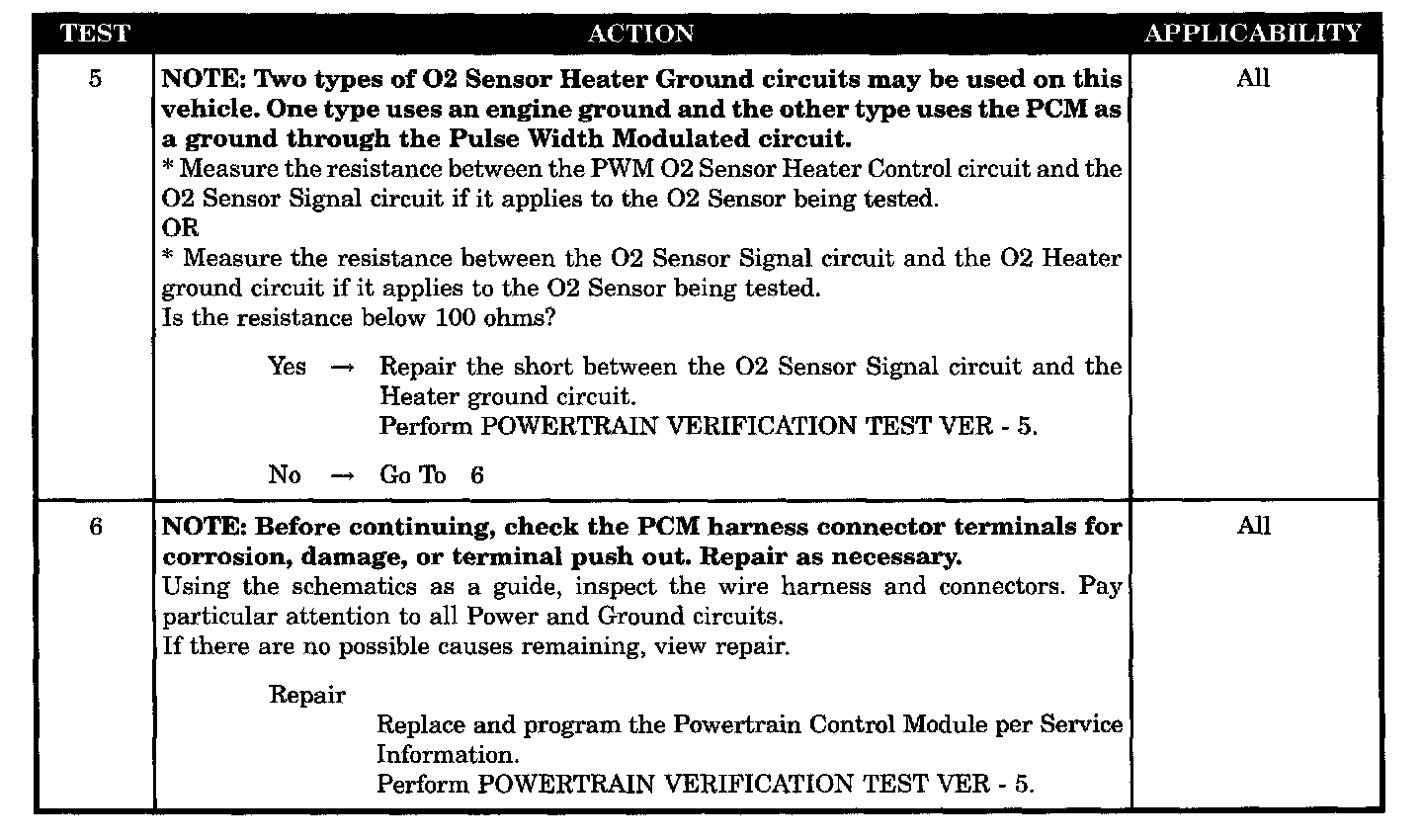

Test 5 - 6:

SYMPTOM
P0151-O2 SENSOR 2/1 VOLTAGE TOO LOW

Test NOTE
This symptom is diagnosed using the P0131-O2 SENSOR 1/1 VOLTAGE TOO LOW.

WHEN MONITORED
At a cold start, engine coolant below 98 °F, Ambient/Battery Sensor reading within 27 °F, and Engine Coolant Temperature above 170 °F on the previous key off.

SET CONDITION
The Oxygen Sensor signal voltage is below 0.156 of a volt for 28 seconds after starting engine.

POSSIBLE CAUSES
- O2 sensor below 0.16 of a volt
- O2 sensor operation
- O2 sensor signal circuit shorted to ground
- O2 sensor signal circuit shorted to (K4) sensor ground circuit
- O2 sensor signal shorted to heater ground circuit
- PCM
