P0037

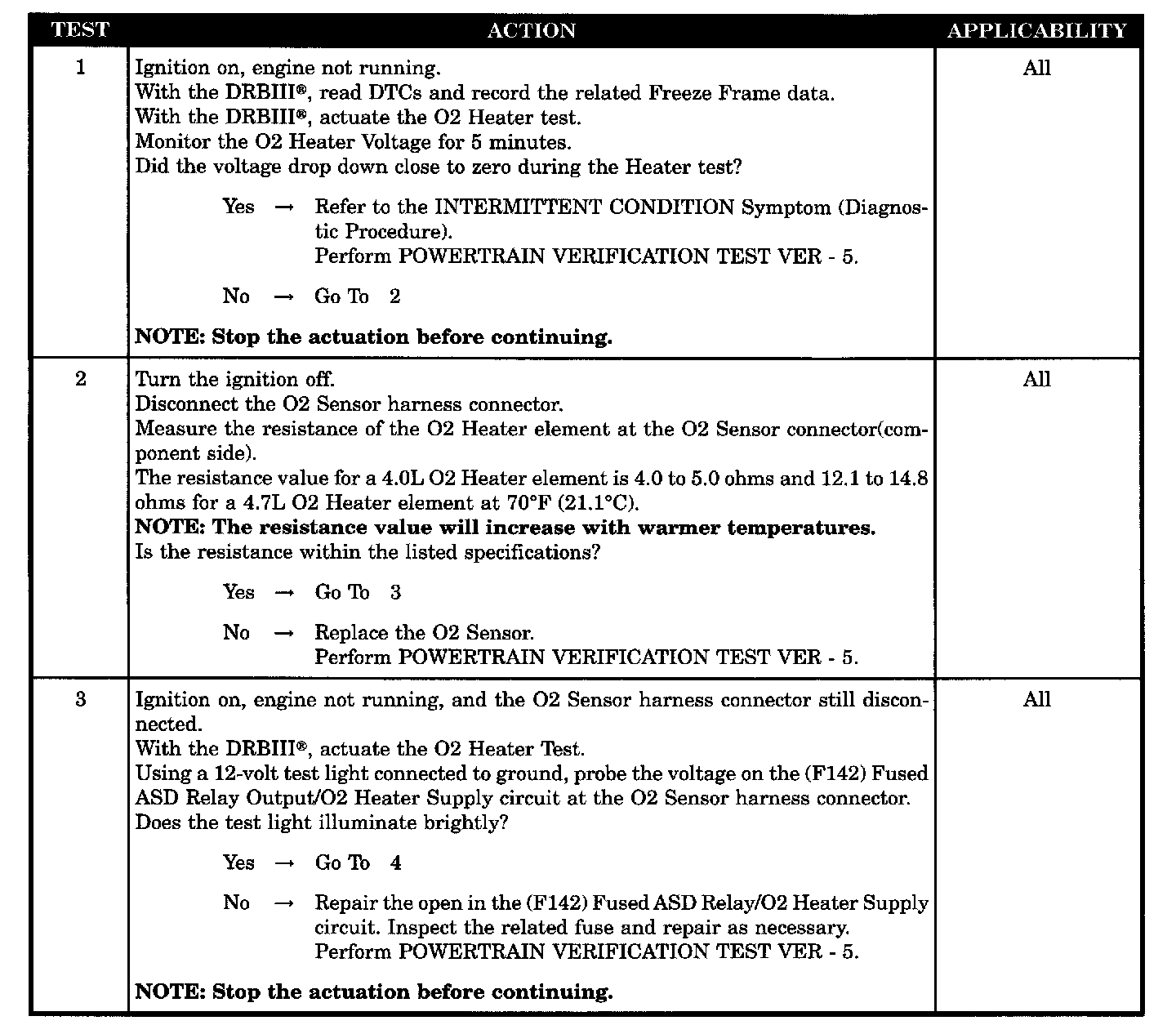

Test 1 - 3:

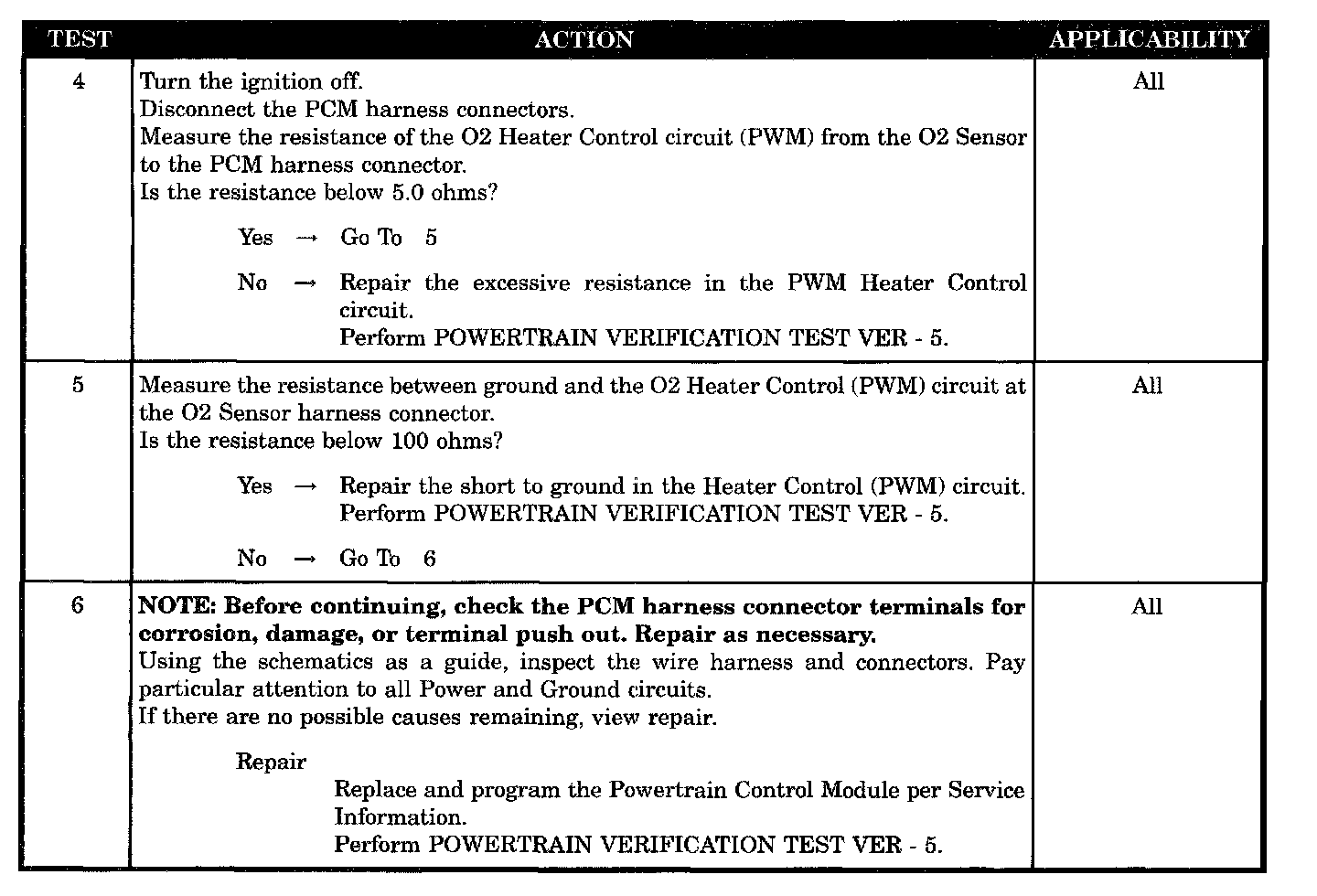

Test 4 - 6:

SYMPTOM
P0037-O2 SENSOR 1/2 HEATER CIRCUIT LOW

TEST NOTE
This symptom is diagnosed using the P0031-O2 SENSOR 1/1 HEATER CIRCUIT LOW.

WHEN MONITORED
Battery voltage above 10.6 volts, ASD is powered up, and O2 heater is on.

SET CONDITION
Desired state does not equal Actual state.

POSSIBLE CAUSES
- O2 Heater test
- O2 Sensor heater element
- (F142) fused ASD relay output circuit open
- Heater Control circuit open
- Heater Control circuit shorted to ground
- PCM
