Wiper Park Switch Failure

Test 1:

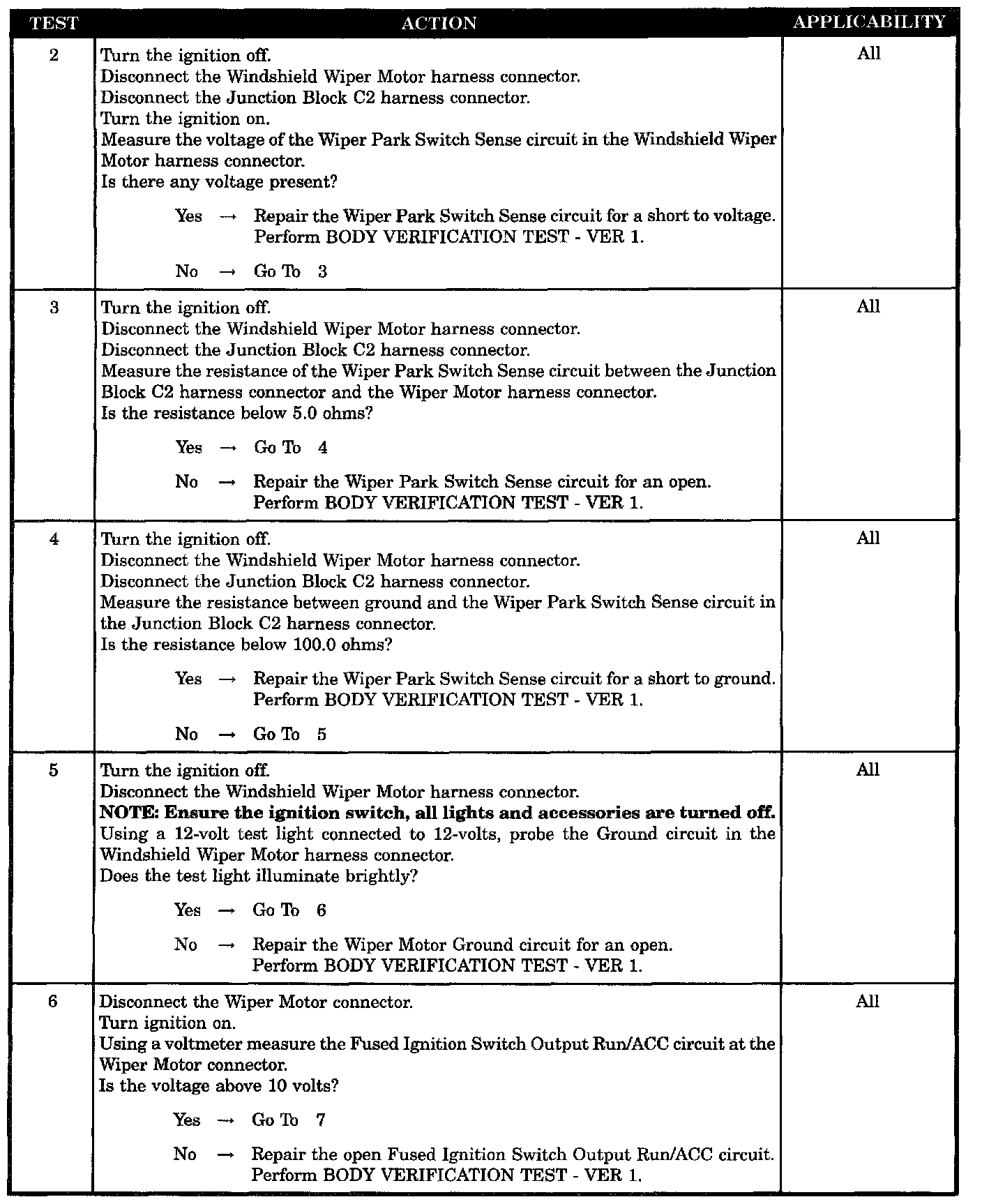

Test 2 - 6:

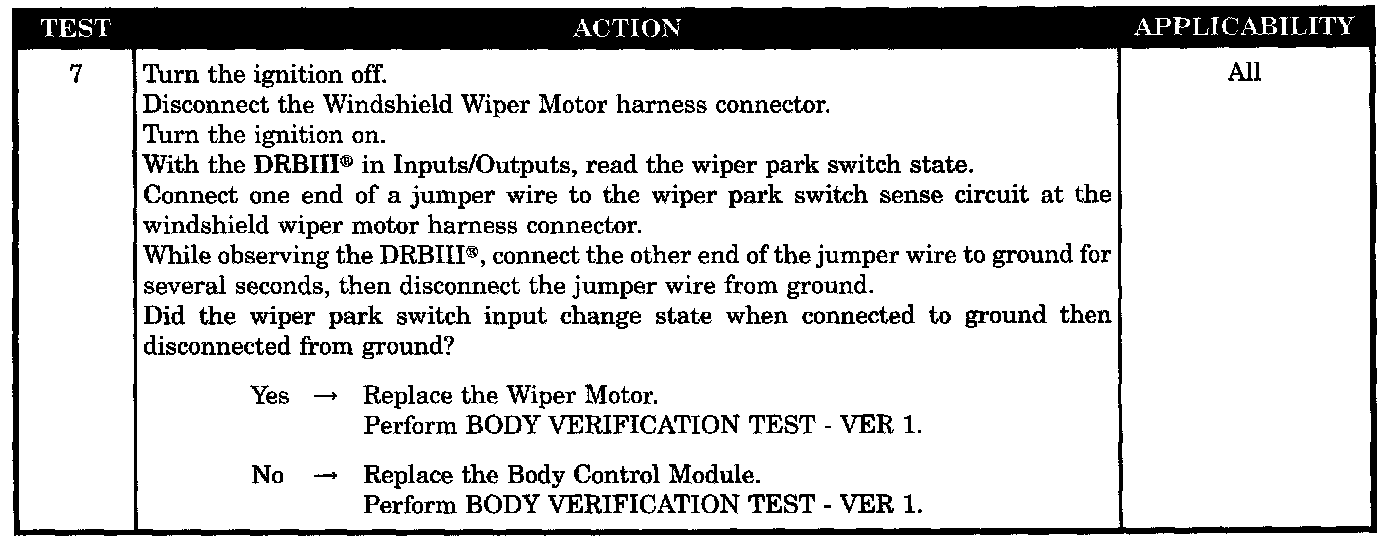

Test 7:

SYMPTOM
WIPER PARK SWITCH FAILURE

WHEN MONITORED
The ignition must be in the run position and battery voltage supplied to the BCM on the Fused B(+) circuit.

SET CONDITION
The code Will set if the BCM does not detect a low to high voltage transition on the Wiper Park Switch Sense circuit within 8 seconds after energizing the wiper relay On/Off relay.

POSSIBLE CAUSES
- Wiper park switch operation
- Wiper park switch sense circuit short to voltage
- Wiper park switch sense circuit open
- Wiper park switch sense circuit short to ground
- Ground circuit open
- Fused ignition switch output run/acc circuit open
- Wiper motor operation
- BCM
