Wiper On/Off Relay Shorted Low/Open Circuit

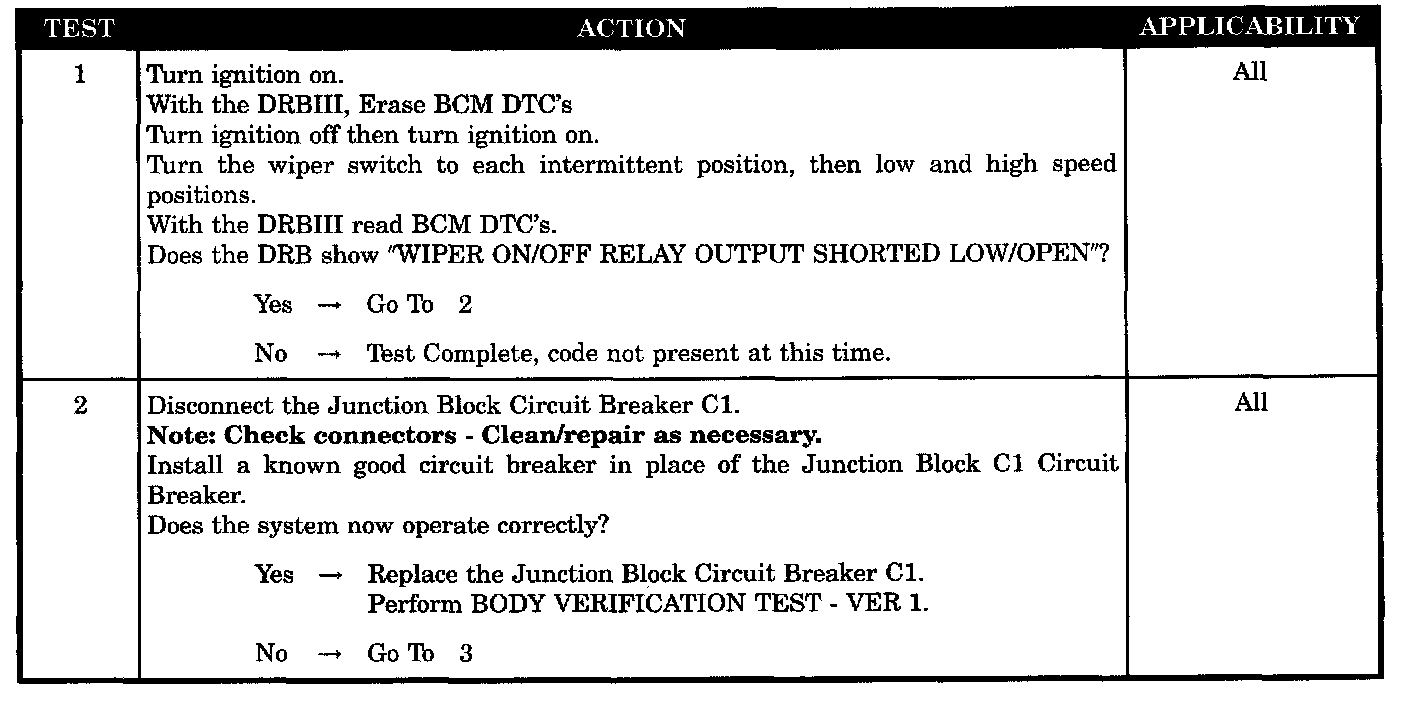

Test 1 - 2:

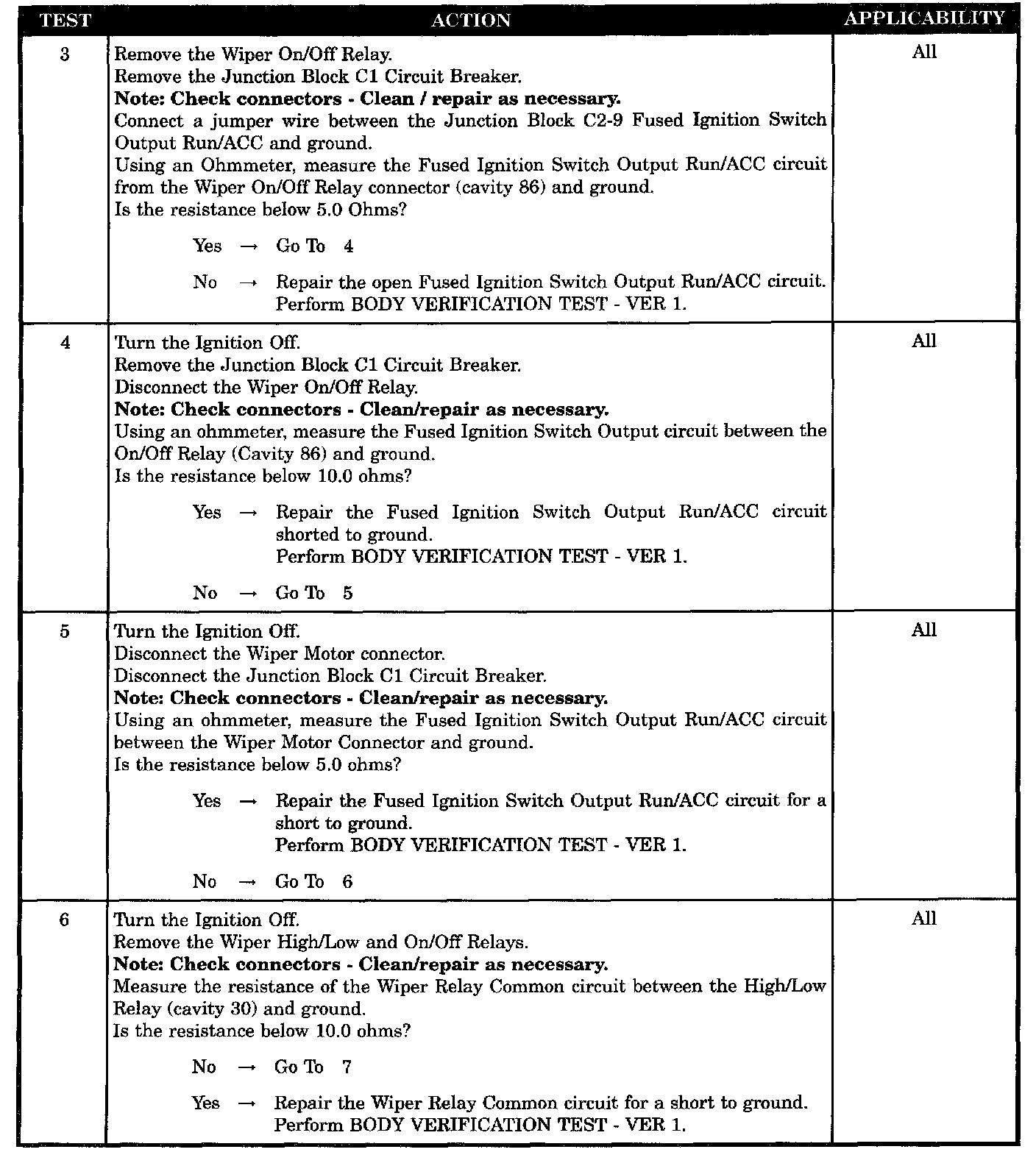

Test 3 - 6:

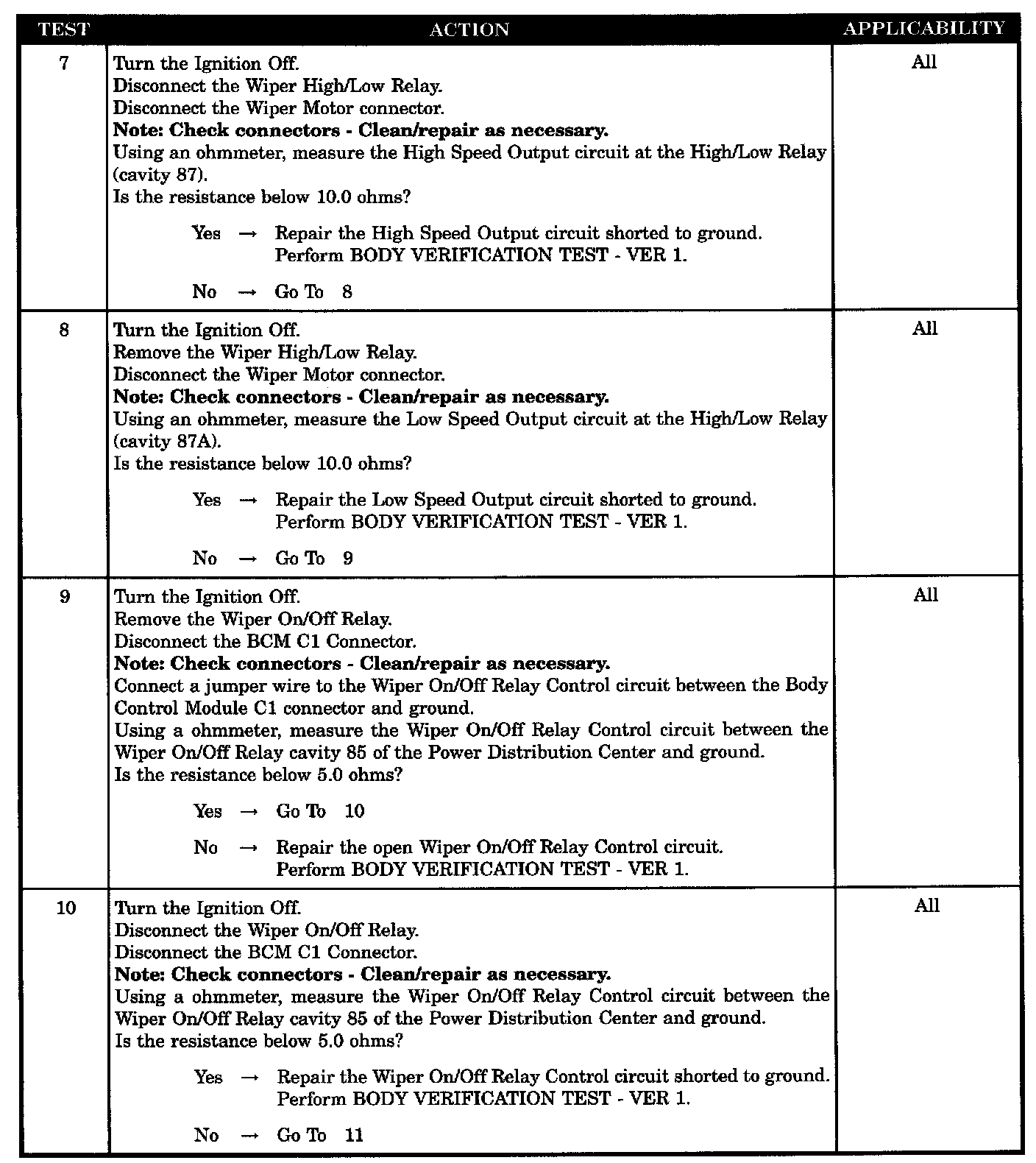

Test 7 - 10:

Test 11:

SYMPTOM
WIPER ON/OFF RELAY SHORTED LOW/OPEN CIRCUIT

WHEN MONITORED
The ignition must be in the run position and battery voltage supplied to the BCM on the Fused B(+) circuit.

SET CONDITION
If the BCM cannot sense any voltage on the wiper on/off relay control circuit.

POSSIBLE CAUSES
- Junction block circuit breaker C1 open
- Verifying active DTC - wiper on/off relay control circuit shorted low/open
- Fused ignition switch output run/acc circuit open
- Fused ignition switch output circuit shorted to ground
- Fused ignition switch output run/acc circuit shorted to ground
- Common circuit shorted to ground
- High speed output shorted to ground
- Low speed output shorted to ground
- Wiper on/off relay control circuit open
- Wiper on/off relay control circuit shorted to ground
- BCM defective - wiper on/off relay circuit shorted low/open
