Wiper High/Low Relay Output Open

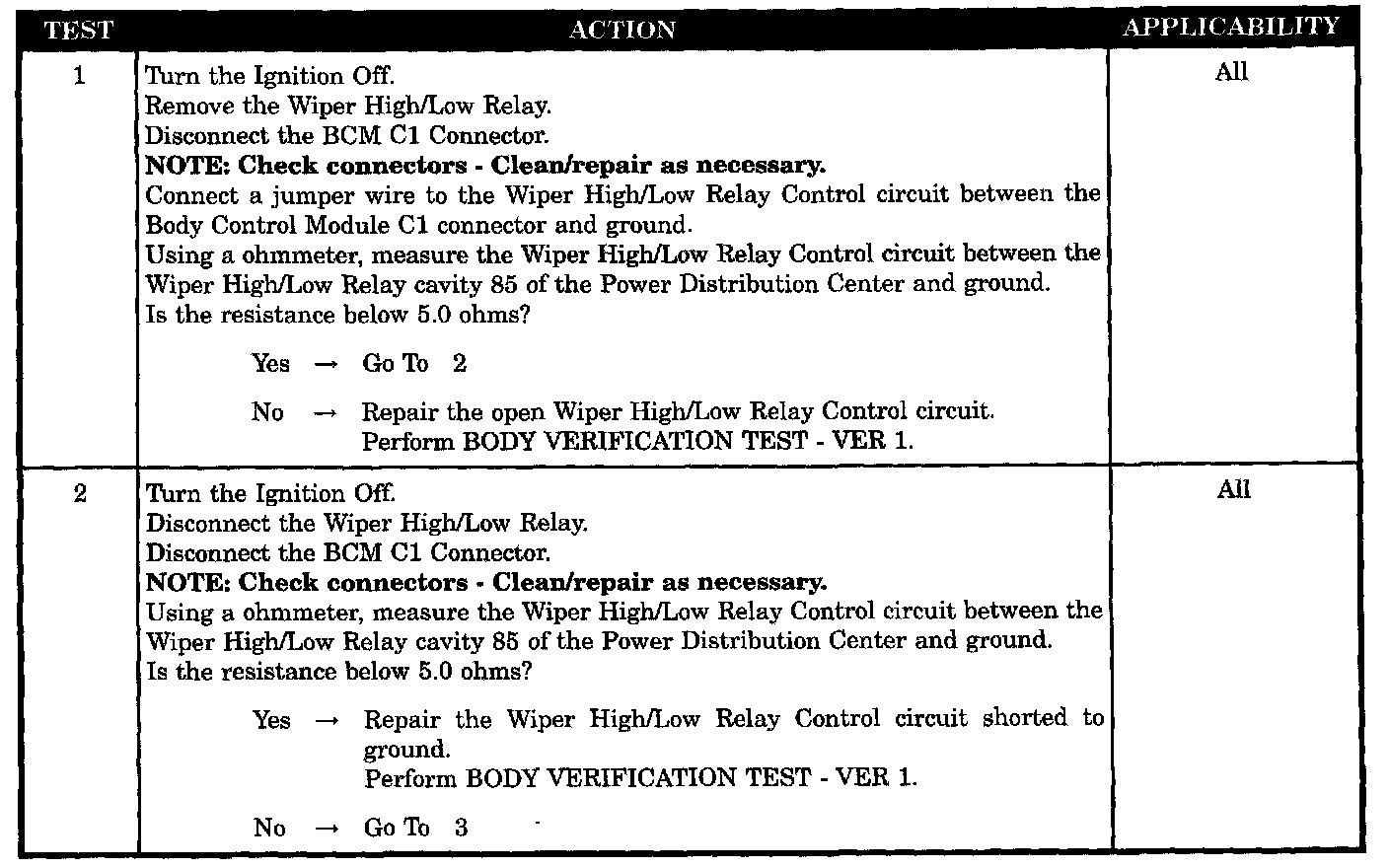

Test 1 - 2:

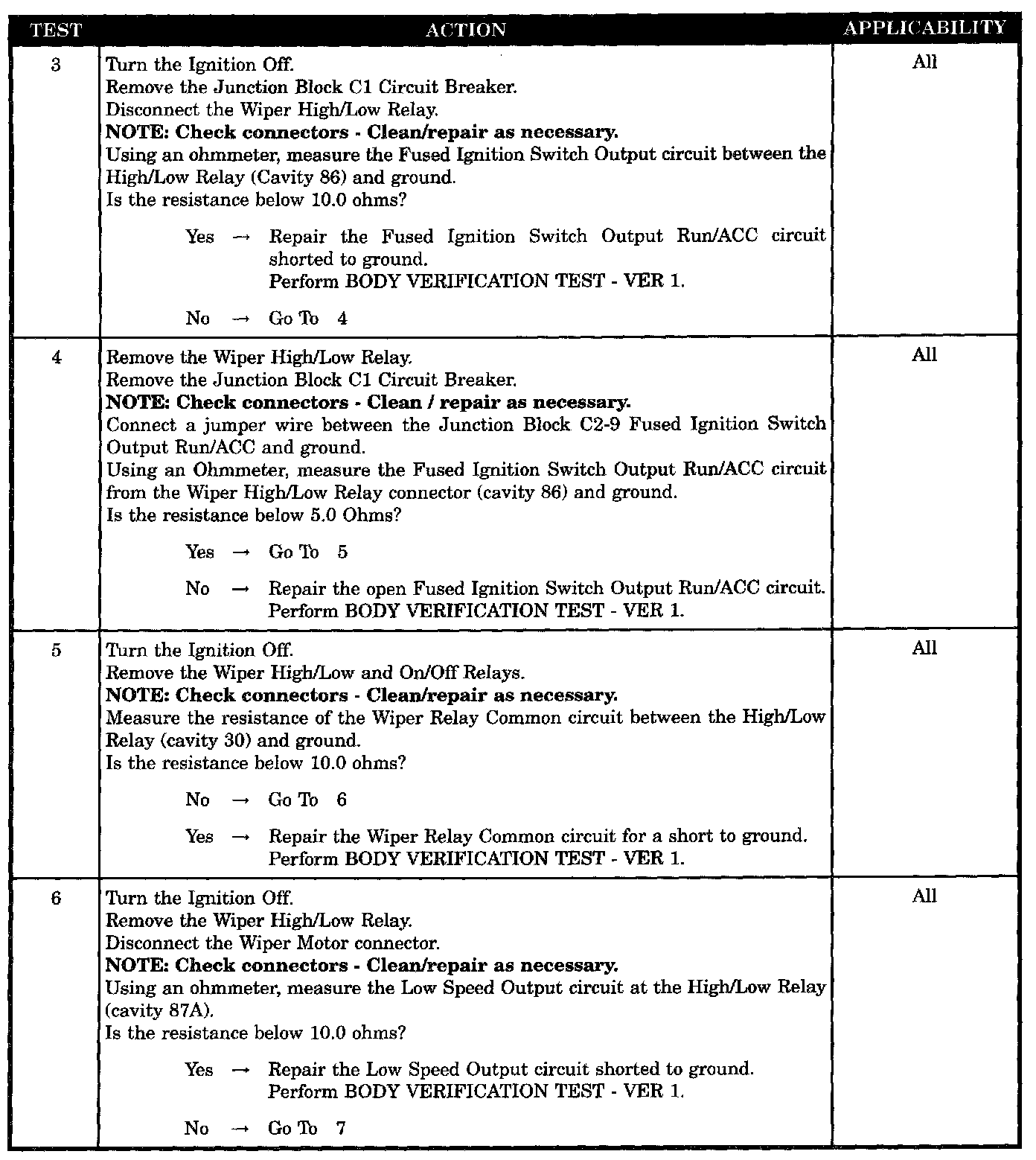

Test 3 - 6:

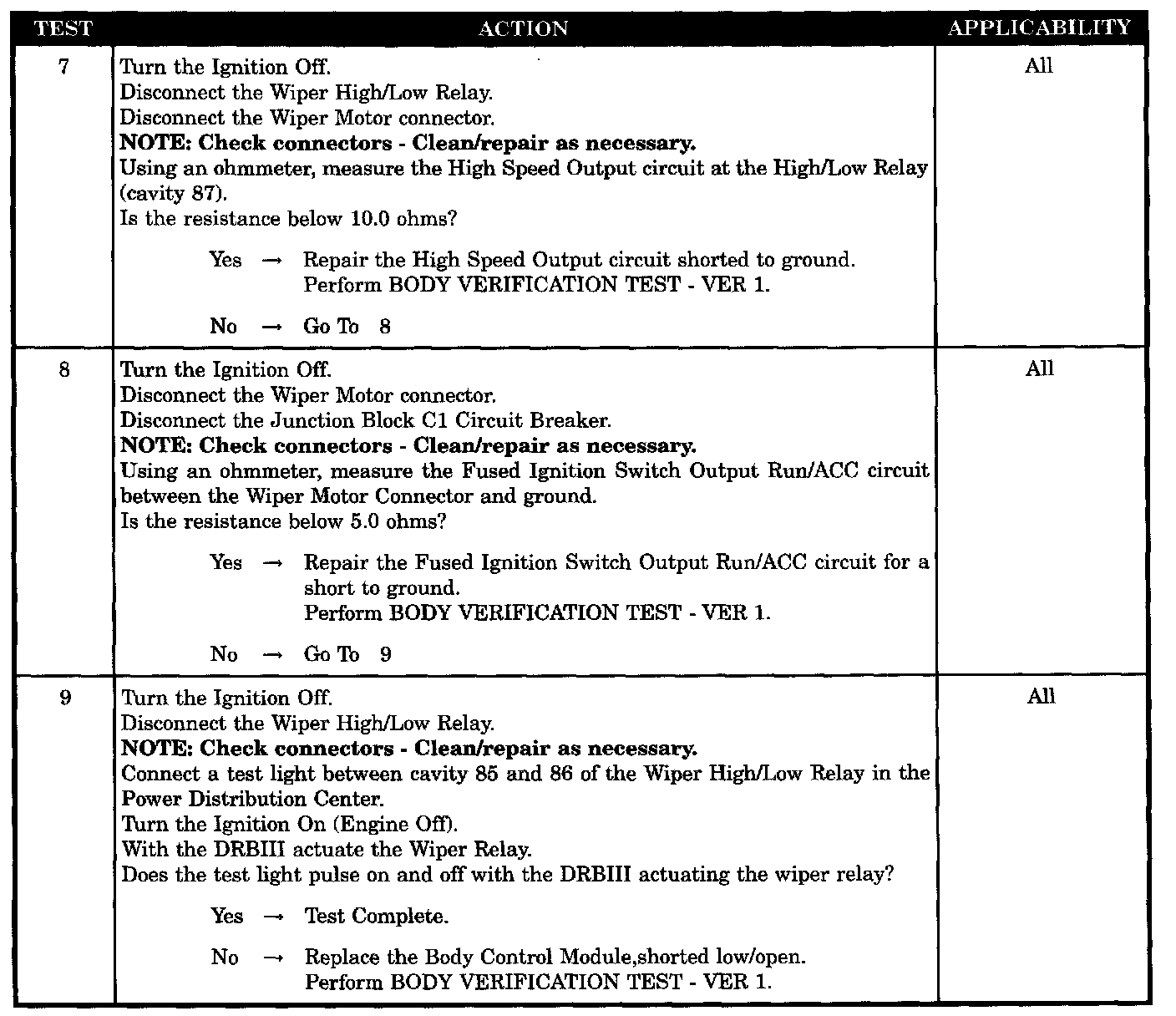

Test 7 - 9:

SYMPTOM
WIPER HIGH/LOW RELAY OUTPUT OPEN

POSSIBLE CAUSES
- Fused ignition switch output run/acc circuit open
- Fused ignition switch output circuit shorted to ground
- Fused ignition switch output run/acc circuit shorted to ground
- Common circuit shorted to ground
- High speed output shorted to ground
- Low speed output shorted to ground
- Wiper high/low relay control circuit open
- Wiper high/low relay control circuit shorted to ground
- Body control module
