PCM Status Failure

Test 1:

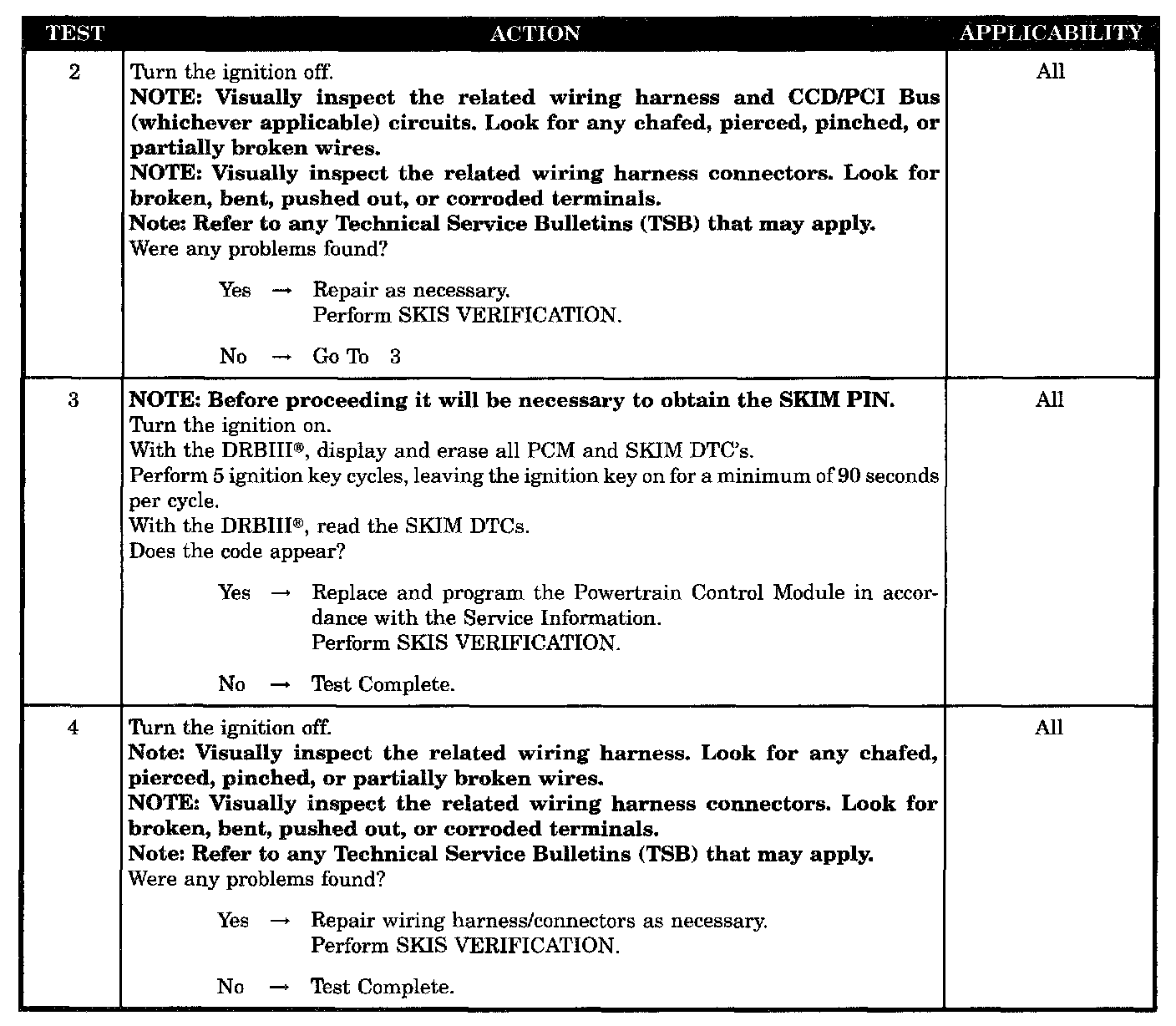

Test 2 - 4:

SYMPTOM
PCM STATUS FAILURE

WHEN MONITORED
With the ignition on.

SET CONDITION
This DTC exists when a PCM STATUS message was not received from the PCM for at least 20.0 consecutive seconds.

POSSIBLE CAUSES
- Intermittent wiring harness problem
- Wiring harness inspection
- SKIM/PCM
